Crankcase

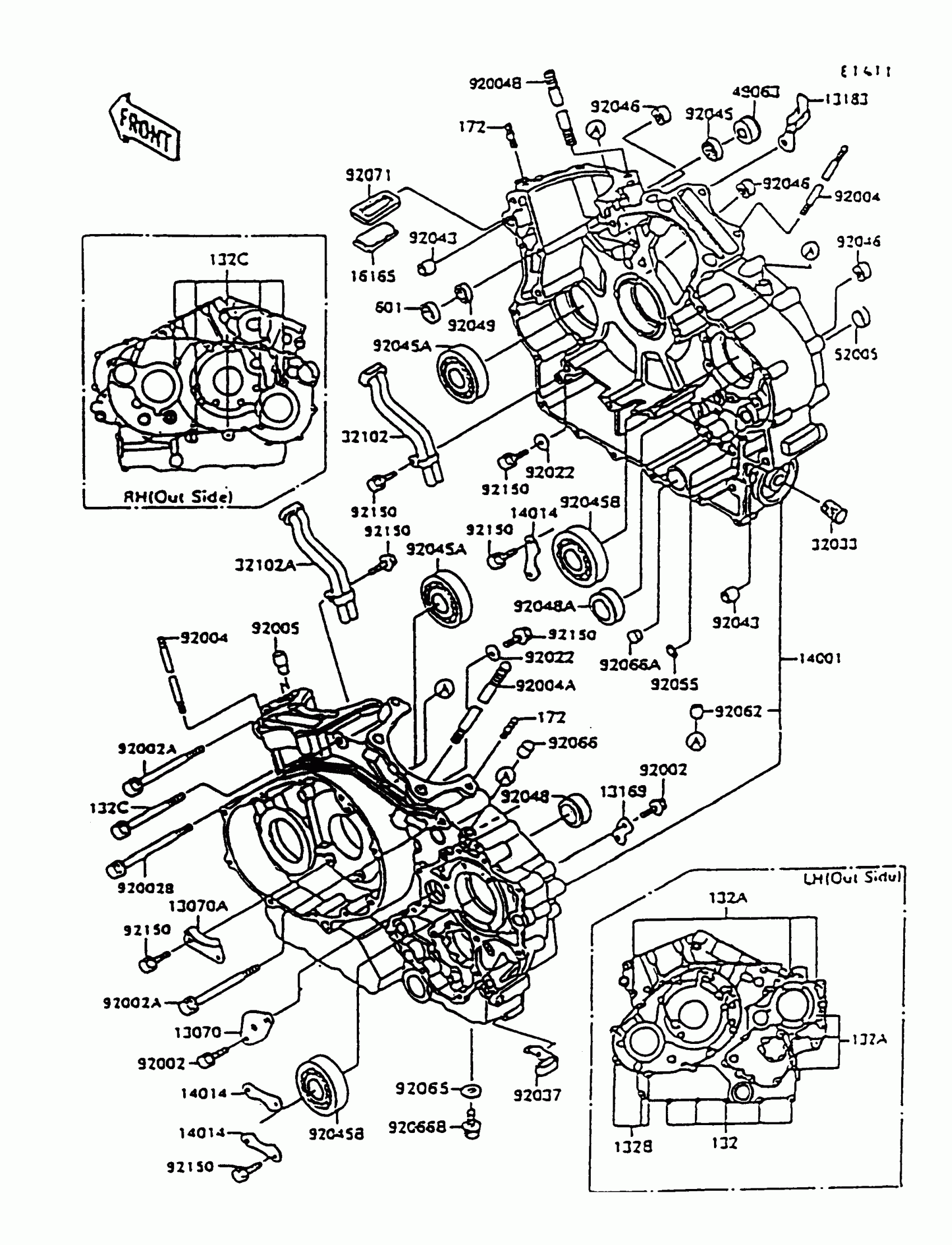

Kawasaki Vulcan 1500 Crankcase Diagram
#
132
BOLT-FLANGED-SMALL,6X40
132E0640
Unavailable
132A
BOLT-FLANGED-SMALL
132E0670
Unavailable
132B
BOLT-FLANGED-SMALL
132E0680
Unavailable
13070
GUIDE,PUSH ROD
13070-1167
Unavailable
13070A
GUIDE,CAM CHAIN
13070-1168
Unavailable
13169
PLATE,GEAR CHANGE DRUM
13169-014
Unavailable
13183
PLATE
13183-1145
Unavailable
14001
SET-CRANKCASE
14001-5232
Unavailable
14014
PLATE-POSITION
14014-1084
Unavailable
16165
SEPARATOR
16165-1058
Unavailable
32033
PIPE,OIL FILTER
32033-1535
Unavailable
32102
PIPE
32102-1407
Unavailable
32102A
PIPE
32102-1708
Unavailable
49063
SEAL-MECHANICAL
49063-1052
Unavailable
52005
GAUGE,OIL LEVEL
52005-1009
Unavailable
92002
BOLT,6X16
92002-1439
Unavailable
92002A
BOLT,10X105
92002-1897
Unavailable
92002B
BOLT,10X115
92002-1898
Unavailable
92004
STUD,8X231
92004-1174
Unavailable
92004A
STUD,12X250
92004-1225
Unavailable
92004B
STUD,12X250
92004-1240
Unavailable
92005
FITTING
92005-1155
Unavailable
92022
WASHER,6X19.5X2
92022-1517
Unavailable
92037
CLAMP
92037-1925
Unavailable
92043
PIN,11X14X12.3
92043-1266
Unavailable
92045
BEARING-BALL,6001JRXLLU/5K
92045-1151
Unavailable
92045A
BEARING-BALL,63/28
92045-1189
Unavailable
92045B
BEARING-BALL,6306SH2
92045-1190
Unavailable
92046
BEARING-NEEDLE,HK1212
92046-1163
Unavailable
92048
RACE
92048-1069
Unavailable
92048A
RACE
92048-1070
Unavailable
92049
SEAL-OIL,SC 12X22X5
92049-1228
Unavailable
92055
RING-O,13.2X2.4
92055-1373
Unavailable
92062
NOZZLE,6X8,GREEN
92062-1078
Unavailable
92065
GASKET,12X22X2
92065-097
Unavailable
92066
PLUG,OIL LINE,7.2X8
92066-1012
Unavailable
92066A
PLUG
92066-1110
Unavailable
92066B
PLUG,OIL DRAIN,12X15
92066-1174
Unavailable
92071
GROMMET,SEPARATOR
92071-1153
Unavailable
92150
BOLT,6X12
92150-1868
Unavailable
132C
BOLT-FLANGED-SMALL
132E0890
Unavailable
172
BOLT-STUD,8X25
172G0825
Unavailable
601
BEARING-BALL
601A6001
Unavailable
