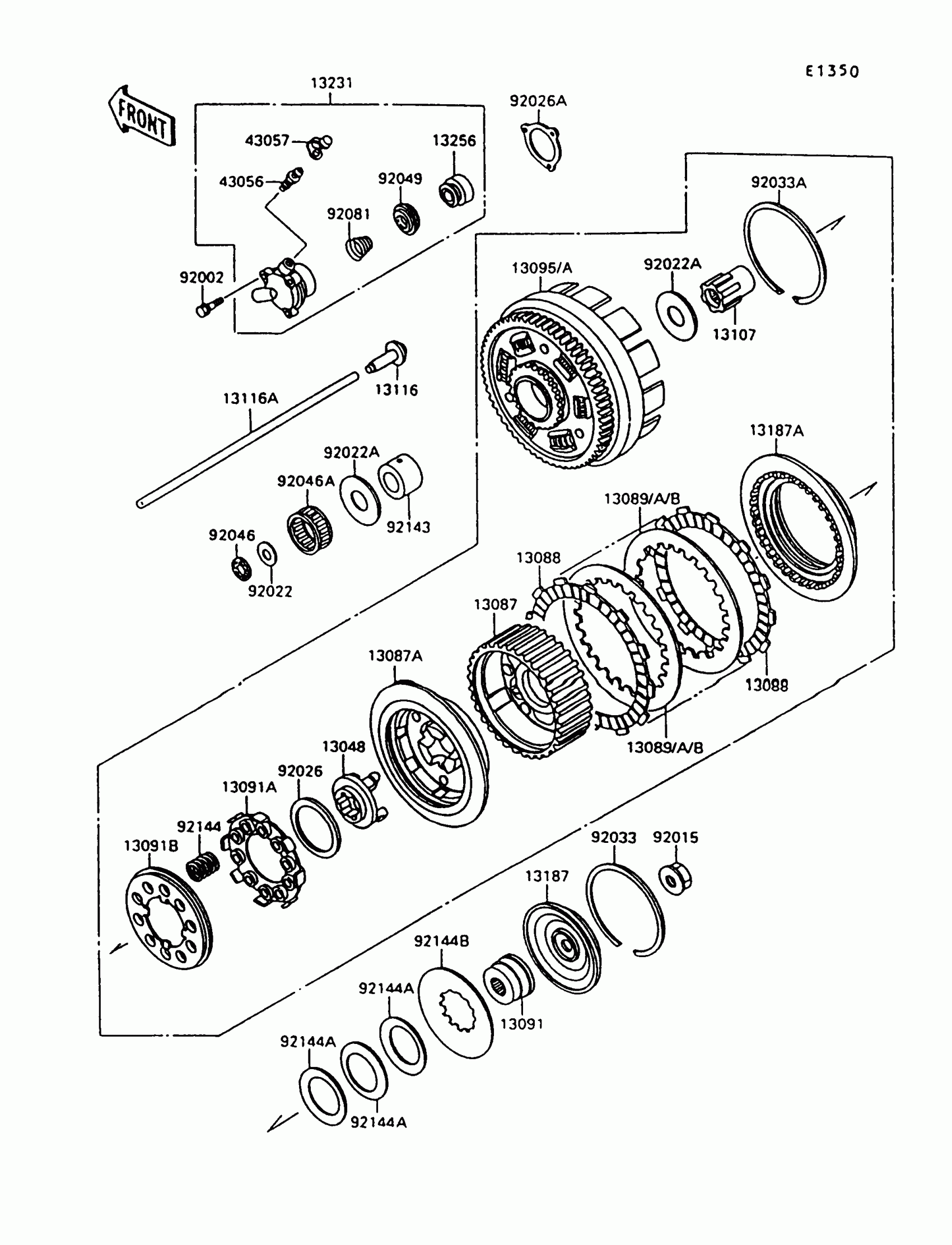

Kawasaki Vulcan 1500 Clutch Diagram
#
13048
CAM-DAMPER
13048-1007
Unavailable
13087
HUB-CLUTCH,OUTER
13087-1103
Unavailable
13087A
HUB-CLUTCH,INNER
13087-1110
Unavailable
13088
PLATE-FRICTION
13088-1018
Unavailable
13089
PLATE-CLUTCH,T=2.0
13089-1075
Unavailable
13089A
PLATE-CLUTCH,T=1.6
13089-1080
Unavailable
13089B
PLATE-CLUTCH,T=2.3
13089-1081
Unavailable
13091
HOLDER,CLUTCH SPRING
13091-1494
Unavailable
13091A
HOLDER,DAMPER SPRING
13091-1495
Unavailable
13091B
HOLDER,DAMPER SPRING
13091-1496
Unavailable
13095A
HOUSING-COMP-CLUTCH
13095-1342
Unavailable
13107
SHAFT,CLUTCH CAM DAMPER
13107-1237
Unavailable
13116
ROD-PUSH,CLUTCH
13116-1102
Unavailable
13116A
ROD-PUSH
13116-1132
Unavailable
13187
PLATE-CLUTCH OPERATING
13187-1063
Unavailable
13187A
PLATE-CLUTCH OPERATING
13187-1066
Unavailable
13231
RELEASE-ASSY-CLUTCH
13231-1064
Unavailable
13256
PISTON
13256-1052
Unavailable
43056
BREATHER
43056-1055
Unavailable
43057
CAP-BREATHER
43057-1001
Unavailable
92002
BOLT,6X25
92002-1612
Unavailable
92015
NUT,20MM
92015-1461
Unavailable
92022
WASHER,15.1X29X1.0
92022-1463
Unavailable
92022A
WASHER,25.3X56X2.0
92022-1857
Unavailable
92026
SPACER,59X70X3.5
92026-1043
Unavailable
92026A
SPACER,CLUTCH RELEASE
92026-1263
Unavailable
92033
RING-SNAP
92033-1238
Unavailable
92033A
RING-SNAP
92033-1239
Unavailable
92046
BEARING-NEEDLE,AXK1102
92046-1052
Unavailable
92046A
BEARING-NEEDLE,RS40/29A
92046-1175
Unavailable
92049
SEAL-OIL,PISTON
92049-1165
Unavailable
92081
SPRING,CLUTCH RELEASE
92081-1644
Unavailable
92143
COLLAR,INPUT SHAFT
92143-1076
Unavailable
92144
SPRING,DAMPER
92144-1187
Unavailable
92144A
SPRING,LIMITER
92144-1188
Unavailable
92144B
SPRING,CLUTCH
92144-1295
Unavailable
