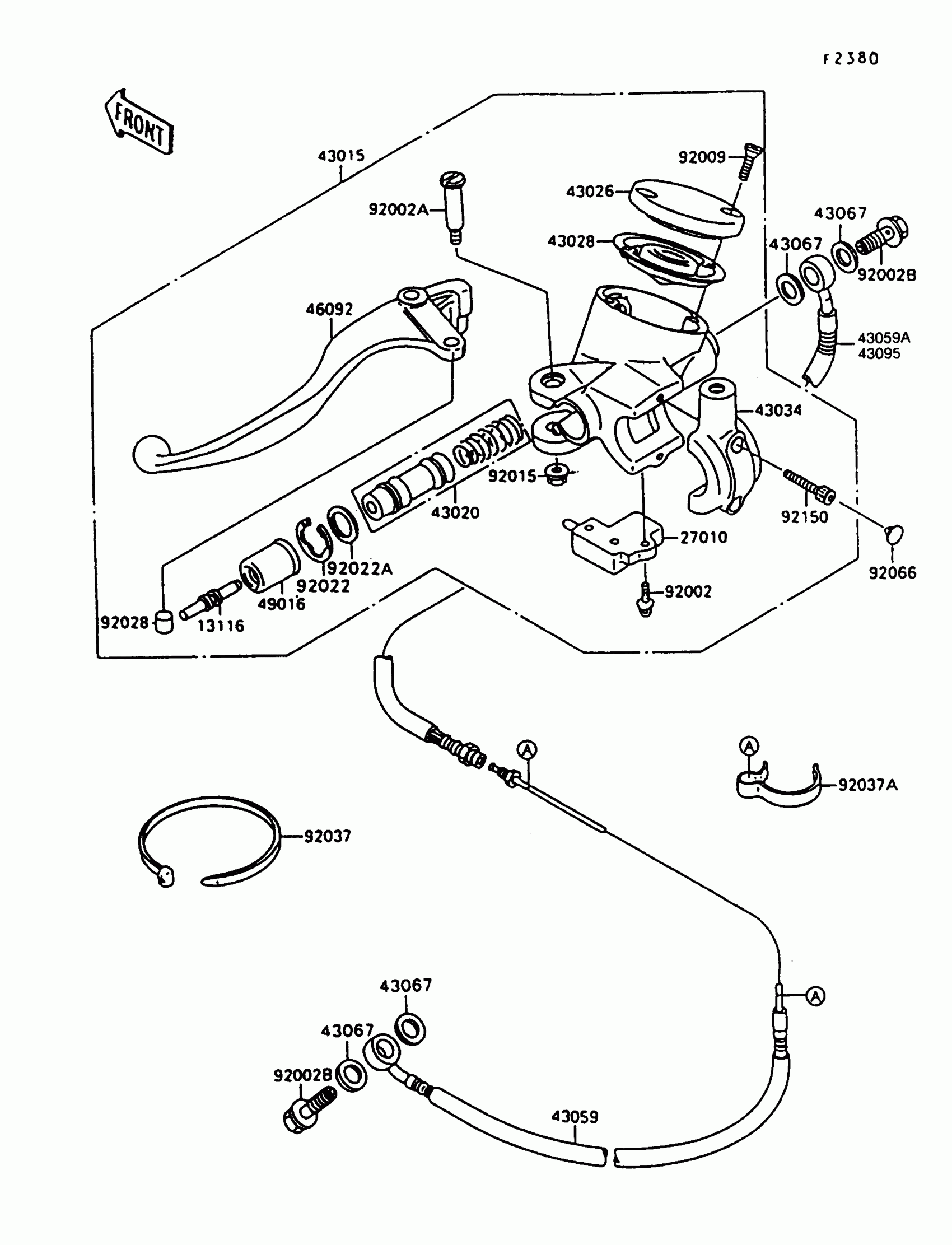

Kawasaki Vulcan 1500 Clutch Master Cylinder Diagram

#

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

Unavailable

27010

SWITCH,CLUTCH

27010-1171

Unavailable

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1514

Unavailable

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

Unavailable

43026

CAP-BRAKE,SILVER

43026-1078

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

Unavailable

43034

HOLDER-BRAKE,SILVER

43034-1102

Unavailable

43059

HOSE-BRAKE,CLUTCH

43059-1393

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

Unavailable

43095

HOSE-BRAKE,CLUTCH

43095-1078

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1173

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

Unavailable

92002

SCREW,4X16

92002-1325

Unavailable

92002A

BOLT,LEVER SET

92002-1561

Unavailable

92002B

BOLT,OIL,L=23

92002-1888

Unavailable

92009

SCREW,5MM

92009-1440

Unavailable

92015

NUT,FLANGED,6MM

92015-1528

Unavailable

92022

CIRCLIP

92022-1605

Unavailable

92022A

WASHER,PISTON

92022-1606

Unavailable

92028

BUSHING,MASTER CYLINDER

92028-1310

Unavailable

92037

CLAMP

92037-1173

Unavailable

92037A

CLAMP,HOSE

92037-1552

Unavailable

92066

PLUG

92066-1301

Unavailable

92150

BOLT,SOCKET,6MM

92150-1025

Unavailable
