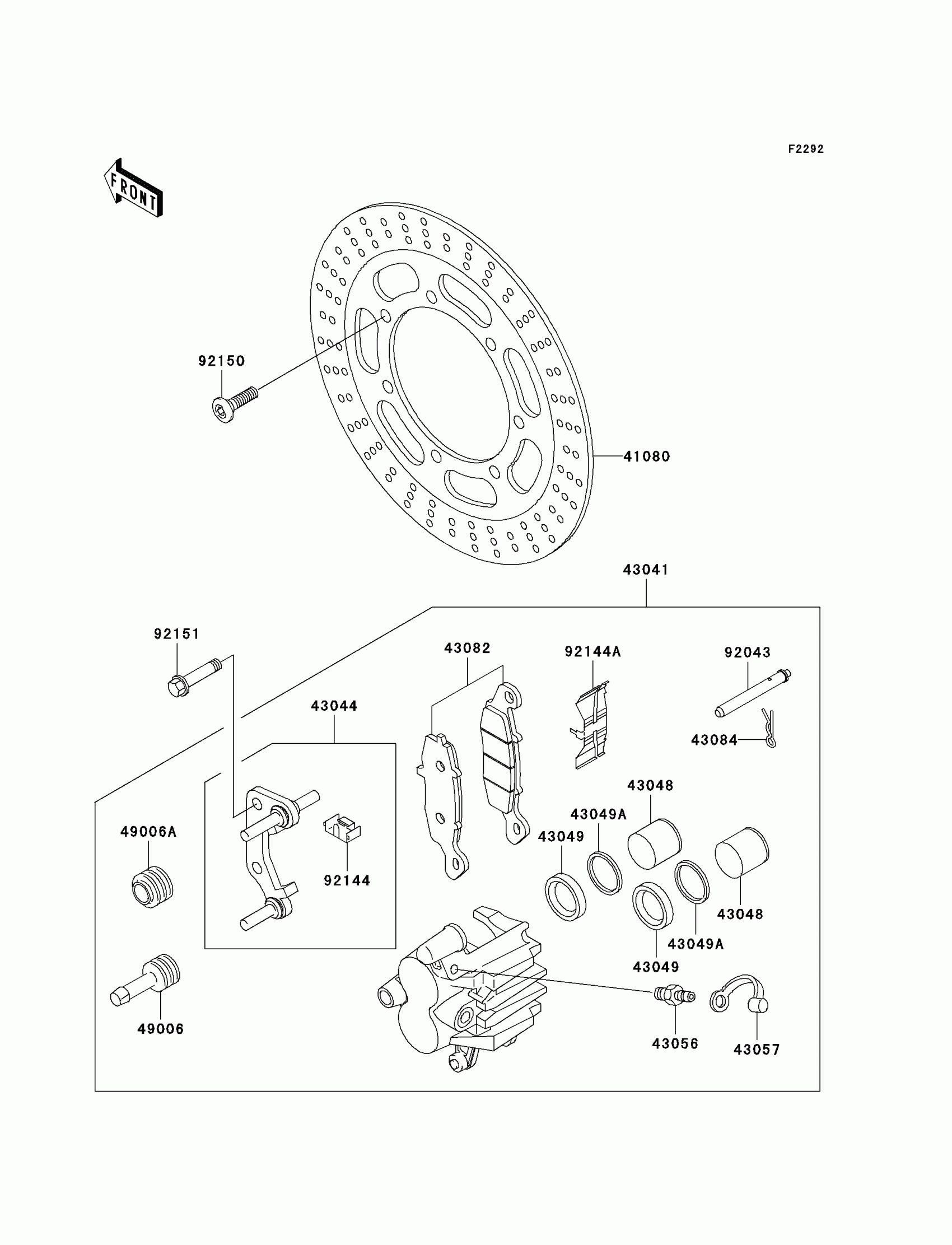

Kawasaki Vulcan 1500 Classic Fi Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1494-CM

$482.56

43041

CALIPER-ASSY,FR,LH,SILVER

43041-1824-GN

$560.44

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1117

Unavailable

43048

PISTON-CALIPER

43048-1073

$58.51

43049

PACKING,PISTON SEAL

43049-1067

$7.91

43049A

PACKING

43049-1068

$7.48

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1234

$60.25

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,STOPPER

92144-1831

$4.14

92144A

SPRING,PAD,LH

92144-1832

$24.71

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92151

BOLT,FLANGED,10X47

92151-1321

$4.88
