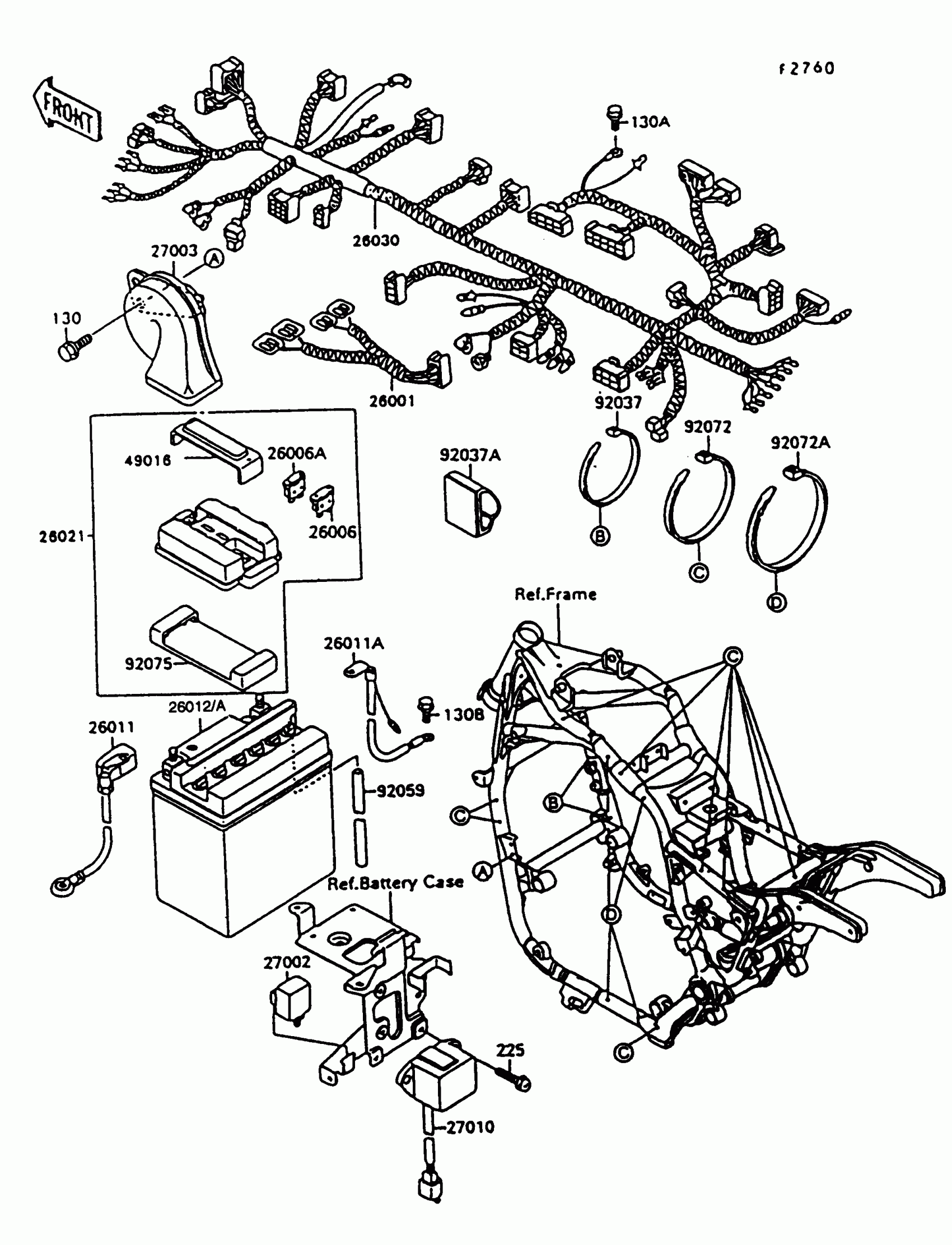

Kawasaki Vulcan 1500 Chassis Electrical Equipment Diagram

#

Description

Price

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED

130J0610

Unavailable

130B

BOLT-FLANGED,6X10

130V0610

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

Unavailable

26001

HARNESS,IGNITION

26001-1862

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1391

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1392

Unavailable

26012A

BATTERY,Y50-N18L-A,12V 20AH

26012-1339

Unavailable

26021

JUNCTION BOX

26021-1089

Unavailable

26030

HARNESS,MAIN

26030-1331

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

Unavailable

27003

HORN,LOW TONE

27003-1264

Unavailable

27010

SWITCH,RESERVE LIGHTING

27010-1069

Unavailable

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,BAND,L=137

92037-1817

Unavailable

92037A

CLAMP,WIRING HARNESS

92037-1954

Unavailable

92059

TUBE,5X8X570

92059-1840

Unavailable

92072

BAND,L=202

92072-1195

Unavailable

92072A

BAND,L=365

92072-1197

Unavailable

92075

DAMPER,JUNCTION BOX

92075-1688

Unavailable
