Carburetor

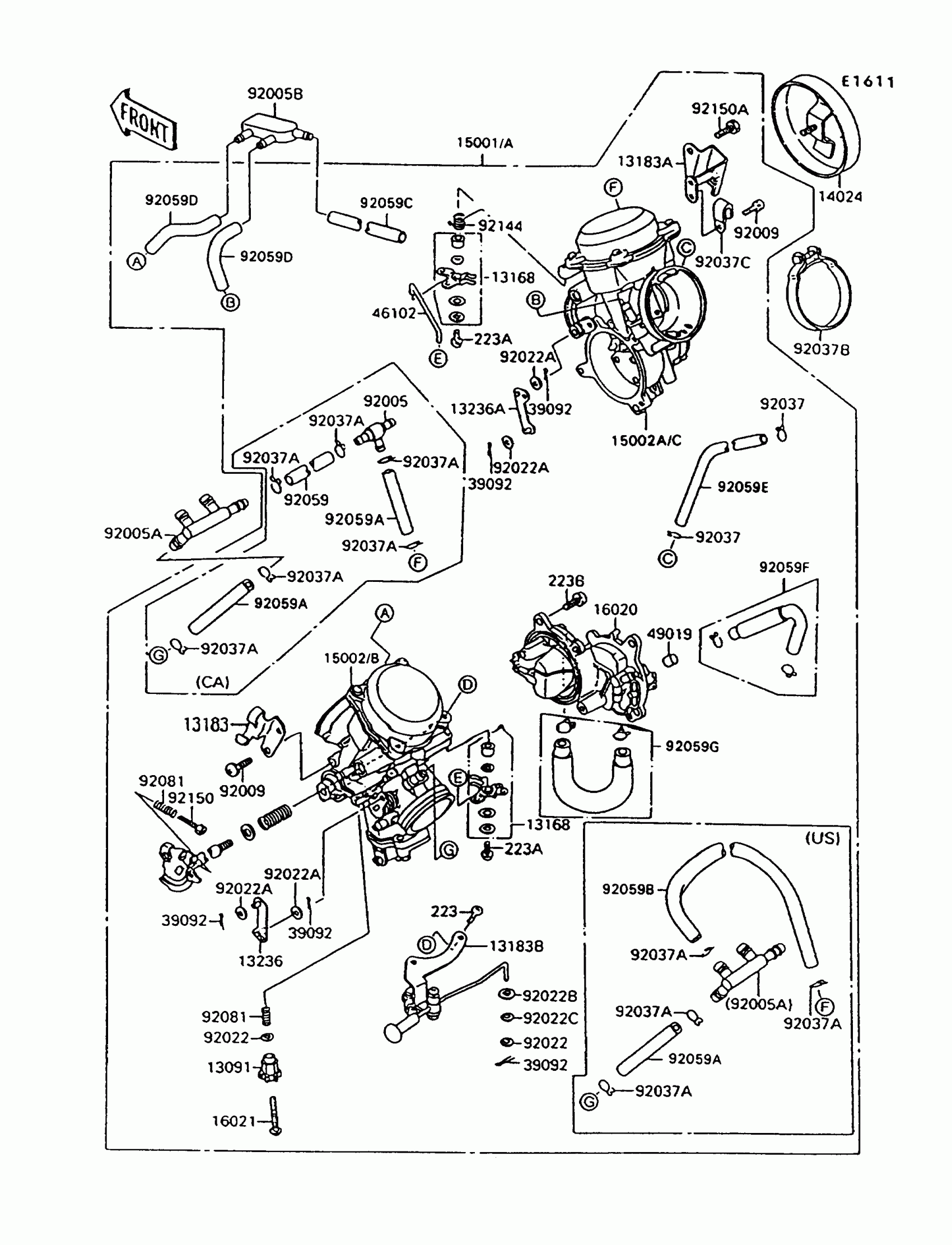

Kawasaki Vulcan 1500 Carburetor Diagram
#
13091
HOLDER,THROTTLE STOP SCREW
13091-1382
Unavailable
13168
LEVER,STARTER
13168-1384
Unavailable
13183
PLATE,THROTTLE CABLE
13183-1213
Unavailable
13183A
PLATE,COVER
13183-1215
Unavailable
13183B
PLATE,STARTER
13183-1244
Unavailable
13236
LEVER-COMP,LINK,RR
13236-1165
Unavailable
13236A
LEVER-COMP,LINK,FR
13236-1166
Unavailable
14024
COVER
14024-1586
Unavailable
16020
CHAMBER-FLOAT
16020-1059
Unavailable
16021
SCREW-THROTTLE STOP
16021-1122
Unavailable
39092
PIN-HAIR
39092-1051
Unavailable
46102
ROD,STARTER
46102-1232
Unavailable
49019
FILTER-FUEL
49019-1059
Unavailable
92005A
FITTING
92005-1164
Unavailable
92005B
FITTING
92005-1165
Unavailable
92009
SCREW,5X10
92009-1365
Unavailable
92022
WASHER,PLAIN,STOP SPRING
92022-1480
Unavailable
92022A
WASHER,3.1X8X0.5,POLYACETAL
92022-1676
Unavailable
92022B
WASHER,4.3X9.0X1.0,POLYACETAL
92022-1913
Unavailable
92022C
WASHER,5.0X7.5X1.0,POLYACETAL
92022-1914
Unavailable
92037
CLAMP,TUBE
92037-1142
Unavailable
92037B
CLAMP
92037-1637
Unavailable
92037C
CLAMP
92037-1958
Unavailable
223
SCREW-PAN-WS-CROS,4X20
223C0420
Unavailable
223A
SCREW-PAN-WS-CROS
223D0425
Unavailable
223B
SCREW-PAN-WS-CROS,5X12
223D0512
Unavailable
92059D
TUBE,7X11X160
92059-1883
Unavailable
92059E
TUBE,3X7X750
92059-1884
Unavailable
92059F
TUBE,5.3X10.5X190
92059-1885
Unavailable
92059G
TUBE,5.3X10.5X140
92059-1886
Unavailable
92081
SPRING,THROTTLE STOP SCREW
92081-1617
Unavailable
92144
SPRING
92144-1220
Unavailable
92150
BOLT,4X20
92150-1032
Unavailable
92150A
BOLT,10X16
92150-1033
Unavailable
15001
CARBURETOR-ASSY
15001-1336
Unavailable
15001A
CARBURETOR-ASSY
15001-1354
Unavailable
15002
CARBURETOR,RR
15002-1565
Unavailable
15002A
CARBURETOR,FR
15002-1566
Unavailable
15002B
CARBURETOR,RR
15002-1567
Unavailable
15002C
CARBURETOR,FR
15002-1568
Unavailable
92005
FITTING,FUEL,T-TYPE
92005-1112
Unavailable
92037A
CLAMP,TUBE
92037-1477
Unavailable
92037A
CLAMP,TUBE
92037-1477
Unavailable
92059
TUBE,5X9X180
92059-1377
Unavailable
92059A
TUBE,5X9X35
92059-1880
Unavailable
92059A
TUBE,5X9X35
92059-1880
Unavailable
92059B
TUBE,5X9X245
92059-1881
Unavailable
92059C
TUBE,7X11X460
92059-1882
Unavailable
