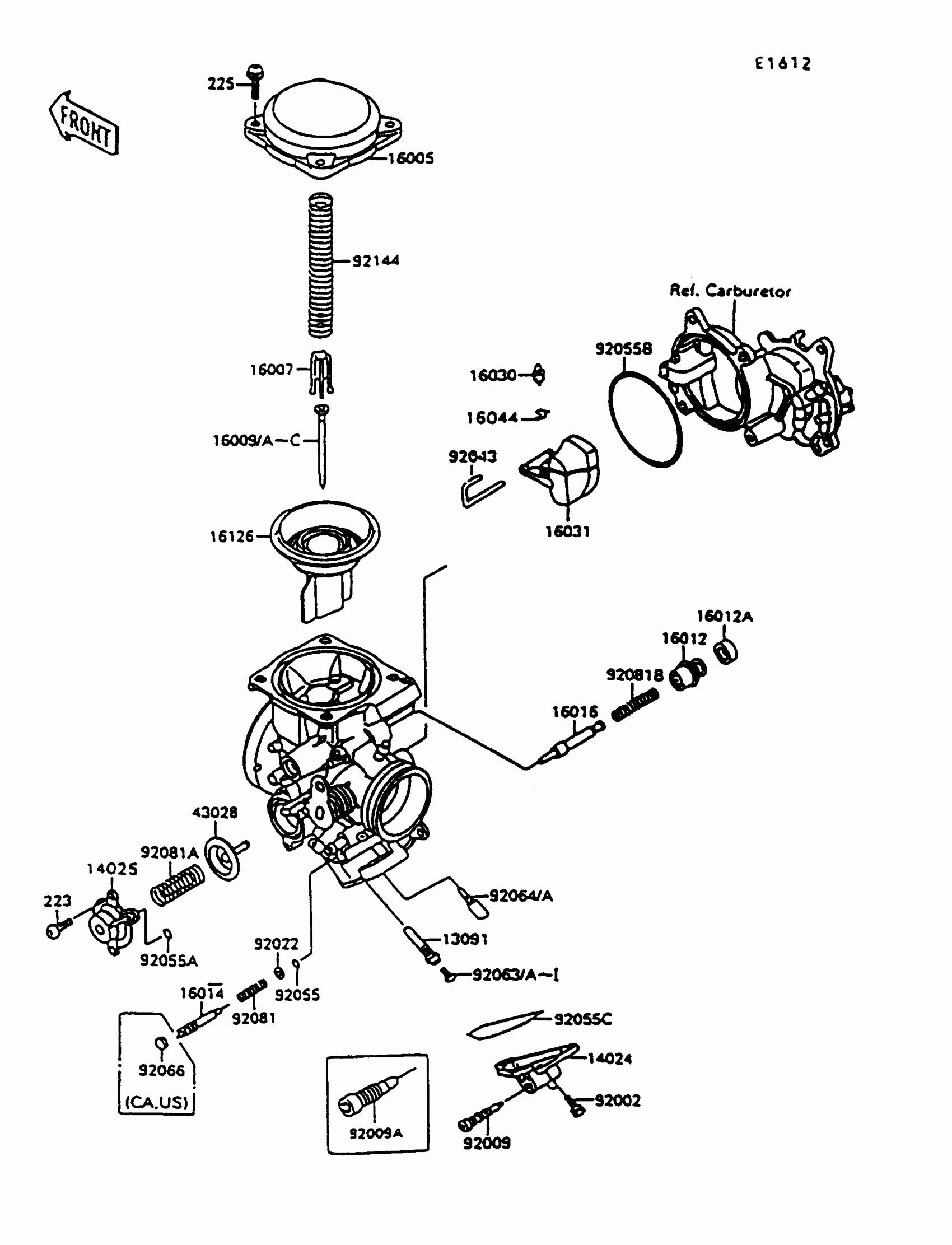

Kawasaki Vulcan 1500 Carburetor Parts Diagram

#

Description

Price

13091

HOLDER,NEEDLE JET

13091-1513

Unavailable

14024

COVER,DRAIN

14024-1608

Unavailable

14025

COVER,AIR CUT VALVE

14025-1903

Unavailable

16005

TOP-CHAMBER,MIXING

16005-1054

Unavailable

16007

SEAT-SPRING,VALVE

16007-1117

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

Unavailable

16012A

CAP-STARTER PLUNGER

16012-1052

Unavailable

16014

SCREW-PILOT AIR

16014-1054

Unavailable

16016

PLUNGER

16016-1071

Unavailable

16030

VALVE-FLOAT

16030-1007

Unavailable

16031

FLOAT

16031-1066

Unavailable

16044

CLAMP,FLOAT VALVE

16044-007

Unavailable

16126

VALVE,VACUUM

16126-1203

Unavailable

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

92002

BOLT,4X14

92002-1761

Unavailable

92009

SCREW,DRAIN,M6X1.0

92009-1434

Unavailable

92009A

SCREW,DRAIN,M6X0.75

92009-1551

Unavailable

92022

WASHER,PLAIN

92022-1003

Unavailable

92043

PIN,FLOAT

92043-1285

Unavailable

92055

RING-O,PILOT ADJUST

92055-1002

Unavailable

92055A

RING-O

92055-1245

Unavailable

92055B

RING-O

92055-1291

Unavailable

92055C

RING-O,DRAIN COVER

92055-1400

Unavailable

92063A

JET-MAIN,#118

92063-1071

Unavailable

92063B

JET-MAIN,#120

92063-1072

Unavailable

223

SCREW-PAN-WS-CROS,4X8

223D0408

Unavailable

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

92063G

JET-MAIN,#112

92063-1117

Unavailable

92063I

JET-MAIN,#115

92063-1118

Unavailable

92064

JET-PILOT,#42

92064-1135

Unavailable

92064A

JET-PILOT,#40

92064-1136

Unavailable

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

Unavailable

92081

SPRING,PILOT ADJUST SCREW

92081-1002

Unavailable

92081A

SPRING,AIR CUT VALVE

92081-1719

Unavailable

92081B

SPRING,STARTER PLUNGER

92081-1761

Unavailable

92144

SPRING,VACUUM VALVE

92144-1219

Unavailable

16009

NEEDLE-JET,RR,N53T

16009-1361

Unavailable

16009A

NEEDLE-JET,FR,N53S

16009-1362

Unavailable

16009B

NEEDLE-JET,RR,N53V

16009-1363

Unavailable

16009C

NEEDLE-JET,FR,N53U

16009-1364

Unavailable

92063

JET-MAIN,#118

92063-1071

Unavailable

92063C

JET-MAIN,#122

92063-1073

Unavailable

92063D

JET-MAIN,#110

92063-1114

Unavailable

92063E

JET-MAIN,#108

92063-1116

Unavailable

92063F

JET-MAIN,#112

92063-1117

Unavailable

92063H

JET-MAIN,#115

92063-1118

Unavailable
