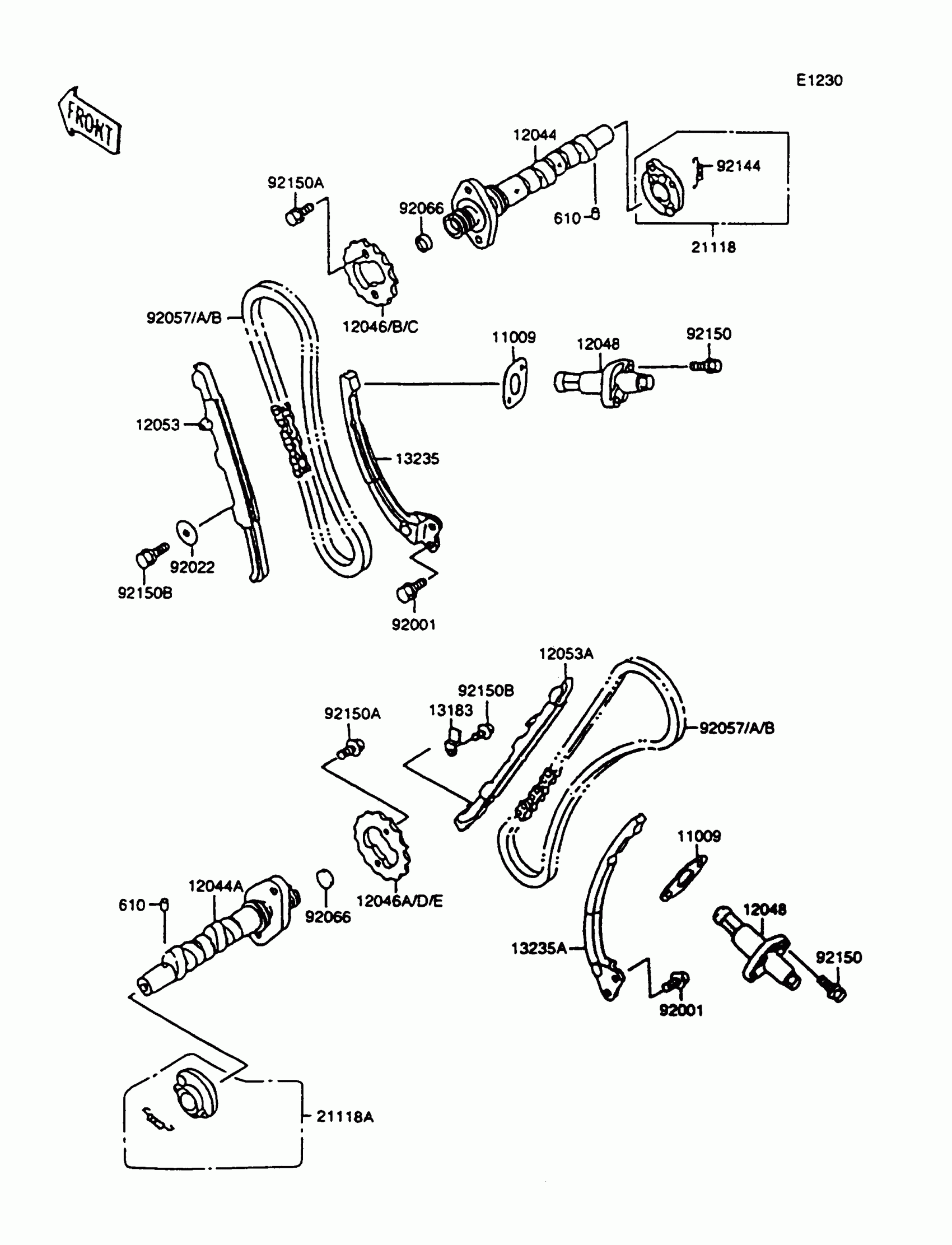

Kawasaki Vulcan 1500 Camshaft(s)/Tensioner Diagram

#

Description

Price

610

ROLLER,4X6

610A0406

Unavailable

11009

GASKET,TENSIONER

11009-1858

Unavailable

12044

CAMSHAFT-VALVE,FR

12044-1200

Unavailable

12044A

CAMSHAFT-VALVE,RR

12044-1201

Unavailable

12046B

SPROCKET,CAMSHAFT,FR,46T

12046-1175

Unavailable

12046D

SPROCKET,CAMSHAFT,RR,46T

12046-1176

Unavailable

12048

TENSIONER-ASSY

12048-1088

Unavailable

12053

GUIDE-CHAIN,FR,TENSIONER

12053-1219

Unavailable

12053A

GUIDE-CHAIN,RR,TENSIONER

12053-1221

Unavailable

13183

PLATE

13183-1096

Unavailable

13235

GUIDE-COMP

13235-1060

Unavailable

13235A

GUIDE-COMP

13235-1061

Unavailable

21118

DECOMPRESSOR,FR

21118-1061

Unavailable

21118A

DECOMPRESSOR,RR

21118-1083

Unavailable

92001

BOLT,6X16

92001-1457

Unavailable

92022

WASHER,7X27X1.6

92022-227

Unavailable

92057A

CHAIN,CAM,92RH2010

92057-1422

Unavailable

92066

PLUG

92066-1198

Unavailable

92144

SPRING,DECOMPRESSOR

92144-1209

Unavailable

92150

BOLT,6X20

92150-1056

Unavailable

92150A

BOLT,FLANGED,6X11

92150-1725

Unavailable

92150B

BOLT,6X12

92150-1868

Unavailable
