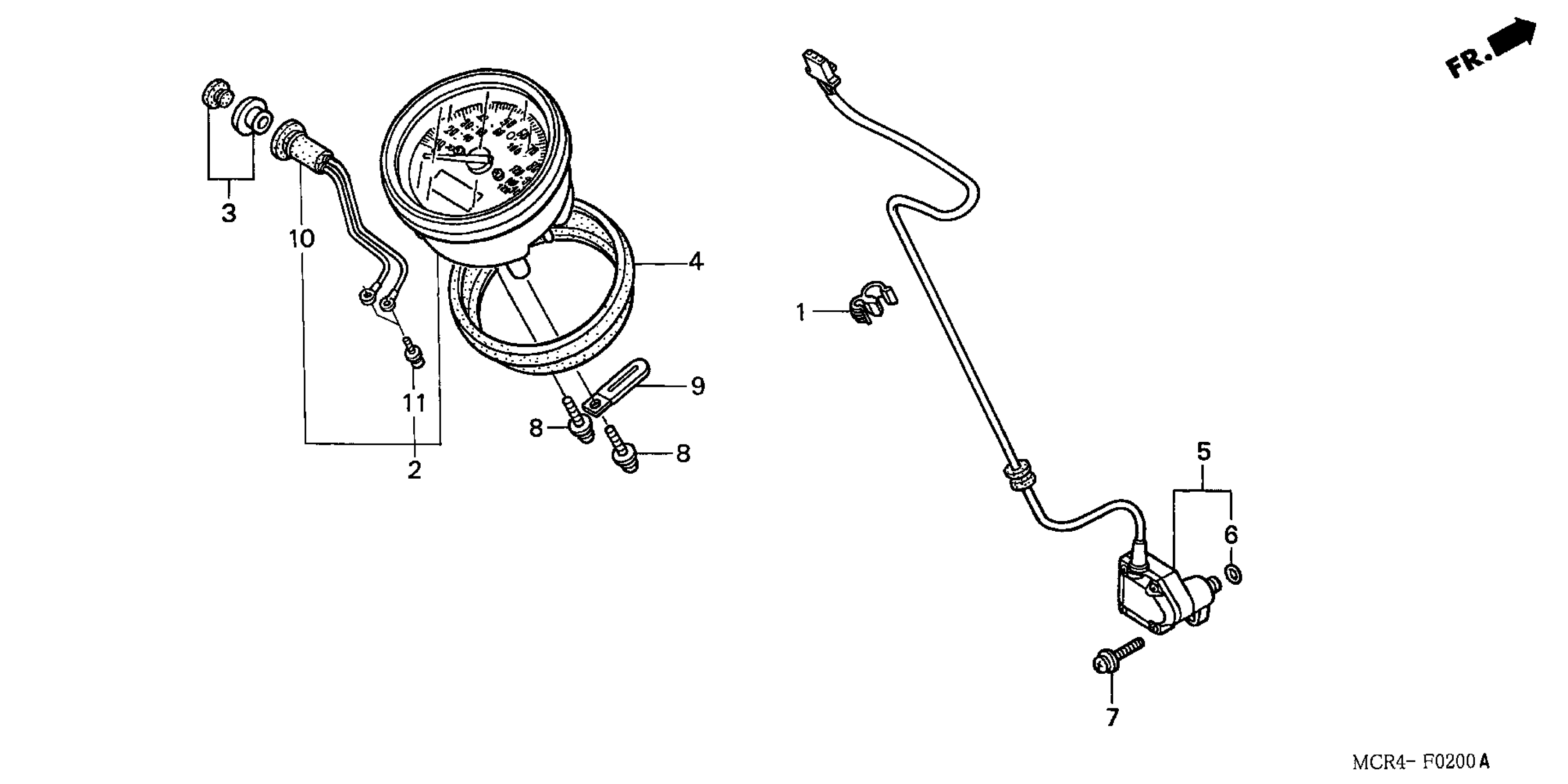

Honda VT750DCBAC (03) SHADOW SPIRIT 750, JPN, VIN# JH2RC448-3M700001 TO JH2RC448-3M799999 SPEEDOMETER Diagram

#

Description
Price

1

CLAMP, PIPE

17368-KV7-671

$2.25

2

SPEEDOMETER ASSY. (MPH/KPH) This part replaces 37200-MCR-A01.

37200-MCR-A02

Unavailable

2

SPEEDOMETER ASSY. (MPH/KPH)

37200-MCR-A02

Unavailable

3

CAP, RESET SWITCH

37215-MBA-611

$8.38

4

CUSHION, RUBBER

37235-MCL-000

$8.20

5

SENSOR ASSY., SPEED

37700-MBA-611

$130.26

6

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$2.99

6

O-RING (6.8X1.9)

91306-PJ4-000

$2.99

6

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$2.99

7

SCREW-WASHER (5X20)

93891-05020-07

$0.65

8

SCREW-WASHER (4X10)

93893-04010-00

$1.31

8

SCREW-WASHER (4X10) This part replaces 93893-04010-10.

93893-04010-00

$1.31

9

CLIP (4X40)

94591-44000

$2.23

10

SWITCH ASSY., RESET

37205-MCL-003

$19.03

11

SCREW-WASHER (3X18)

90133-SL9-003

$8.38
