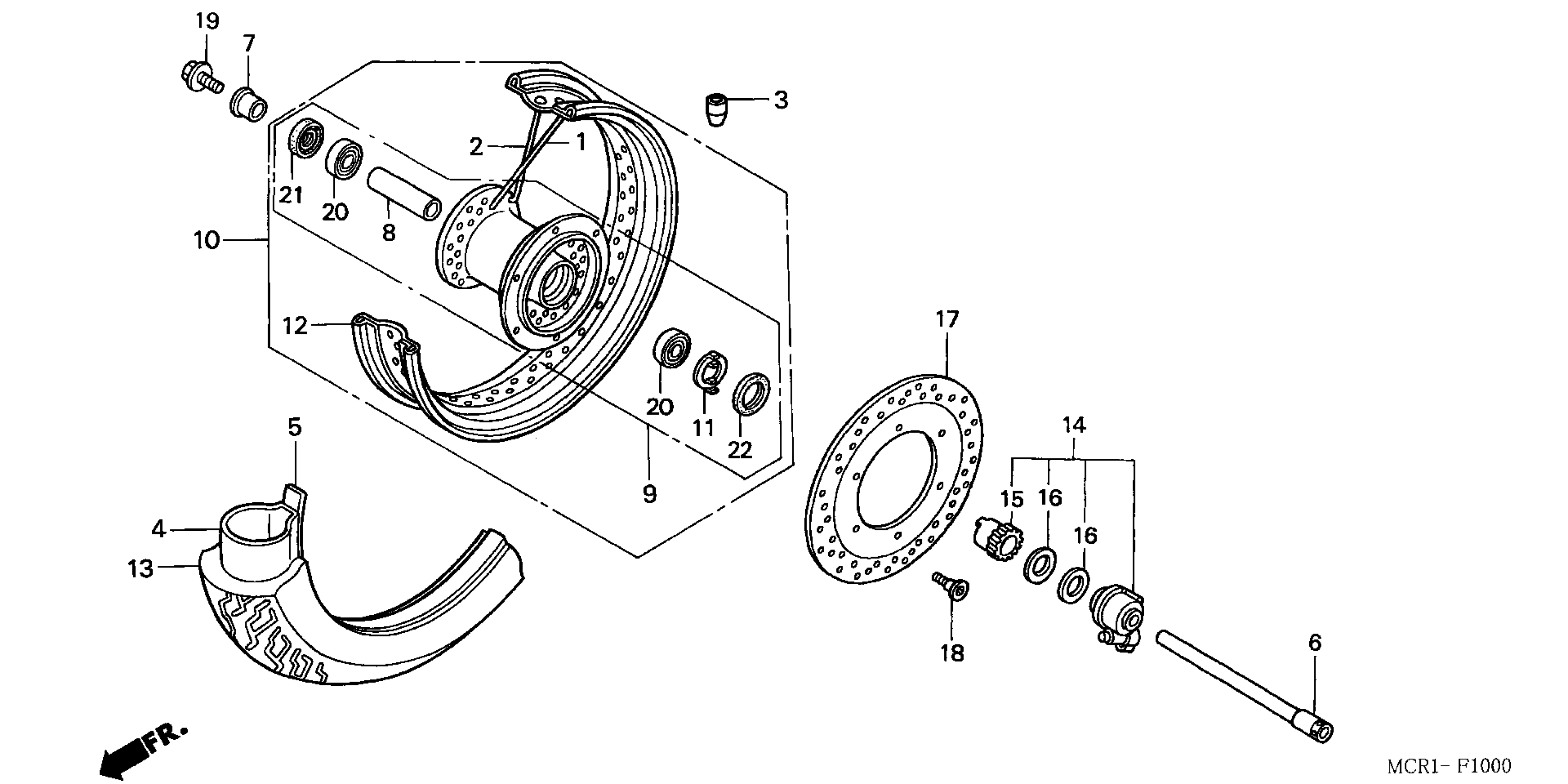

Honda VT750DCBAC (03) SHADOW SPIRIT 750, JPN, VIN# JH2RC448-3M700001 TO JH2RC448-3M799999 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET A, FR. (INSIDE)

06440-MCL-000

$5.05

2

SPOKE SET B, FR. (OUTSIDE)

06441-MCL-000

$5.05

3

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.04

3

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.04

3

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$8.04

3

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$8.04

4

TUBE, TIRE (DUNLOP) This part replaces 42712-KZ3-601.

44712-MR6-671

$36.88

4

TUBE, TIRE (DUNLOP) This part replaces 44712-MR1-671.

44712-MR6-671

$36.88

4

TUBE, TIRE (DUNLOP)

44712-MR6-671

$36.88

5

FLAP, TIRE (DUNLOP)

42713-KZ3-611

$5.88

5

FLAP, TIRE (BS)

44713-MR1-671

$7.29

6

AXLE, FR. WHEEL

44301-MAH-671

$63.45

7

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$18.92

8

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$16.35

9

HUB SUB-ASSY., FR. | Use up to Frame SN 3M700480 This part replaces 44635-MBA-000.

44635-MBA-010

$238.43

9

HUB SUB-ASSY., FR.

44635-MBA-010

$238.43

10

WHEEL SUB-ASSY., FR. | Use up to Frame SN 3M700480 This part replaces 44650-MCL-000.

44650-MCL-020

Unavailable

10

WHEEL SUB-ASSY., FR. This part replaces 44650-MCL-010.

44650-MCL-020

Unavailable

10

WHEEL SUB-ASSY., FR.

44650-MCL-020

Unavailable

11

RETAINER, GEAR BOX

44680-ML7-000

$5.21

12

RIM, FR. (2.15X19) This part replaces 44701-MCL-003.

44701-MCL-023

Unavailable

12

RIM, FR. (2.15X19) This part replaces 44701-MCL-013.

44701-MCL-023

Unavailable

13

TIRE, FR. (110/80-19) (M/C 59S) (BS)

44711-MCL-013

$217.68

13

TIRE,FR(DUN) This part replaces 44711-MCL-014.

44711-MCL-034

Unavailable

13

TIRE,FR(DUN) This part replaces 44711-MCL-024.

44711-MCL-034

Unavailable

14

BOX ASSY., SPEEDOMETER GEAR

44800-MR1-003

$106.59

15

GEAR, SPEEDOMETER

44806-MR1-003

$29.74

16

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$3.07

17

DISK, FR. BRAKE This part replaces 45351-MBA-000.

45351-MGR-670

$374.16

17

DISK, FR. BRAKE

45351-MGR-670

$374.16

18

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.18

18

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.18

19

BOLT, FR. AXLE

90305-ML7-000

$9.41

20

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MBC-004.

91052-MAE-004

$26.30

21

OIL SEAL (28X47.2X7) (ARAI) | Use up to Frame SN 3M700480 This part replaces 91252-MC4-003.

91252-MC4-013

$6.94

21

OIL SEAL (28X47.2X7) (ARAI) | Use from Frame SN 3M700481

91252-MC4-013

$6.94

22

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.31
