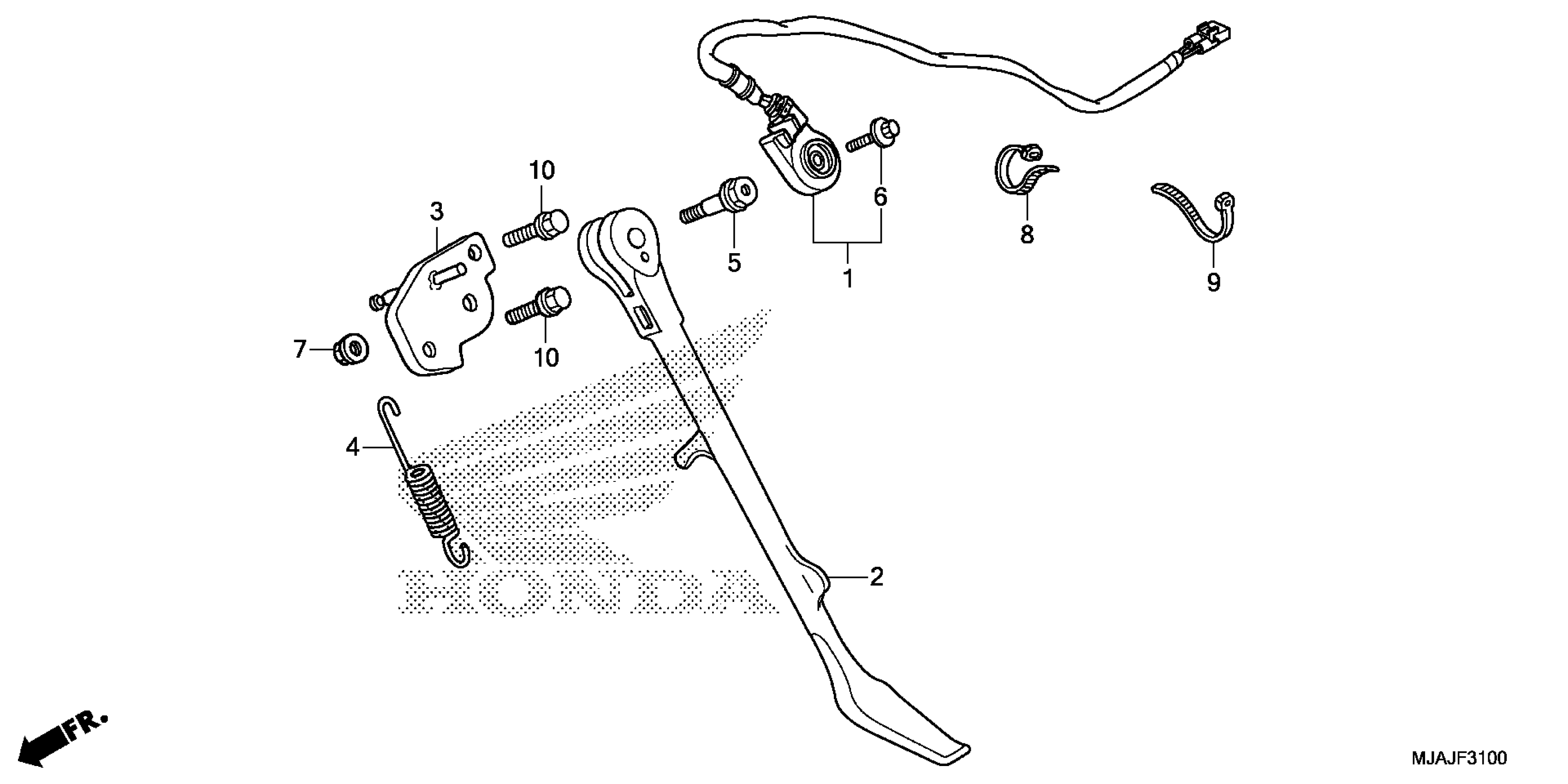

Honda VT750CAC (18) MOTORCYCLE, JPN, VIN# JH2RC501-JK400001 TO JH2RC501-JK499999 SIDE STAND Diagram

#

Description

Price

1

SWITCH SET, SIDE STAND

35070-MFE-640

$61.15

2

BAR, SIDE STAND (COO) This part replaces 50530-MEG-000.

50530-MEG-305

$98.48

3

BRACKET, SIDE STAND

50535-MBA-000

$16.98

4

SPRING, SIDE STAND

50541-KV3-830

$7.62

5

BOLT, SIDE STAND PIVOT | Use from Frame SN JK400015.

90108-MKC-A00

$5.88

5

BOLT, SIDE STAND PIVOT | Use up to Frame SN JK400014.

90108-MR5-000

$7.96

6

BOLT, SPECIAL (6X16)

90147-MCE-950

$0.54

7

NUT, SIDE STAND | Use up to Frame SN JK400014.

90203-MF9-710

$3.64

7

NUT, SIDE STAND | Use from Frame SN JK400015.

90303-MKC-A00

$3.14

8

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.10

9

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.60

10

BOLT, FLANGE (10X25)

95701-10025-07

$1.37
