Description

Price

1

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$6.12

2

RADIATOR (COO)

19010-MFE-305

$477.25

2

RADIATOR (COO) This part replaces 19010-MFE-641.

19010-MFE-305

$477.25

3

NUT, SETTING (6MM)

19014-KEA-003

$3.08

4

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$51.98

5

CLIP, HARNESS (T.RAD)

19017-PK1-004

$9.32

6

MOTOR ASSY., FAN

19030-MFE-641

$249.52

7

GRILLE, RADIATOR

19032-MEG-000

$58.52

8

CAP, RADIATOR

19037-GEE-710

$28.96

9

FAN, COOLING (TOYO)

19040-MF5-751

$61.11

10

LABEL, RADIATOR CAP

19046-PAA-A00

$3.54

11

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$5.03

12

HOSE, BYPASS

19071-MFE-640

$23.08

13

TANK, RESERVE

19101-MEG-000

$29.09

14

HOSE, RESERVE TANK

19102-MEG-000

$8.42

15

CAP, THERMOSTAT

19103-MBA-000

$47.57

16

CAP, RESERVE TANK

19104-MB0-700

$11.66

17

STAY, THERMOSTAT CASE

19105-MFE-640

$4.06

18

NECK, FILLER

19106-MFE-641

$31.54

19

HOSE, RADIATOR (UPPER)

19107-MFE-640

$9.45

20

HOSE, FR. OUTLET WATER

19108-MFE-640

$10.92

21

HOSE, RR. OUTLET WATER

19110-MFE-640

$13.17

22

MOUNT, RADIATOR (LOWER)

19112-MF5-840

$5.09

23

HOSE A, RADIATOR (LOWER)

19115-MEG-A60

$12.28

24

HOSE B, RADIATOR (LOWER)

19116-MEG-A60

$15.35

25

THERMOSTAT ASSY.

19300-MCH-A00

$45.69

26

RUBBER, THERMOSTAT

19305-KV3-010

$6.04

27

CASE, THERMOSTAT

19311-MFE-640

$55.72

28

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.88

29

CLAMP, WATER HOSE

19505-ML3-770

$7.04

30

CLAMP B, WATER HOSE

19506-KS6-700

$7.46

31

JOINT, THREE WAY HOSE

19507-MFE-640

$5.97

32

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.03

33

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$29.40

34

BOLT, FLANGE (6MM)

90111-162-000

$2.78

35

BOLT-WASHER (6X16)

90120-KCR-003

$4.37

36

BOLT, FLANGE (5X10)

90196-MBB-003

$2.57

37

NUT, SPECIAL (5MM)

90303-MBB-003

$3.63

38

NUT, SERRATE (5MM)

90315-MK3-003

$2.25

39

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.52

40

O-RING (23X2.4)

94608-30000

$1.15

41

CLIP, TUBE (C11)

95002-70000

Unavailable

42

BULK HOSE, VACUUM (7X3000) (7X730)

95005-70003-30M

Unavailable

43

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.12

44

BOLT, FLANGE (6X28)

95701-06028-07

$1.09

45

BOLT, FLANGE (6X12)

96001-06012-00

$1.88

46

BOLT, FLANGE (6X20)

96001-06020-00

$1.20

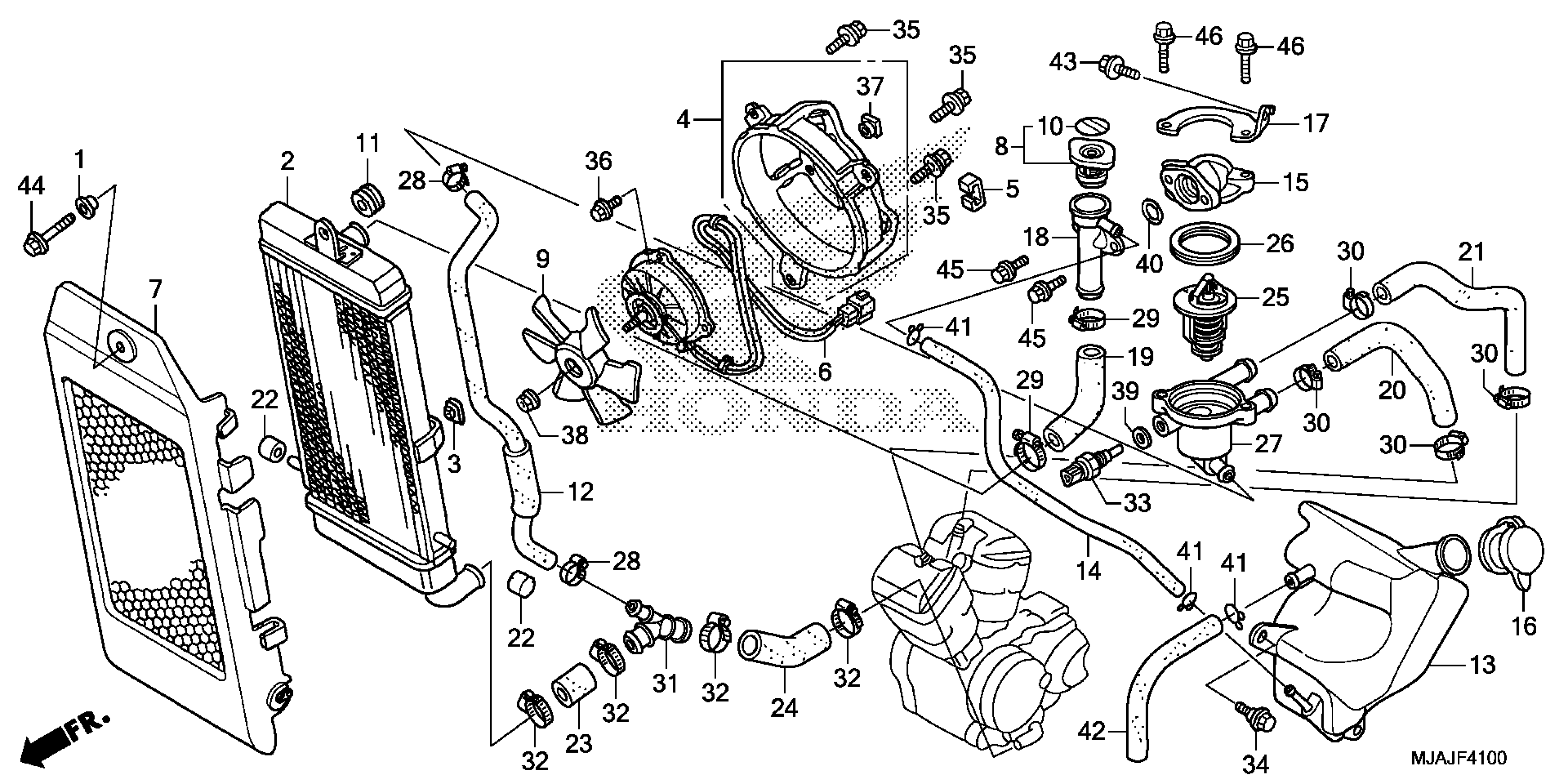

Honda VT750CAC (18) MOTORCYCLE, JPN, VIN# JH2RC501-JK400001 TO JH2RC501-JK499999 RADIATOR Diagram
