Description

Price

1

PROTECTOR

17518-MY9-690

$2.92

2

HEADLIGHT ASSY. (12V 60/55W) (COO) (STANLEY)

33100-MEG-305

$187.68

2

HEADLIGHT ASSY. (12V 60/55W) (COO) (STANLEY) This part replaces 33100-MEG-A41.

33100-MEG-305

$187.68

3

SCREW, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33103-MM2-003

$2.65

4

SCREW-WASHER

33104-MAH-671

$3.99

5

SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33108-MM2-003

$3.15

6

NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33118-438-841

$2.15

7

HEADLIGHT UNIT (COO)

33120-MEG-305

$145.28

7

HEADLIGHT UNIT (COO) This part replaces 33120-MEG-A41.

33120-MEG-305

$145.28

8

TAPE, PROTECTOR

33126-MEA-650

$3.00

9

SPACER

33127-MAA-A31

$2.23

10

NUT, UNIT HOLDER

33128-MAA-A31

$2.17

11

COVER, SCREW

33136-426-830

$1.82

12

COVER, RUBBER

33180-MR7-003

$13.66

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$35.55

14

COLLAR, CHAIN GUARD

52157-GC5-000

$4.46

15

CASE SET, HEADLIGHT

61300-MEG-A40

$108.72

16

RIM, HEADLIGHT

61302-MEG-000

$57.07

17

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.45

18

STAY, HEADLIGHT

61311-MEG-A40

$46.34

19

RUBBER, HEADLIGHT MOUNTING

61315-MR1-000

$2.95

20

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.95

21

COLLAR A

90501-MCF-000

$4.72

22

BOLT-WASHER (5X20)

93402-05020-00

$1.00

23

SCREW, TAPPING (4X12)

93901-24310

$0.94

24

SCREW, TAPPING (4X12)

93901-34310

$0.94

25

NUT, FLANGE (6MM)

94050-06070

$1.51

26

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.91

27

CLIP (4X90)

94591-49000

Unavailable

28

BOLT, FLANGE (6X55)

95701-06055-07

$1.74

29

BOLT, FLANGE (8X45)

95801-08045-07

$2.92

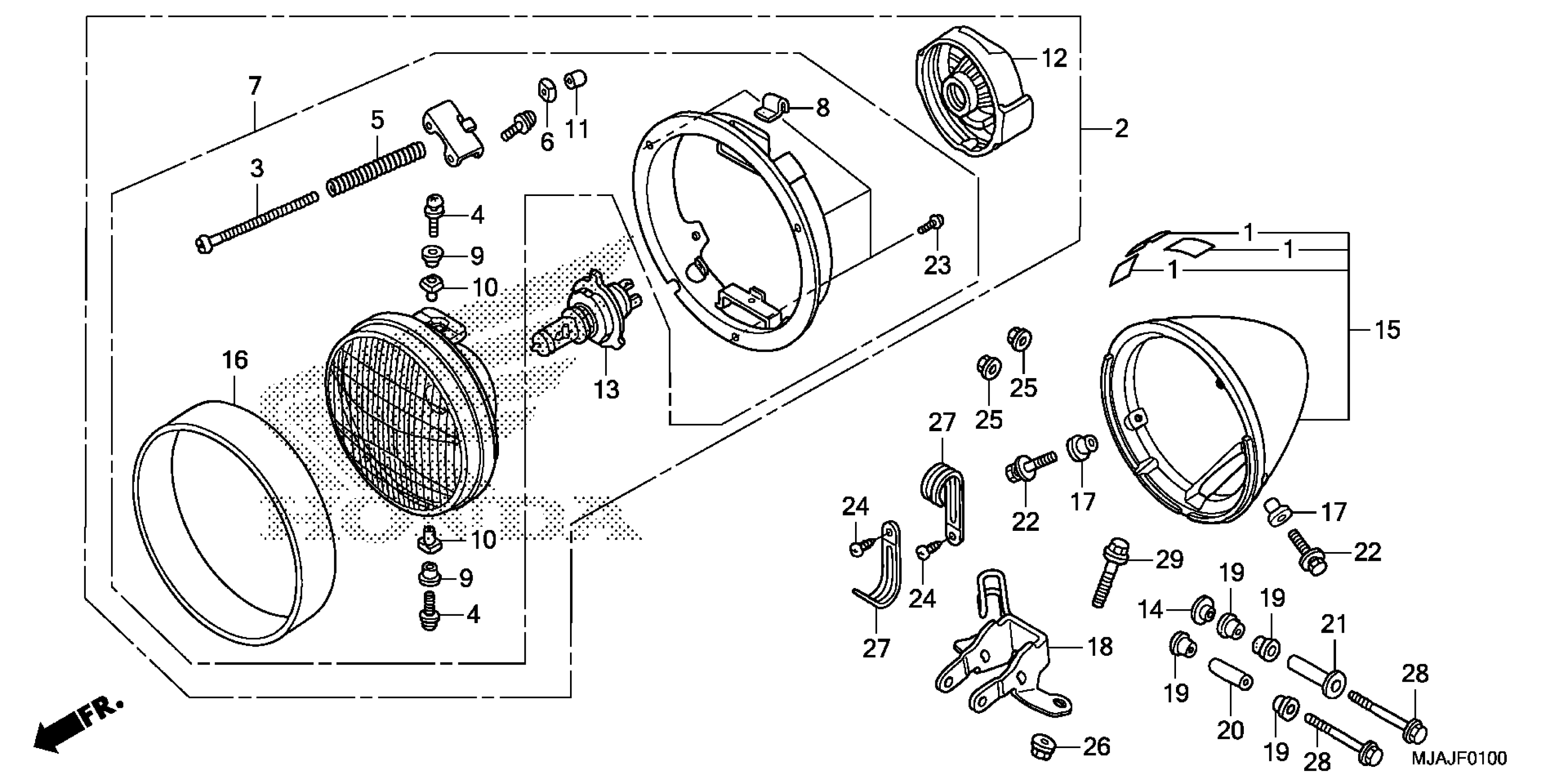

Honda VT750CAC (18) MOTORCYCLE, JPN, VIN# JH2RC501-JK400001 TO JH2RC501-JK499999 HEADLIGHT (1) Diagram

CLIP (4X90)
