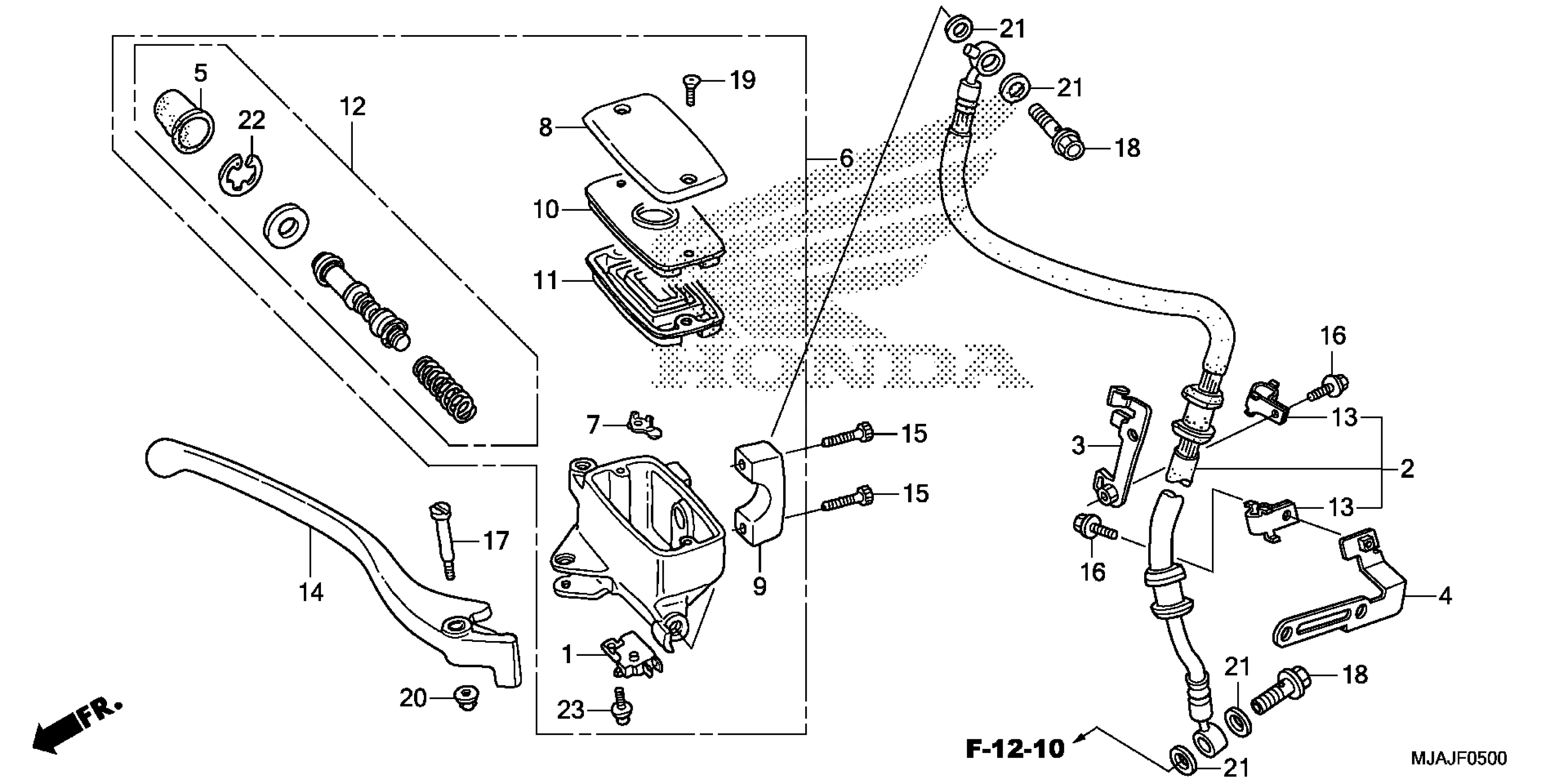

Honda VT750CAC (18) MOTORCYCLE, JPN, VIN# JH2RC501-JK400001 TO JH2RC501-JK499999 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-601

$12.54

2

HOSE, FR. BRAKE This part replaces 45126-MEG-A41.

45126-MJA-AG1

$71.88

3

STAY, FR. BRAKE HOSE

45130-MEG-A40

$9.26

4

BRACKET, R. FR. HOSE CLIP

45138-MEG-A40

$7.98

5

BOOT

45504-410-003

$11.68

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MEG-006

$197.00

7

PROTECTOR

45512-MA6-006

$4.26

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM4-016

$17.86

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$10.05

10

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.23

11

DIAPHRAGM (NISSIN)

45520-MM5-006

$14.50

12

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$48.54

13

CLAMP, BRAKE HOSE

52115-ML8-670

$5.25

14

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$15.64

15

BOLT, SOCKET (6X22)

90101-MCL-000

$1.40

16

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.25

17

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.05

18

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.29

19

SCREW, FLAT (4X12)

90158-MT7-000

$2.08

20

NUT, CAP (6MM)

90201-415-000

$2.08

21

WASHER, OIL BOLT

90545-300-000

$6.06

22

CIRCLIP

90651-MA5-671

$2.48

23

SCREW-WASHER (4X12)

93893-04012-07

$1.38

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.38
