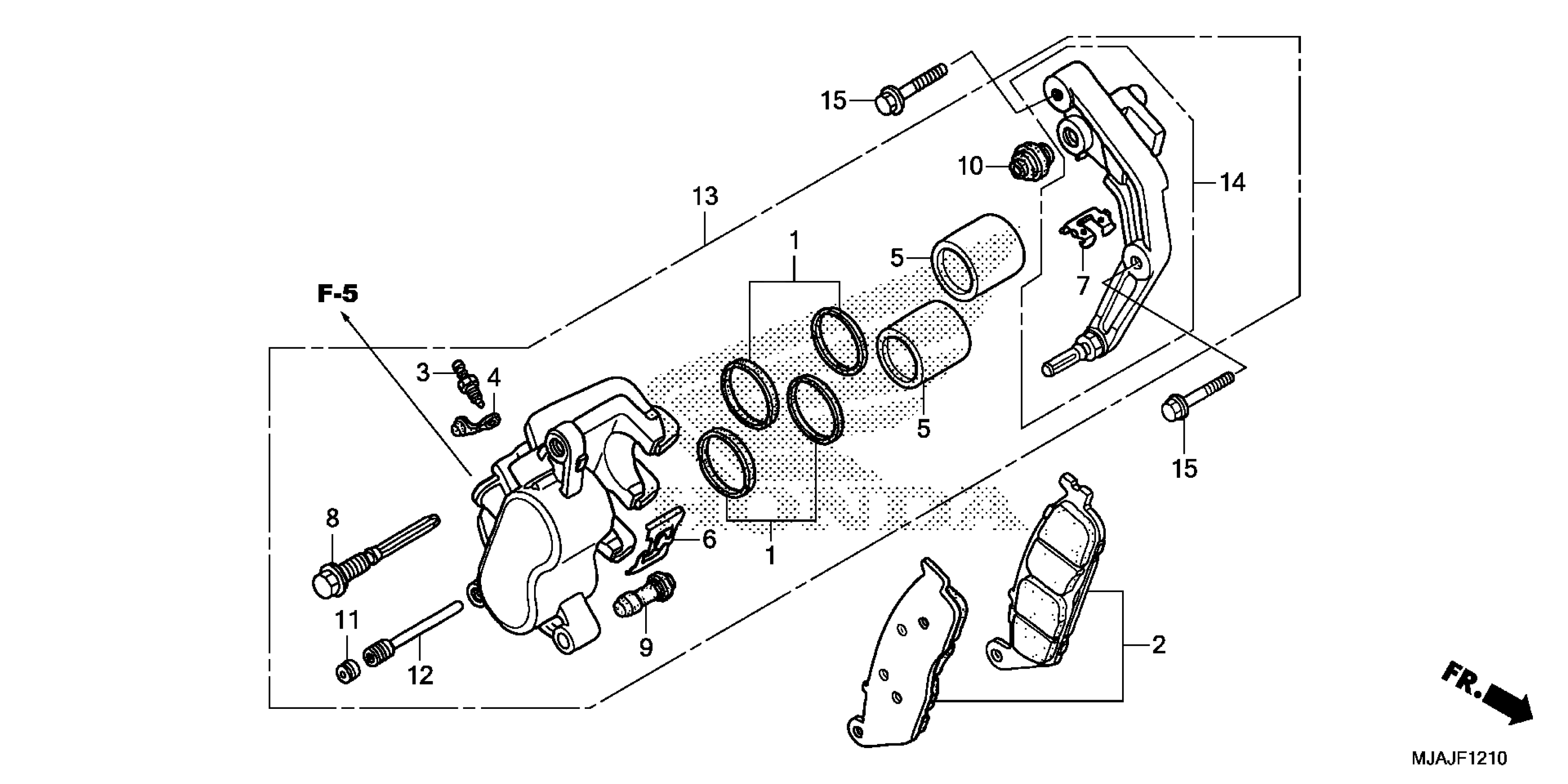

Honda VT750CAC (18) MOTORCYCLE, JPN, VIN# JH2RC501-JK400001 TO JH2RC501-JK499999 FRONT BRAKE CALIPER (1) Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.95

2

PAD SET, FR.

06455-MEA-673

$61.35

3

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

4

CAP, BLEEDER

43353-461-771

$5.03

5

PISTON (NISSIN)

45107-MN5-006

$36.21

6

SPRING, PAD (NISSIN)

45108-ML7-922

$6.15

7

RETAINER

45112-MAA-006

$5.88

8

PIN, BOLT

45131-MA3-006

$16.88

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.43

10

BOOT B

45133-MA3-006

$5.43

11

PLUG, PIN

45203-MG3-016

Unavailable

12

PIN, HANGER (NISSIN)

45215-ML7-922

$10.24

13

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MEG-A41

$318.12

14

BRACKET SUB-ASSY., R. FR.

45290-MEA-671

$41.71

15

BOLT, SPECIAL FLANGE (8X32)

90101-MEG-B00

$4.91
