Description

Price

1

FILM, PROTECTOR

17503-MY1-300

$3.32

2

REFLECTOR, FR. SIDE REFLEX

33740-MEG-671

$15.02

3

BRACKET, RR. BRAKE PEDAL

46505-MEG-000

$42.17

4

FRAME SET

50010-MEG-A60

$2,527.83

6

BRACKET, R. RR. ENGINE HANGER (UPPER)

50171-MEG-000

$4.88

8

BRACKET, R. RR. ENGINE HANGER (LOWER)

50172-MEG-L90

$44.91

9

BRACKET, L. RR. ENGINE HANGER (UPPER)

50173-MEG-670

$6.18

10

PLATE, FR. ENGINE HANGER (UPPER)

50176-MFE-671

$19.46

11

STAY, P.C.V.

50182-MEG-L90

$8.28

13

COLLAR, ENGINE HANGER

50363-KT7-000

$13.77

14

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$27.60

15

COVER, R. FR. SIDE

63550-MEG-A60

$21.94

16

COVER, L. FR. SIDE

63650-MEG-A60

$21.94

17

BOLT, ENGINE HANGER

90103-GC2-920

$11.48

18

BOLT, FLANGE (10X208)

90104-MBS-000

$9.45

19

SCREW, PAN (6X12)

90106-MAV-000

$2.11

20

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.58

21

BOLT, UBS (10X141)

90154-KE7-000

$5.25

22

CAP, R. LOCK NUT (BOTH SIDES)

90312-MB0-700

$17.46

23

BAND, WIRE (BLACK)

90652-KT1-771

$4.46

24

CLAMP, COVER

90655-MEG-000

$1.46

25

CLIP, WIRE HARNESS

90684-ZA0-601

$2.92

26

CLIP, CABLE (8MM)

90690-GHB-631

$2.11

28

CLIP, CABLE (25MM)

90690-GHB-671

$2.11

29

NUT, FLANGE (10MM)

90303-428-900

$3.33

29

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.33

30

BOLT, FLANGE (6X10)

95701-06010-07

$1.71

32

BOLT, FLANGE (8X16)

95701-08016-07

Unavailable

33

BOLT, FLANGE (8X20)

95701-08020-07

$1.95

34

BOLT, FLANGE (10X25)

95701-10025-07

$1.37

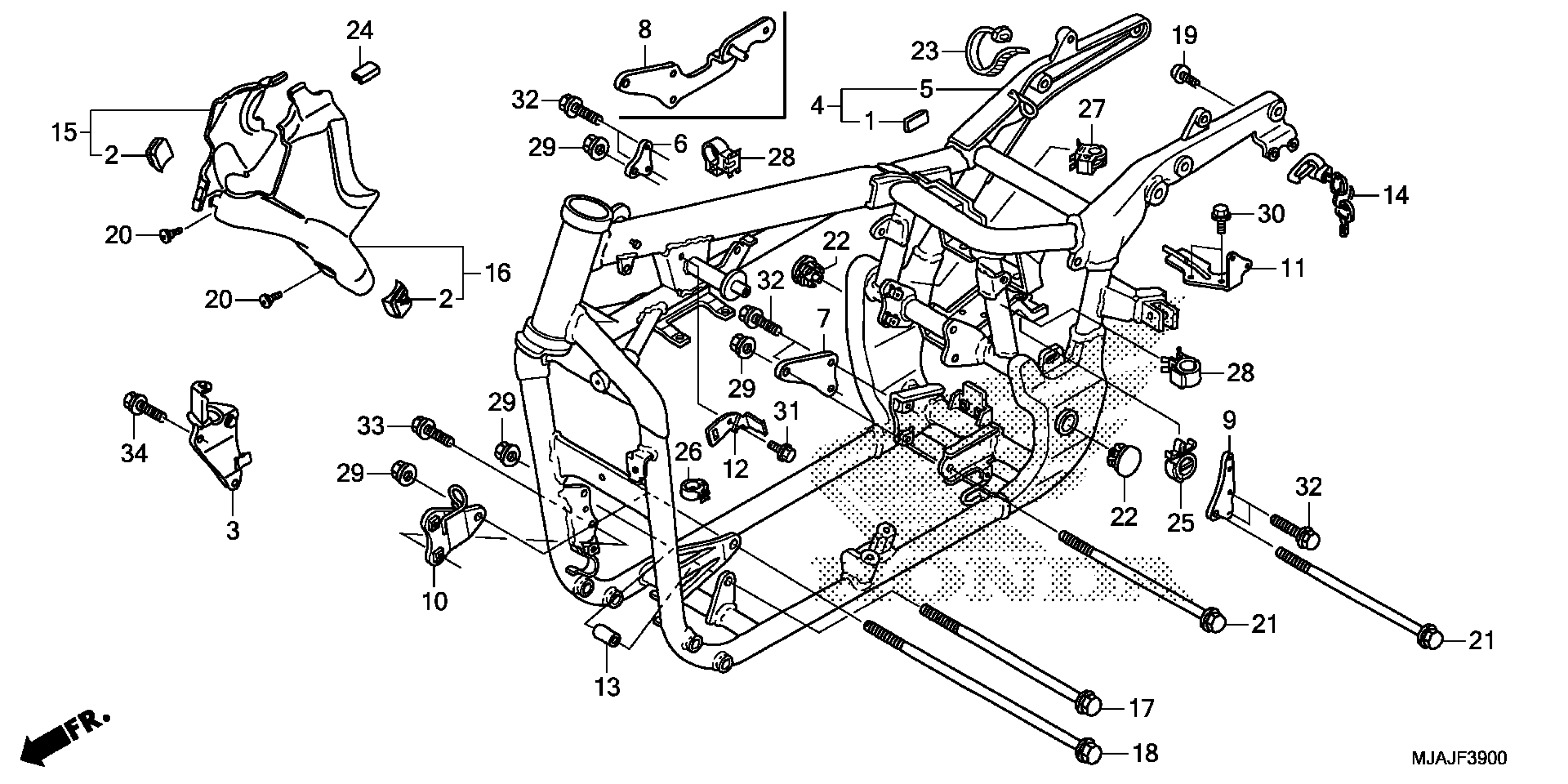

Honda VT750CAC (18) MOTORCYCLE, JPN, VIN# JH2RC501-JK400001 TO JH2RC501-JK499999 FRAME Diagram

BOLT, FLANGE (8X16)
