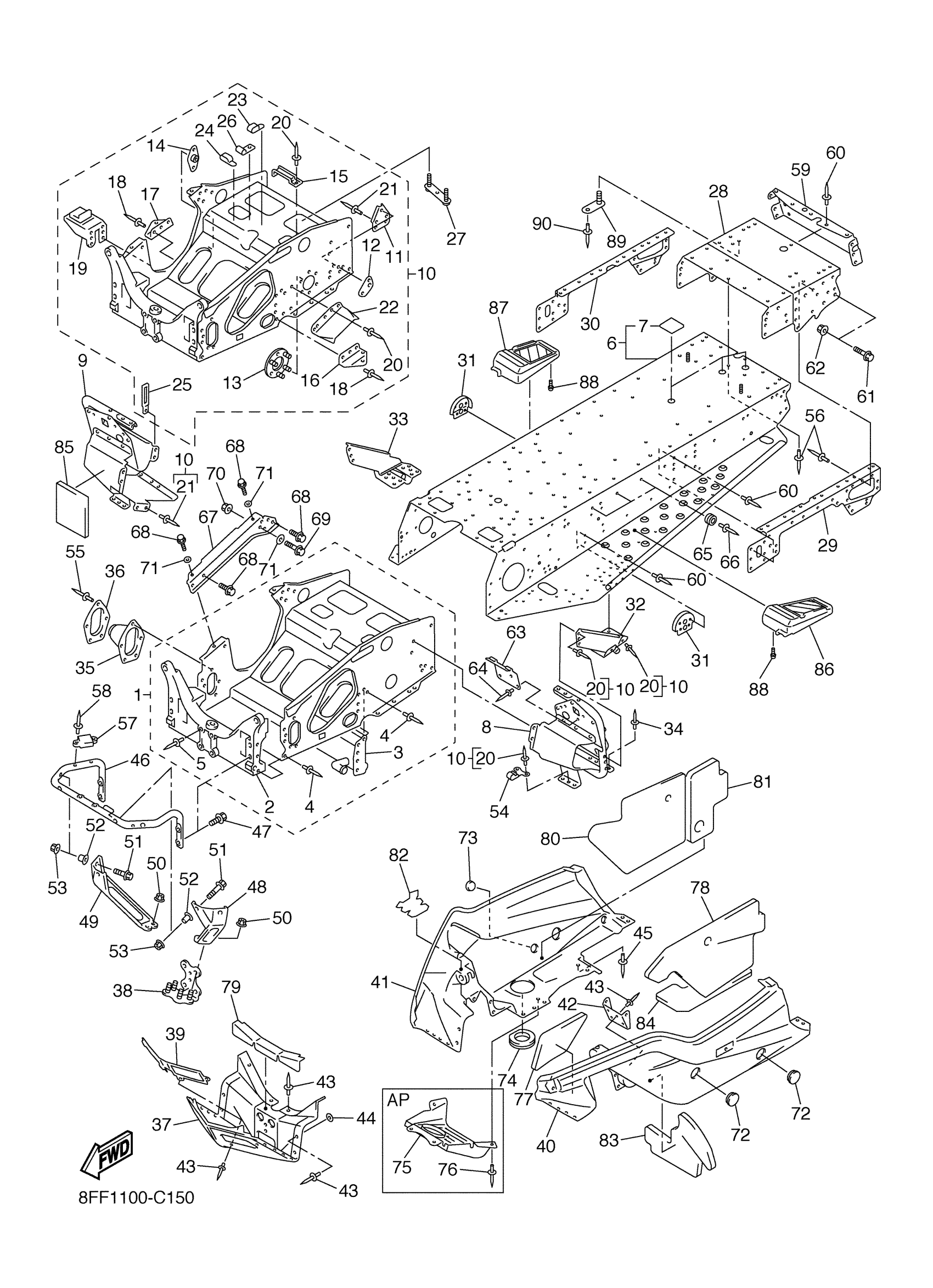

2004 Yamaha Venture 700 (VT70J) Frame Diagram
Find the part on the Frame diagram for your 2004 Yamaha Venture 700 (VT70J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
8EK-21940-18-00
2
. BULKHEAD
8EK-2191A-00-00
3
. HEAT EXCHANGER ASSY
8EK-12440-10-00
5
RIVET, BLIND (8J5)
90267-48057-00
6
REAR FRAME COMP.
8FF-21950-09-00
8
FOOTREST COMP. 1
8EK-21960-09-00
9
FOOTREST COMP. 2
8EK-21970-09-00
10
FRAME CONNECTION KIT
8EK-W2195-01-00
24
CLAMP(8CR)
90461-06142-00
29
PATCH 4
8CW-21964-02-00
30
PATCH 5
8CW-21965-02-00
32
PIPE, PIVOT 1
8DF-21941-00-00
35
COVER 1
8DN-2198F-00-00
36
PLATE, STRG BRACKET 1
8CR-2195E-00-00
38
PLATE, BACK UP
8EK-23788-00-00
39
STAY 4
8CR-77128-00-00
40
FRAME UNDER 1
8EK-2196A-01-00
41
FRAME, UNDER 2
8EK-2196E-01-00
42
BRACKET, GUARD FITTING
8EK-21972-00-00
44
WASHER PLATE 829771780000
90201-05033-00
45
RIVET, BLIND(8CH)
90267-47187-00
48
BRACKET, FRONT
8EK-21949-00-00
59
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
61
BOLT, SMALL FLANGE
95027-08016-00
63
HOOK
8CR-21973-00-00
65
BUTT0N
81K-2471F-00-00
66
RIVET, BLIND(81K)
90267-40135-00
71
WASHER, PLAIN(3BM)
92907-10200-00
75
PROTECTOR, MUFFLER
8EN-2194H-00-00
76
RIVET, BLIND
90267-49004-00
82
LINING, SHROUD 6
8EK-77266-10-00
