2001 Yamaha Venture 700 (VT700F) Frame 2 Diagram

← All diagrams

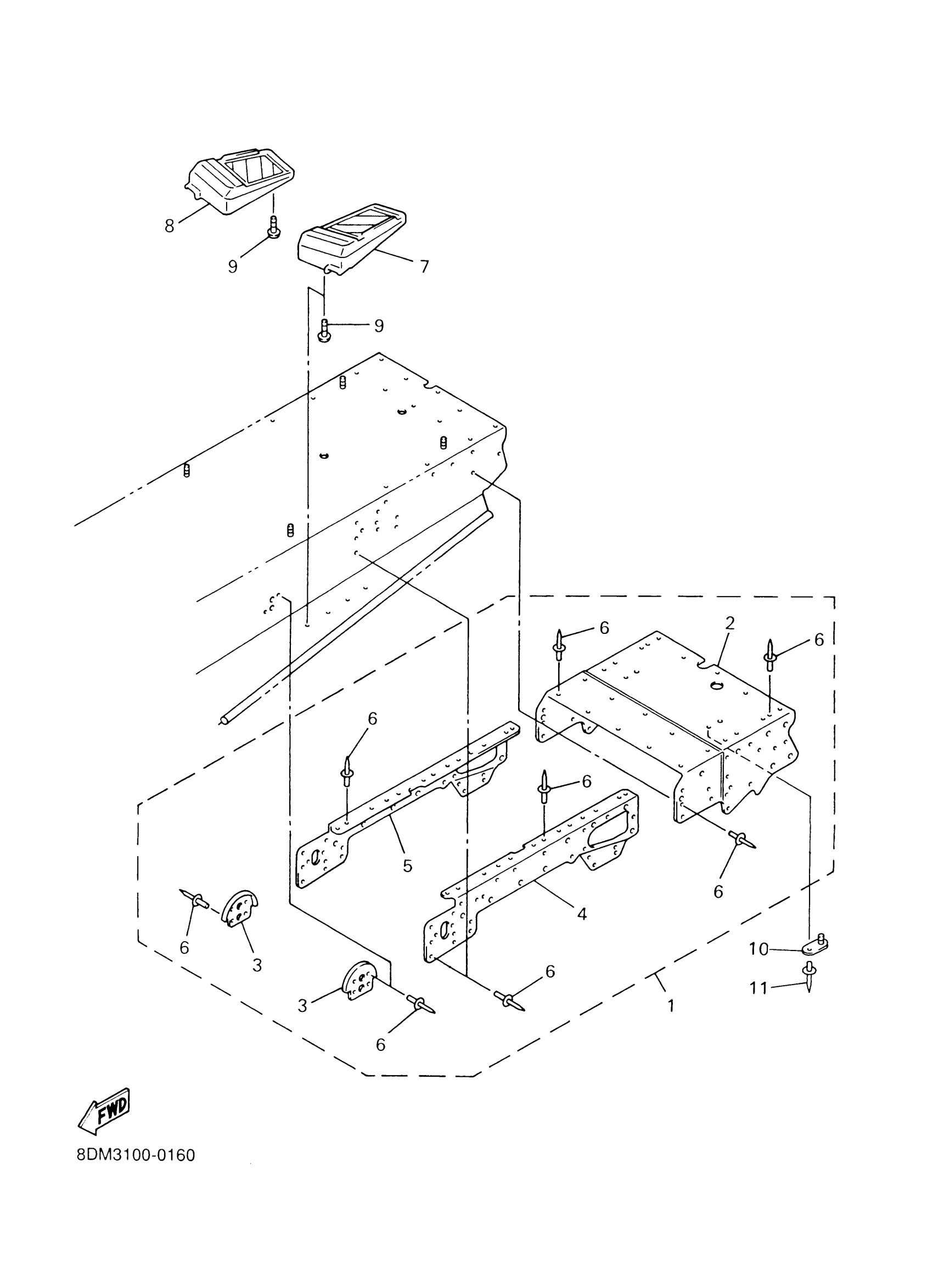

Find the part on the Frame 2 diagram for your 2001 Yamaha Venture 700 (VT700F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha Venture 700 (VT700F) Frame 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, SUB-FRAME KIT

8CW-W2196-10-00

1
Out of stock

2

. PANEL, SUB FRAME 5

8CW-21916-10-00

1
Out of stock

3

BRACKET, MAIN TRACK 1

8CW-21943-00-00

1

$4.11

In stock

4

PATCH 4

8CW-21964-02-00

1
Out of stock

5

PATCH 5

8CW-21965-02-00

1
Out of stock

6

RIVET, BLIND(8CR)

90267-47186-00

1

$2.31

In stock

7

FOOTREST, REAR 1

8DM-27431-03-00

—

$30.91

In stock

8

FOOTREST, REAR 2

8DM-27441-03-00

1

$34.34

In stock

9

SCREW, TAPPING(4TV)

90167-05078-00

1

$5.12

In stock

10

BRACKET, FUEL TANK 1

8CR-2194N-00-00

1

$3.14

In stock

11

RIVET, BLIND(8CR)

90267-47186-00

1

$2.31

In stock
