2006 Yamaha Venture 600 (VT60L) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 2006 Yamaha Venture 600 (VT60L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

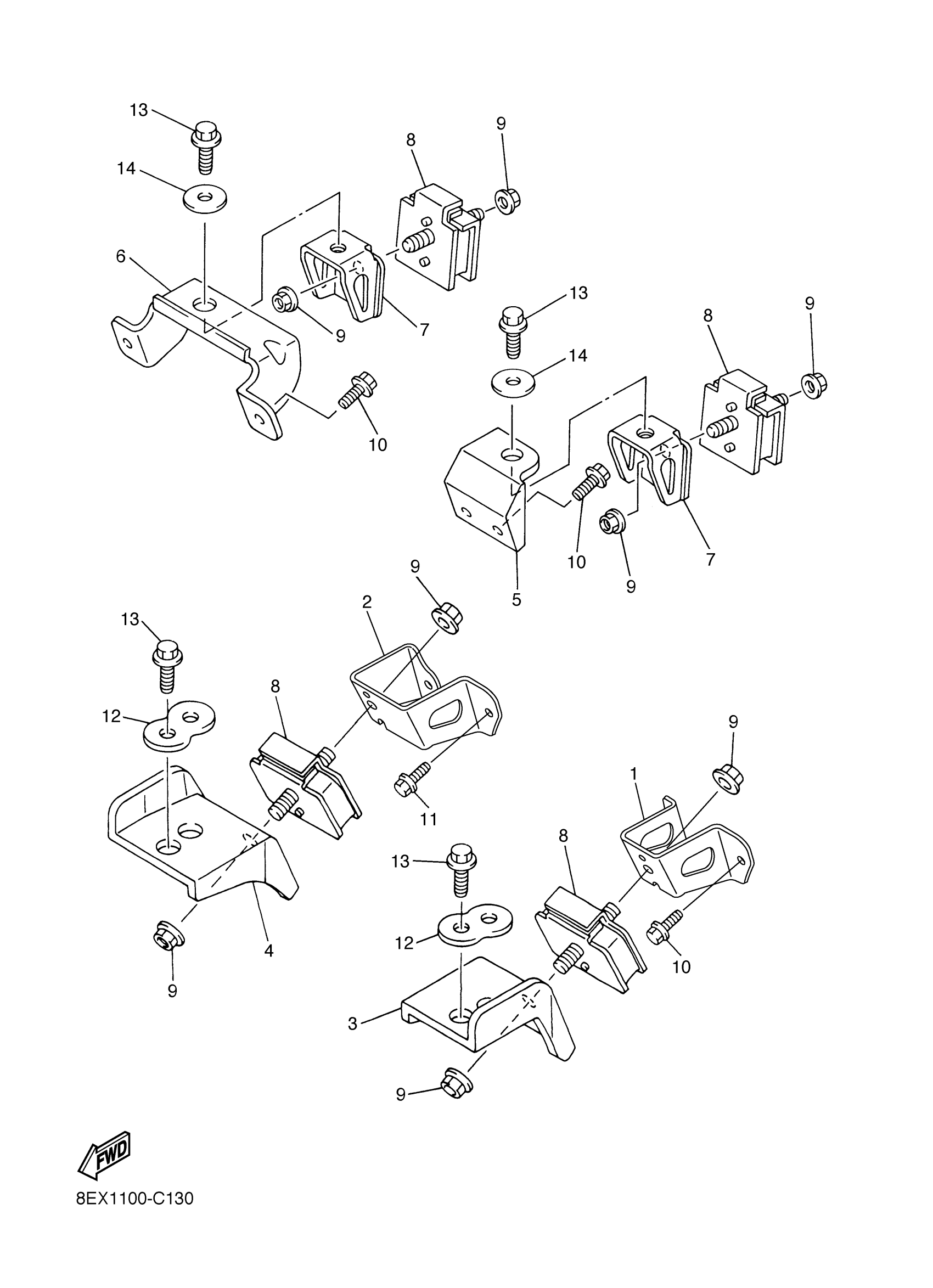

2006 Yamaha Venture 600 (VT60L) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

8EX-21415-00-00

1
Out of stock

2

BRACKET, FRONT UPPER 2

8EX-21416-00-00

—

$33.37

In stock

3

BRACKET, FRONT LOWER 1

8DF-21417-01-00

1
Out of stock

4

BRACKET, FRONT LOWER 2

8DF-21418-00-00

—

$34.05

In stock

5

BRACKET, REAR UPPER 1

8CR-21425-00-00

1
Out of stock

6

BRACKET, REAR UPPER 1

8CH-21425-00-00

—

$30.02

In stock

7

BRACKET, REAR LOWER 1

8CR-21427-10-00

—

$24.26

In stock

8

DAMPER 2

8CH-21486-10-00

—

$131.34

In stock

9

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

10

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

11

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

12

PLATE, ENGINE MOUNT

8DF-2145B-10-00

1
Out of stock

13

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

14

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock
