2004 Yamaha Venture 600 (VT60J) Ski Diagram

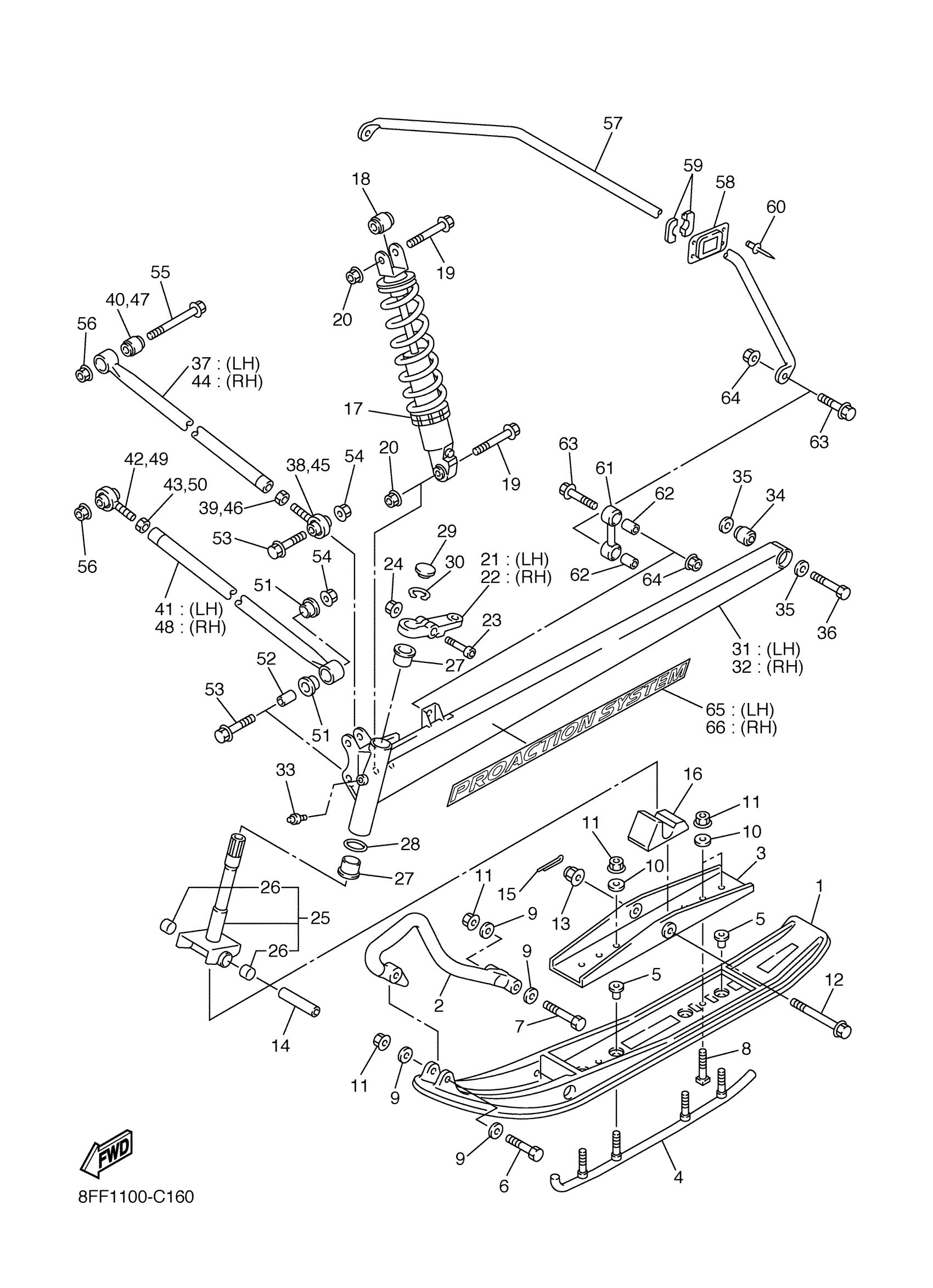

Find the part on the Ski diagram for your 2004 Yamaha Venture 600 (VT60J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI 1
8EK-23711-00-00
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
3
SADDLE 1
8DM-23766-00-00
4
SKI RUNNER KIT
SMA-F3731-EK-00
5
BUSH, SKI 1
8EK-F3751-00-00
6
BOLT, HEXAGON
97017-08055-00
7
BOLT, HEXAGON
97027-08100-00
8
BOLT, SQUARE
90108-08002-00
9
WASHER, PLATE (3L7)
90201-08784-00
10
WASHER, PLATE(3XP)
90201-086P8-00
11
NUT, NYLON
95717-08300-00
12
BOLT, WASHER BASED(8AB)
90105-10712-00
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
14
COLLAR
90387-1012H-00
15
PIN, COTTER
91490-20025-00
16
STOPPER 1
8CR-23743-10-00
17
ABSORBER ASSY 1
8EX-2376A-00-00
18
BUSH
8CR-2376B-00-00
19
BOLT, FLANGE
90105-10030-00
20
NUT, SELF-LOCKING(JN5)
95607-10200-00
21
ARM, OUTSIDE 1
8EK-23851-00-00
22
ARM, OUTSIDE 2
8EK-23852-00-00
23
BOLT, SOCKET
91314-08035-00
24
NUT, U FLANGE(4KG)
95604-08200-00
25
COLUMN, SKI ASSY
8EK-23803-00-00
26
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
27
BUSH, SOLID
90381-25115-00
28
WASHER, PLATE (25G)
90201-301G3-00
29
CAP 1
8CR-23741-10-00
30
CIRCLIP(JF7)
99009-25400-00
31
ARM, FRONT 1
8DM-2382E-10-00
32
ARM, FRONT 2
8DM-2382F-10-00
33
NIPPLE, GREASE
93700-06M03-00
34
DAMPER
8CR-2516A-00-00
35
WASHER, PLATE(8CJ)
90201-120T5-00
36
BOLT(8CJ)
90101-12046-00
37
ARM, CONTROL 1
8EK-2384E-00-00
38
JOINT 2
8EK-23823-00-00
39
NUT, HEXAGON
95337-12600-00
40
INSERT
8EK-23775-00-00
41
ARM, CONTROL 2
8EK-2384F-00-00
42
JOINT 3
8EK-23832-00-00
43
NUT
95314-14600-00
44
ARM, CONTROL 1
8EK-2384E-00-00
45
JOINT 2
8EK-23823-00-00
46
NUT, HEXAGON
95337-12600-00
47
INSERT
8EK-23775-00-00
48
ARM, CONTROL 2
8EK-2384F-00-00
49
JOINT 3
8EK-23832-00-00
50
NUT
95314-14600-00
51
BUSH, SOLID(8CJ)
90381-17110-00
52
COLLAR(8CJ)
90387-1009K-00
53
BOLT, FLANGE
90105-10030-00
54
NUT, SELF-LOCKING(JN5)
95607-10200-00
55
BOLT, FLANGE
90105-12012-00
56
NUT, U FLANGE
95607-12200-00
57
BAR, STABILIZER FRONT
8CW-2386E-00-00
58
COVER, STABILIZER FRONT
8CR-2386H-00-00
59
BUSH, STABILIZER FRONT
8CW-2386G-00-00
60
RIVET, BLIND(8CR)
90267-47186-00
61
JOINT, STABILIZER 1
8CR-2385L-00-00
62
COLLAR(8V7)
90387-087L3-00
63
BOLT, FLANGE
95817-08040-00
64
NUT, SELF-LOCKING
90185-08169-00
65
EMBLEM 15
8EA-77371-30-00
66
EMBLEM 16
8EA-77372-30-00
