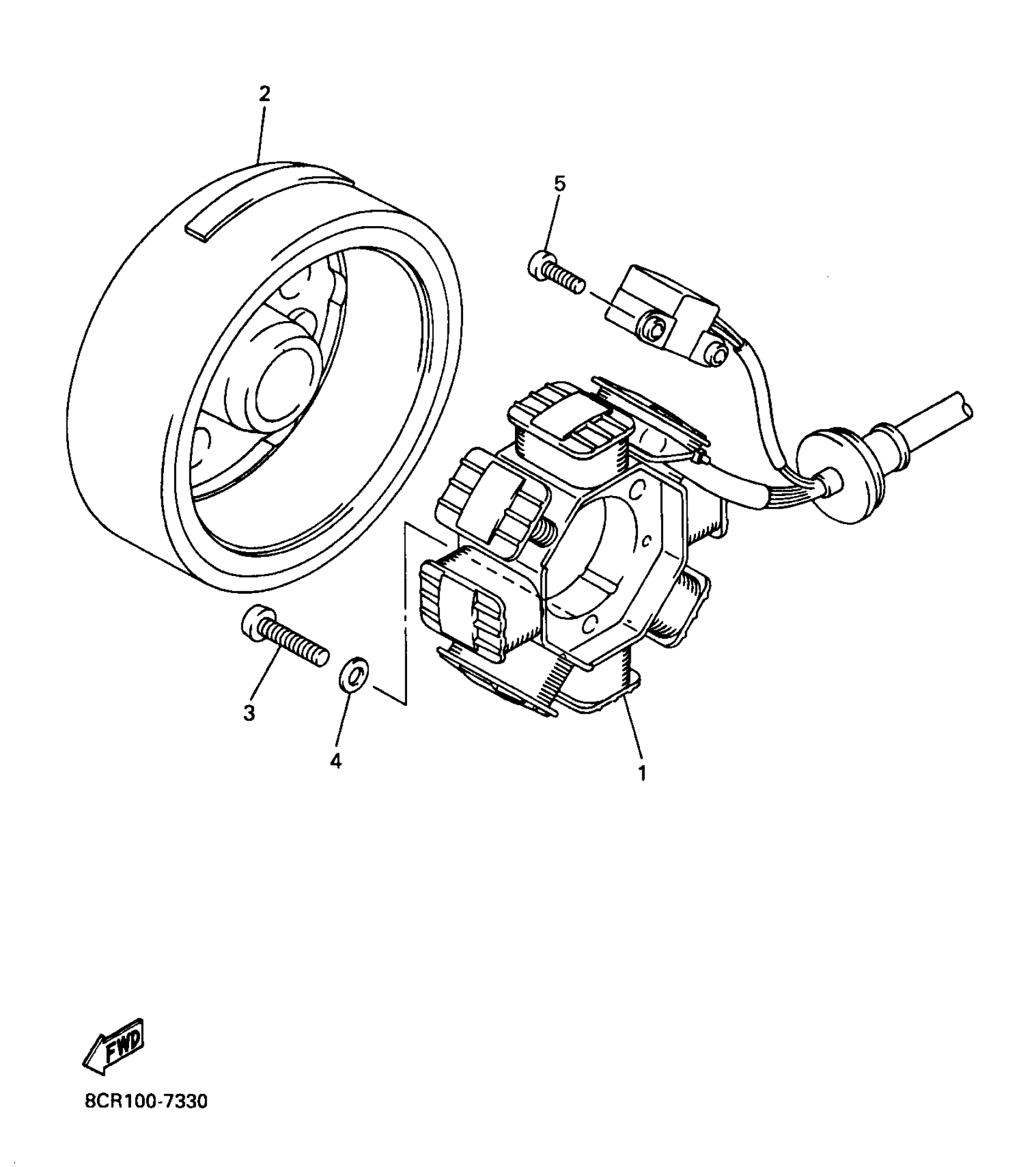

Find the part on the Generator diagram for your 1998 Yamaha Venture 600 (VT600B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Venture 600 (VT600B) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

8CR-85510-01-00

1
Out of stock

1

STATOR ASSEMBLY

8CW-85510-00-00

1
Out of stock

2

ROTOR ASY

8CR-85550-01-00

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

4

WASHER(6TA)

92907-06600-00

1
Out of stock

5

SCREW, PAN HEAD

98507-05014-00

1
Out of stock
