1996 Yamaha Venture TR (VT480TRW) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1996 Yamaha Venture TR (VT480TRW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

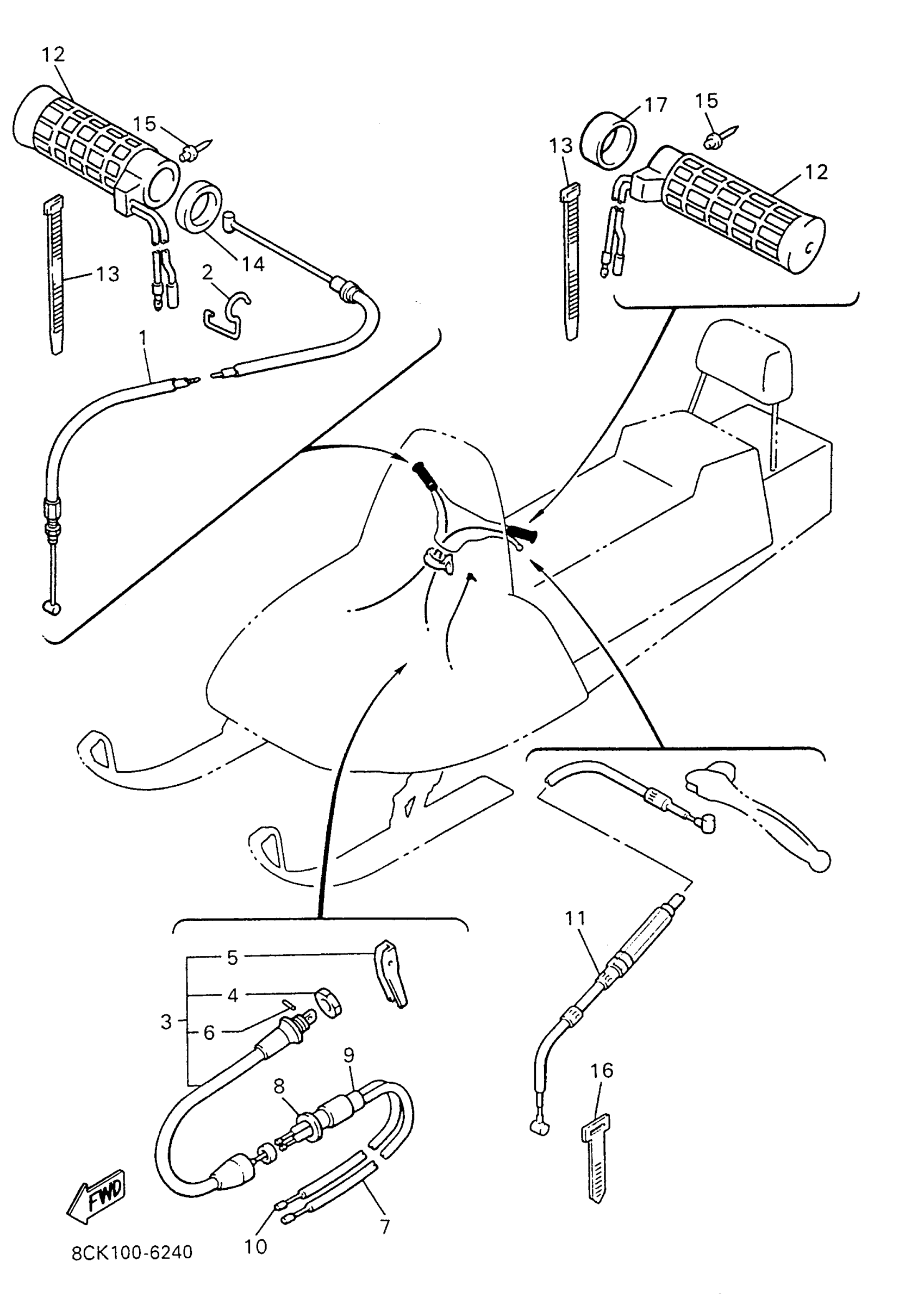

1996 Yamaha Venture TR (VT480TRW) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

85F-26311-00-00

1
Out of stock

2

CLAMP (8X0)

90465-10189-00

1
Out of stock

3

CABLE, STARTER 1

8V0-26331-02-00

1
Out of stock

4

Nut

8G8-26333-00-00

—
Out of stock

5

KNOB, STARTER

8U9-26325-00-00

1
Out of stock

6

PIN, SPRING (663)

91690-30010-00

1
Out of stock

7

CABLE, STARTER 2

8M6-26334-01-00

1
Out of stock

8

CONNECTER, CABLE

4U1-26261-00-00

1
Out of stock

9

CAP

5L6-26272-00-00

1
Out of stock

10

CABLE, STARTER 2

8V0-26334-00-00

1
Out of stock

11

CABLE, BRAKE

88T-26340-01-00

1
Out of stock

12

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

13

BAND, SWITCH CORD

437-83936-01-00

1
Out of stock

14

WASHER, PLAIN

80Y-23843-00-00

1
Out of stock

15

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

16

BAND

341-26397-01-00

1
Out of stock

17

COLLAR

90387-22726-00

1
Out of stock
