1997 Yamaha Venture TR (VT480TRA) Intake Diagram

← All diagrams

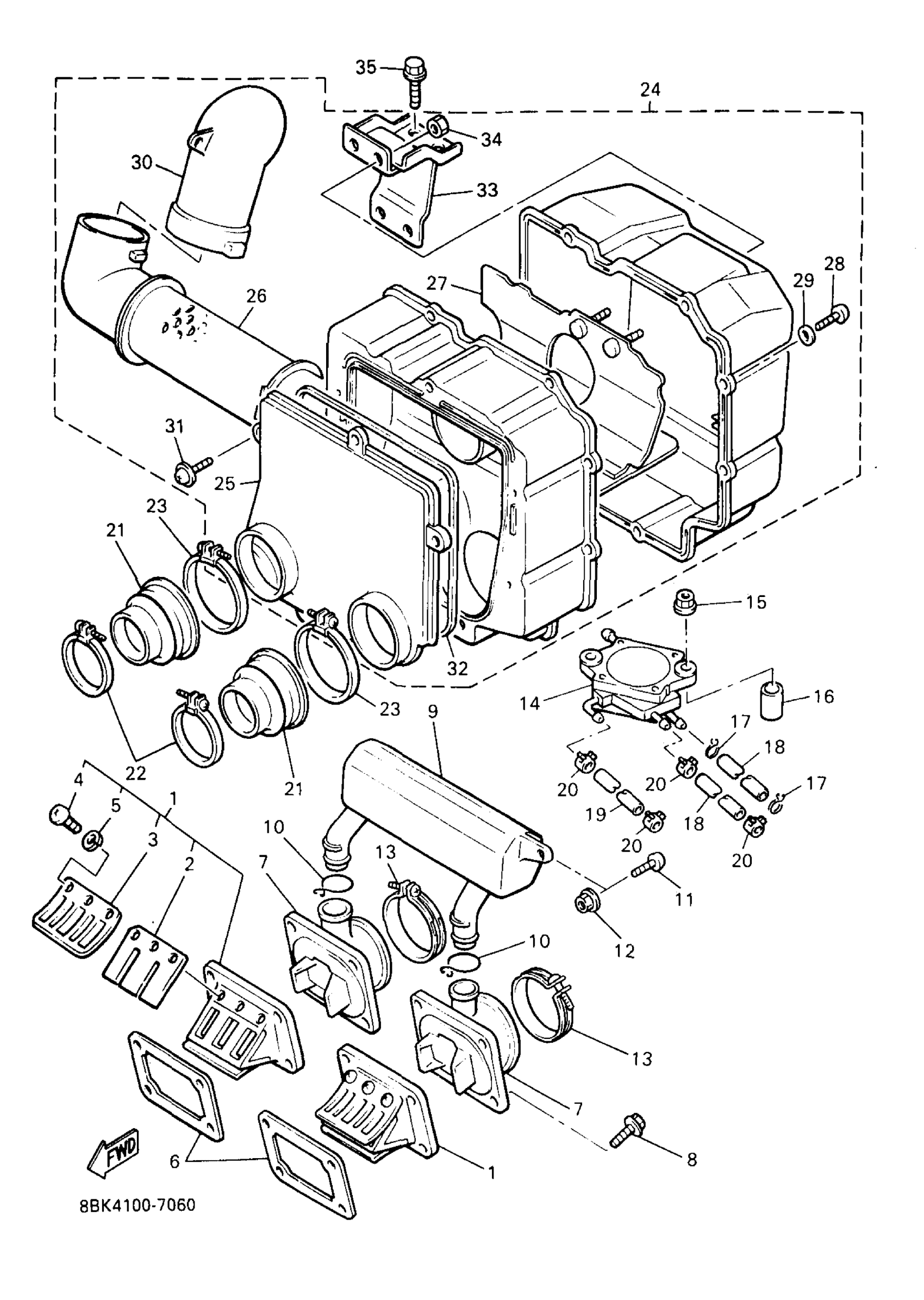

Find the part on the Intake diagram for your 1997 Yamaha Venture TR (VT480TRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Venture TR (VT480TRA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1

$40.80

In stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

MANIFOLD, INTAKE

8V0-13555-00-00

1

$117.18

In stock

8

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

9

CHAMBER, AIR

8V0-13581-00-00

1
Out of stock

10

CLIP(8V0)

90467-24096-00

1
Out of stock

11

SCREW, BINDING (8J0)

90154-05005-00

1
Out of stock

12

NUT, NYLON

95707-05300-00

1

$2.74

In stock

13

BAND

86M-13575-00-00

1

$16.45

In stock

14

FUEL PUMP ASSEMBLY

8BF-24410-00-00

1
Out of stock

15

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

16

COLLAR (8U7)

90387-105G5-00

—

$7.35

In stock

17

CLIP

90467-090A2-00

—

$2.51

In stock

18

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

19

HOSE (L450)

90445-10144-00

—

$4.52

In stock

20

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

21

JOINT, AIR CLEANER 1

8V0-14453-00-00

—

$26.50

In stock

22

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

23

HOSE CLAMP ASSY

90450-81001-00

—

$11.26

In stock

24

SILENCER ASSEMBLY, INTAKE

8V0-14440-01-00

1
Out of stock

25

CAP,CACE1

8V0-14412-01-00

—

$13.57

In stock

26

. PIPE

8V0-14465-00-00

1
Out of stock

27

. PLATE

8V0-14484-00-00

1
Out of stock

28

SCREW, PAN HEAD(JJ6)

98507-05016-00

—

$1.40

In stock

29

WASHER(1RW)

92907-05600-00

—
Out of stock

30

. JOINT

8V0-14454-00-00

1
Out of stock

31

SCREW, PAN HEAD

98507-05014-00

—

$6.18

In stock

32

SEAL

51Y-14462-00-00

—

$11.61

In stock

33

. STAY 2

8V0-14494-00-00

1
Out of stock

34

NUT(6TA)

95317-06600-00

—

$2.69

In stock

35

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock
