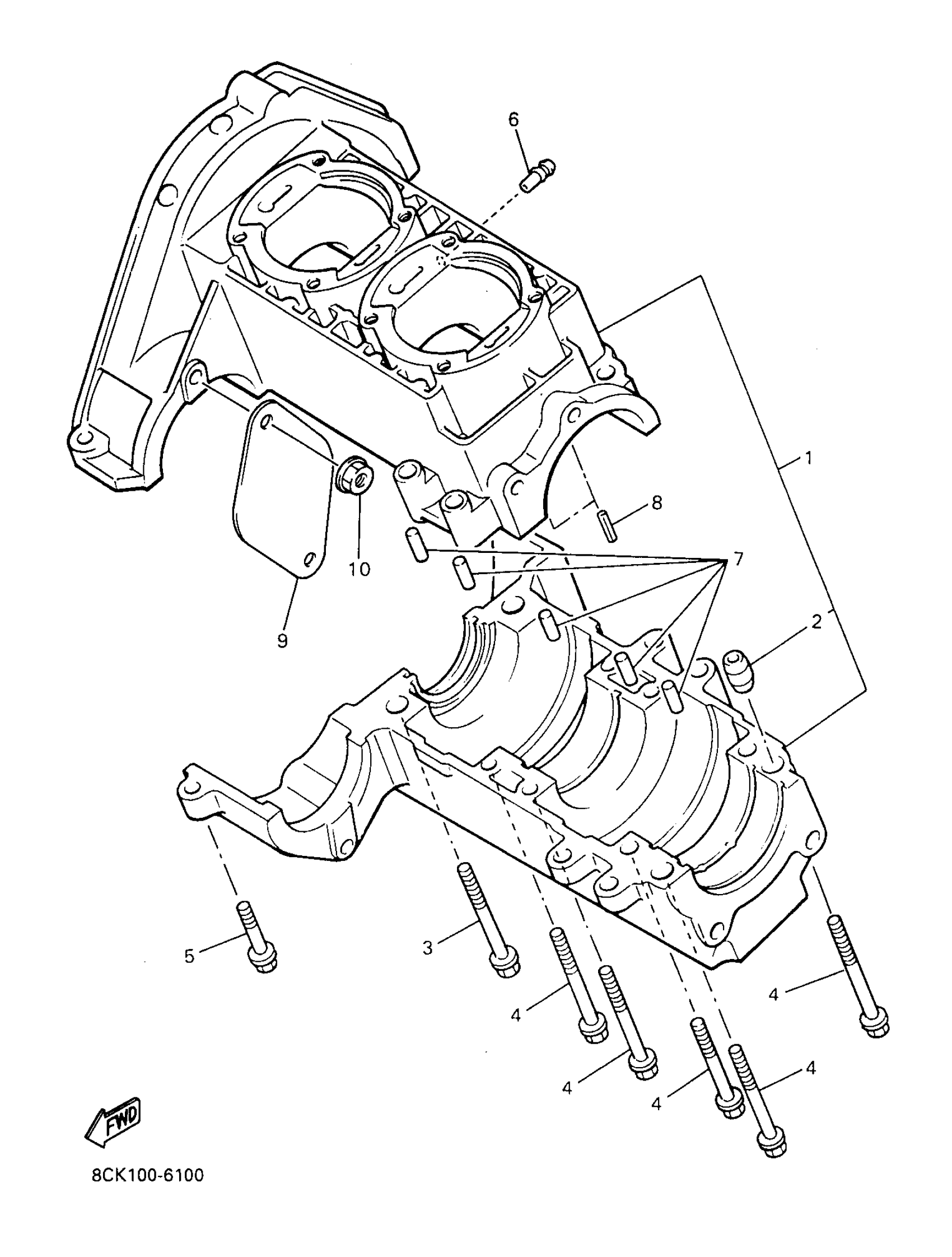

Yamaha VT480TRA (VENTURE TR) 8CK2 1997 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

88T-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

BOLT, WASHER BASED

90105-08466-00

Unavailable

4

BOLT, WASHER BASED

90105-084A1-00

$8.75

5

BOLT, FLANGE

95817-06025-00

Unavailable

6

JOINT, BREATHER

J38-11116-00-00

$2.73

7

PIN, DOWEL (8H1)

93604-07141-00

$1.29

8

PIN, SPRING(80K)

91609-30006-00

Unavailable

9

PLATE

8K4-12633-00-00

Unavailable

10

NUT, FLANGE(JN5)

95707-08500-00

$1.40
