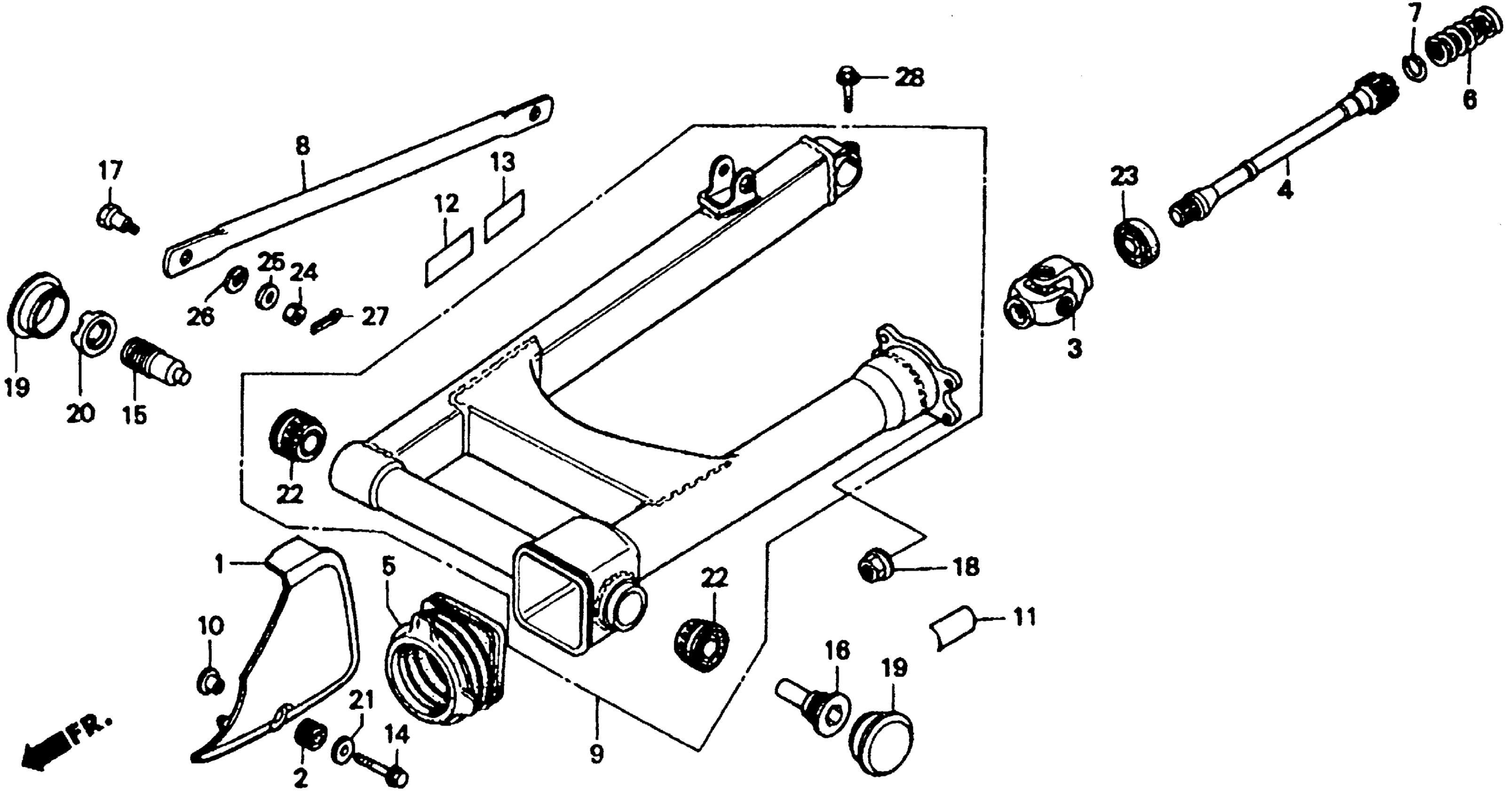

Honda VT1100CA (94) SHADOW 1100, JPN, VIN# 1HFSC180-RA800001 SWINGARM Diagram

#

Description
Price

1

COVER, L. RR.

11341-MAA-000

Unavailable

1

COVER, L. RR. This part replaces 11341-MM8-000.

11341-MAA-000

Unavailable

2

RUBBER, CUSHION

17622-GB7-900

$4.77

3

JOINT, YOKE

40200-MG8-003

Unavailable

4

SHAFT, DRIVE

40201-MG8-003

Unavailable

5

BOOT, JOINT

40207-MG8-000

$11.77

6

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.88

7

RING, STOPPER

40221-MB0-000

$4.49

8

ARM, RR. BRAKE STOPPER

43431-ME9-010

Unavailable

9

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-MAA-A40ZA

$354.14

9

SWINGARM ASSY., RR. *NH1* (BLACK) This part replaces 52100-MM8-000ZA.

52100-MAA-A40ZA

$354.14

10

COLLAR, CHAIN GUARD

52159-KB7-000

$6.31

11

MARK, TIRE CAUTION

87505-MM8-830

Unavailable

13

MARK, ACCESSORIES & LOADING CAUTION

87512-MZ3-670

$6.59

14

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.87

15

BOLT, R. SWINGARM PIVOT

90121-HA6-000

Unavailable

16

BOLT, L. RR. SWINGARM PIVOT

90122-MB0-000

Unavailable

17

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.46

18

NUT, HEX. (10MM)

90308-357-000

$4.84

19

CAP, R. LOCK NUT

90312-MB0-700

$17.46

20

NUT, RR. SWINGARM PIVOT

90355-469-000

$16.83

21

WASHER, PLAIN (9MM)

90503-SA0-000

$4.77

22

BEARING, TAPER ROLLER (17X40X13.25) (NSK)

91066-HA7-672

$59.36

23

OIL SEAL (27X43X7)

91261-ME9-005

$11.65

24

NUT, HEX. (8MM)

94001-08000-0S

$1.37

25

WASHER, PLAIN (8MM)

94101-08000

Unavailable

26

WASHER, SPRING (8MM)

94111-10000

$1.29

27

PIN, COTTER (2.0X15)

94201-20150

$1.09

28

BOLT, FLANGE (8X32)

95701-08032-00

$1.34
