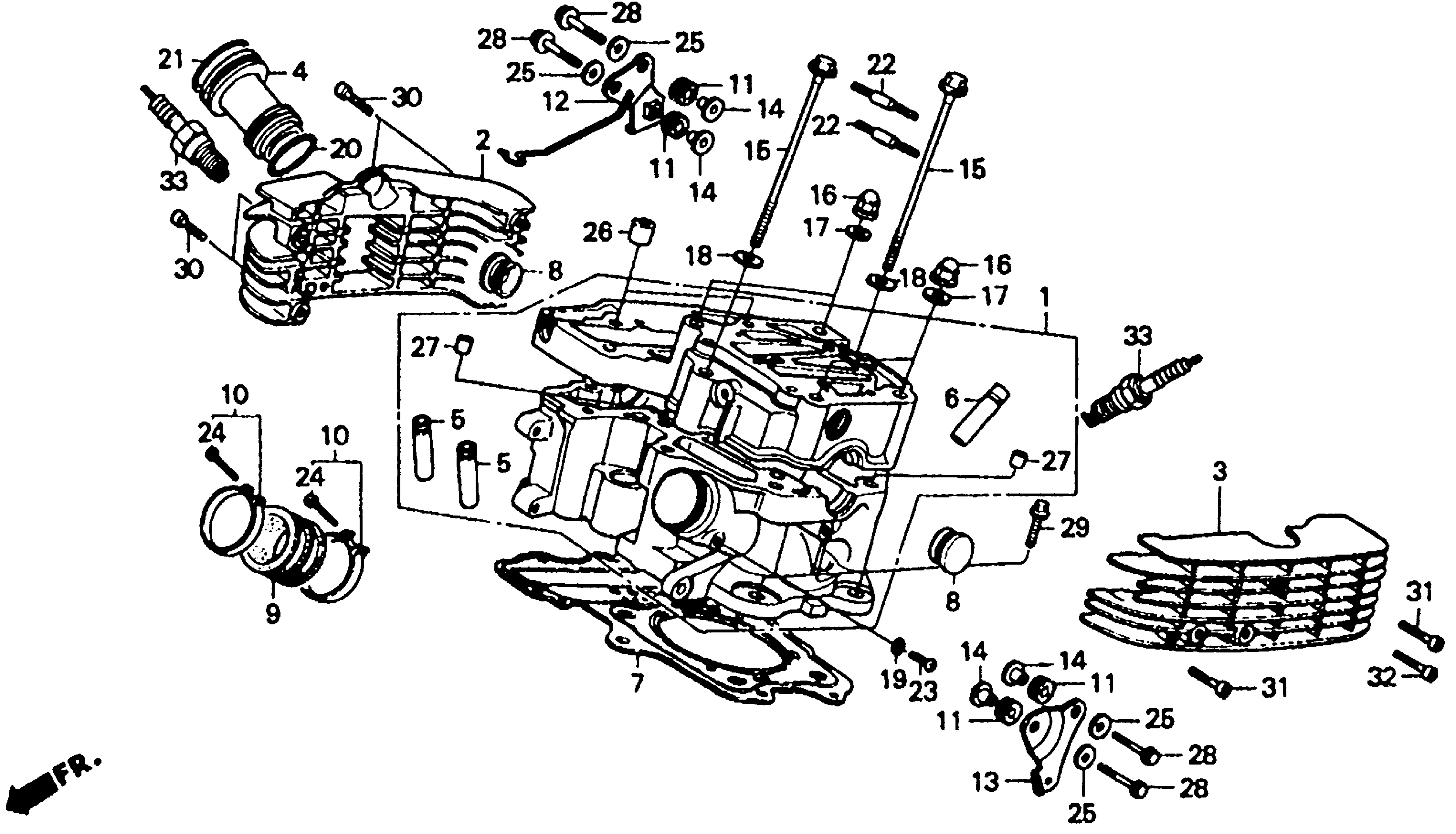

Honda VT1100CA (94) SHADOW 1100, JPN, VIN# 1HFSC180-RA800001 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR. (SOURCE: VINTAGE PARTS INC.) This part replaces 12020-MAA-000.

12020-MAA-010

Unavailable

1

CYLINDER HEAD ASSY., RR.

12020-MAA-010

Unavailable

2

FIN A, RR. CYLINDER HEAD

12222-MM8-680

Unavailable

3

FIN B, RR. CYLINDER HEAD

12223-MM8-680

Unavailable

4

SLEEVE, PLUG

12225-MG8-000

$35.04

5

GUIDE, VALVE

12231-MG8-305

$20.58

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MG8-004

Unavailable

8

PLUG, CAMSHAFT

12312-ME9-750

$9.72

9

INSULATOR, CARBURETOR

16211-MG8-000

$19.56

10

BAND, INSULATOR

16218-MAA-000

Unavailable

11

GROMMET, HORN STAY

38119-MM8-000

$4.58

12

STAY, R. HORN

50328-MM8-680

Unavailable

13

STAY, L. HORN

50329-MM8-680

Unavailable

14

COLLAR, FUEL TANK SETTING

61104-943-000

Unavailable

15

BOLT, FLANGE (8X150)

90015-MG8-000

$6.04

16

NUT, CAP (10MM)

90209-MM8-000

$5.80

17

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$5.61

18

WASHER, SEALING (8MM)

90441-ME9-000

$2.52

19

WASHER, SEALING (5MM)

90452-323-000

$1.62

20

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.41

21

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.95

22

BOLT 2, STUD (8X35)

92900-08035-0B

$2.95

22

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.95

23

SCREW, PAN (5X8)

93500-05008-0A

$0.91

25

WASHER, PLAIN (10MM)

94101-10000

$1.11

26

PIN A, DOWEL (10X16)

94301-10160

$2.92

27

PIN A, DOWEL (14X20)

94301-14200

$2.92

28

BOLT, FLANGE (6X25)

95701-06025-00

$1.88

29

BOLT, FLANGE (6X35)

95701-06035-00

$1.97

30

BOLT, SOCKET (6X20)

96600-06020-00

$1.25

30

BOLT, SOCKET (6X20) This part replaces 96700-06020-00.

96600-06020-00

$1.25

31

BOLT, SOCKET (6X35)

96700-06035-00

Unavailable

32

BOLT, SOCKET (6X45)

96700-06045-00

$1.83

33

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.00

33

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.38

33

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

33

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.38

33

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.00

33

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.38
