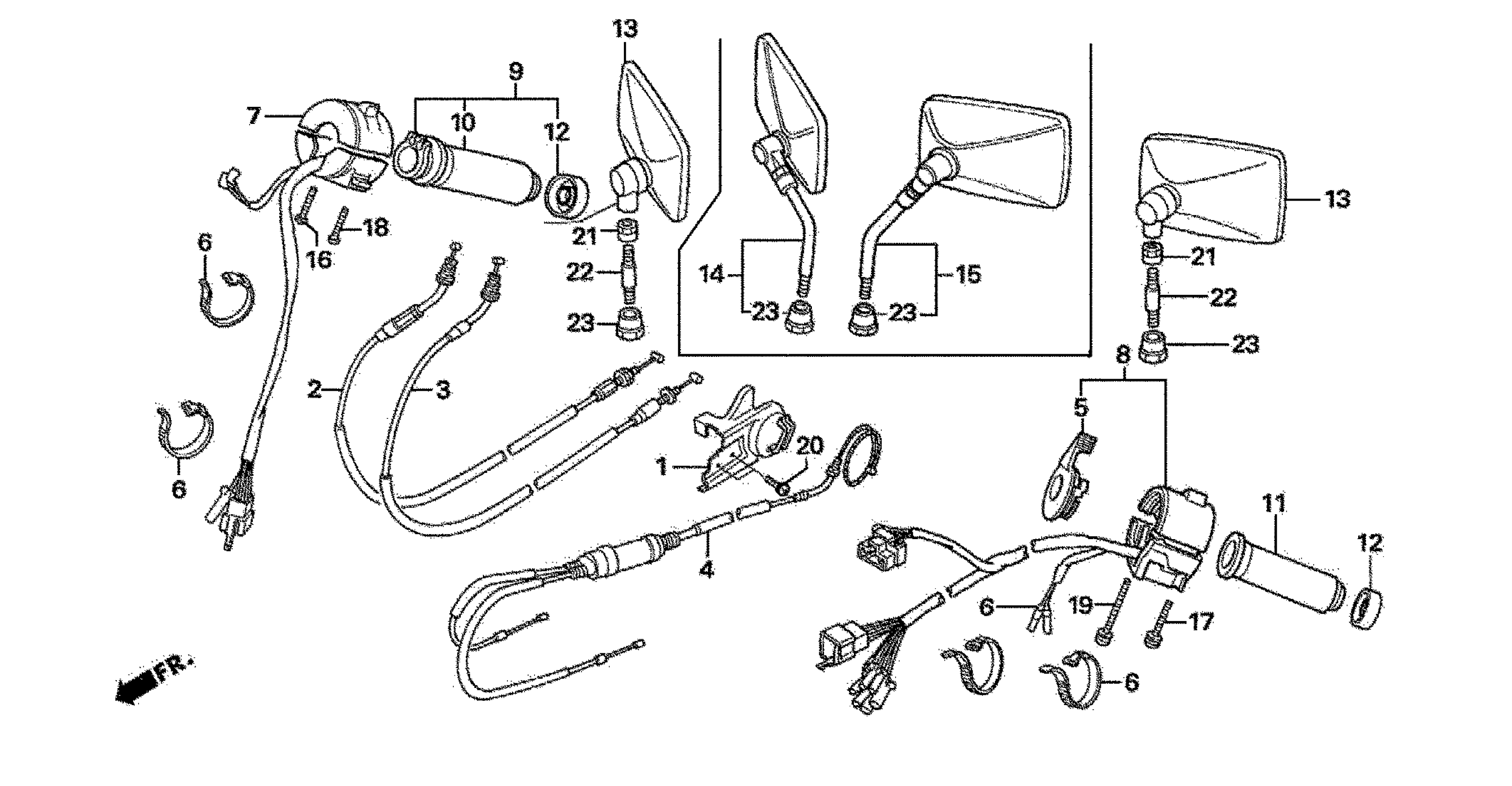

Honda VT1100CA (94) SHADOW 1100, JPN, VIN# 1HFSC180-RA800001 HANDLE SWITCH + CABLES + MIRRORS Diagram

#

Description
Price

1

COVER, THROTTLE LINK

16111-MM8-610

Unavailable

2

CABLE A, THROTTLE

17910-MAA-000

$38.82

3

CABLE B, THROTTLE

17920-MAA-000

$37.80

4

CABLE, CHOKE

17950-MM8-000

Unavailable

6

BAND, WIRE

90652-KT1-771

$4.46

7

SWITCH ASSY., STOP This part replaces 35130-MAA-670.

35130-MAA-671

Unavailable

8

SWITCH ASSY., TURN SIGNAL

35200-MAA-670

Unavailable

9

GRIP ASSY., R.

53145-MM8-000

$40.71

10

GRIP ASSY., R.

53145-MM8-000

$40.71

10

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$40.71

11

GRIP, L. HANDLE

53166-MM8-000

Unavailable

12

CAP, GRIP END

53167-MM8-000

$8.99

13

MIRROR, BACK This part replaces 88210-MAA-000.

88310-MAH-305

$71.25

16

SCREW, PAN (5X22)

93500-05022-0B

$1.34

17

SCREW, PAN (5X22)

93500-05022-0B

$1.34

18

SCREW, PAN (5X25)

93500-05025-0B

$1.72

19

SCREW, PAN (5X32)

93500-05032-0B

$1.40

20

SCREW-WASHER (4X6)

93891-04006-00

$0.83

21

NUT, LOCK

90314-ME8-000

$14.17

22

STAY

88215-MAA-000

Unavailable

23

NUT, LOCK

90314-375-000

$12.04
