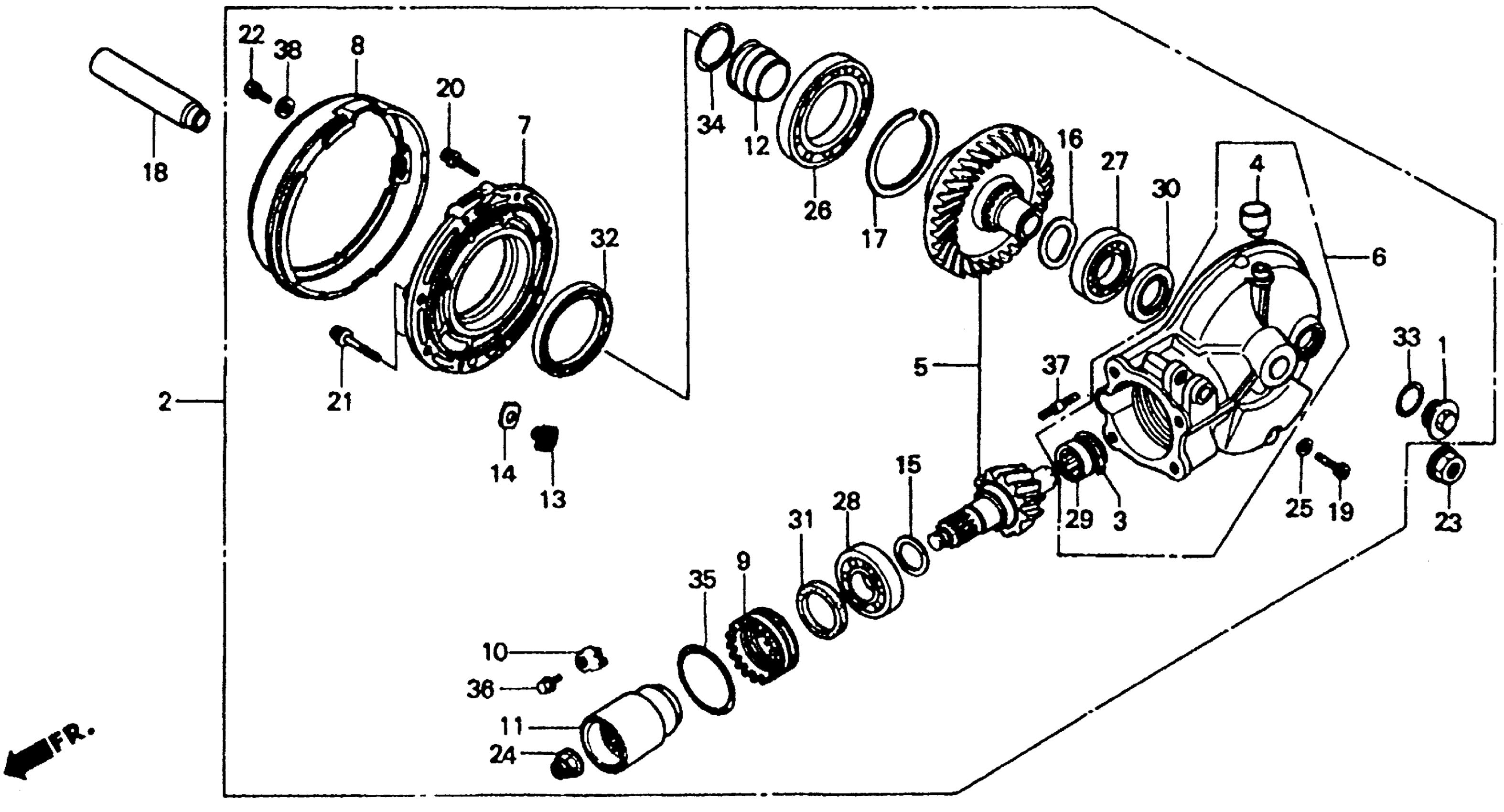

Honda VT1100CA (94) SHADOW 1100, JPN, VIN# 1HFSC180-RA800001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL This part replaces 41300-MM8-880.

41300-MM8-882

Unavailable

2

GEAR ASSY., FINAL This part replaces 41300-MM8-881.

41300-MM8-882

Unavailable

3

RING, STOPPER

41305-MB4-770

$5.43

4

CAP, BREATHER This part replaces 41306-MB0-010.

41306-MB0-020

$8.87

4

CAP, BREATHER

41306-MB0-020

$8.87

5

GEAR SET, FINAL

41310-MM8-305

$492.22

6

CASE SET, FINAL

41311-MM8-305

Unavailable

7

COVER, GEAR CASE This part replaces 41321-ME5-770.

41321-ME5-771

$143.43

8

PLATE, DUST GUARD

41324-MB0-010

$131.29

9

RETAINER, BEARING

41331-ME9-010

$128.05

10

LOCK A, BEARING ADJ.

41332-415-000

$2.43

10

LOCK B, BEARING ADJ.

41333-415-000

$2.43

11

JOINT, PINION

41410-ME9-770

$141.43

12

HOLDER, O-RING

41433-MB0-010

$12.48

13

PIN, RING GEAR STOPPER

41436-MB0-310

$30.85

14

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.46

14

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.11

15

SHIM A, PINION GEAR (1.82)

41450-MG8-000

$7.22

15

SHIM B, PINION GEAR (1.88)

41451-MG8-000

$7.22

15

SHIM C, PINION GEAR (1.94)

41452-MG8-000

$6.88

15

SHIM D, PINION GEAR (2.00)

41453-MG8-000

$6.88

15

SHIM E, PINION GEAR (2.06)

41454-MG8-000

$6.88

15

SHIM F, PINION GEAR (2.12)

41455-MG8-000

$6.88

15

SHIM G, PINION GEAR (2.18)

41456-MG8-000

$6.88

16

WASHER, SPECIAL (35X40)

41510-MB0-003

$11.86

17

SPACER A, RING GEAR (1.82)

41530-MB0-000

$16.09

17

SPACER B, RING GEAR (1.88)

41531-MB0-000

$16.09

17

SPACER C, RING GEAR (1.94)

41532-MB0-000

$16.09

17

SPACER D, RING GEAR (2.00)

41533-MB0-000

$16.09

17

SPACER E, RING GEAR (2.06)

41534-MB0-000

$16.09

17

SPACER F, RING GEAR (2.12)

41535-MB0-000

$16.09

17

SPACER G, RING GEAR (2.18)

41536-MB0-000

$16.09

17

SPACER H, RING GEAR (2.24)

41537-MB0-000

$16.09

17

SPACER I, RING GEAR (2.30)

41538-MB0-000

$16.09

18

COLLAR B, RR. DISTANCE

42625-MAH-000

$35.62

18

COLLAR B, RR. DISTANCE This part replaces 42625-MB4-000.

42625-MAH-000

$35.62

19

BOLT, SOCKET (8X11)

90109-ME5-770

$5.70

20

BOLT, FLANGE (8X27)

90133-MB0-000

$8.06

21

BOLT, FLANGE (10X35)

90134-HA0-000

$7.85

22

BOLT, HEX. (6X16)

90170-MB0-000

$2.46

23

NUT, FLANGE (18MM)

90305-MB4-003

$12.38

24

NUT, HEX. (16MM)

90381-MT3-000

$7.20

25

WASHER (8MM)

90471-580-000

$2.92

26

BEARING, RADIAL BALL (16012C3)

91051-MB0-005

$116.86

26

BEARING, RADIAL BALL (16012C3) This part replaces 91051-MG8-005.

91051-MB0-005

$116.86

27

BEARING, RADIAL BALL (57/34C3)

91052-MB0-003

$44.68

27

BEARING, RADIAL BALL (57/34C3) This part replaces 91052-MG8-005.

91052-MB0-003

$44.68

28

BEARING, RADIAL BALL (6305)

91061-MB0-005

$120.98

28

BEARING, RADIAL BALL (6305) This part replaces 91061-MG8-005.

91061-MB0-005

$120.98

29

BEARING, NEEDLE (19/18) (KOYO) This part replaces 91062-MB4-773.

91062-MG8-005

$44.78

29

BEARING, NEEDLE (19/18) (KOYO)

91062-MG8-005

$44.78

30

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$11.65

30

OIL SEAL (34X50X7) (ARAI) This part replaces 91261-MB0-005.

91261-MB0-003

$11.65

31

OIL SEAL (39X51X7) (NOK) This part replaces 91262-ME9-003.

91262-ME9-005

$14.98

31

OIL SEAL (39X51X7) (NOK)

91262-ME9-005

$14.98

32

OIL SEAL (60X80X8) (ARAI)

91265-MB0-003

$14.31

33

O-RING (30.8MM)

91302-001-020

$3.62

34

O-RING (35.2X2.4) (NOK)

91356-MB0-005

$3.33

35

O-RING (58.5X3.5)

91359-MB0-000

$5.23

36

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

37

BOLT, STUD (10X50)

92700-10050-0E

Unavailable

38

WASHER, PLAIN (6MM)

94101-06800

Unavailable
