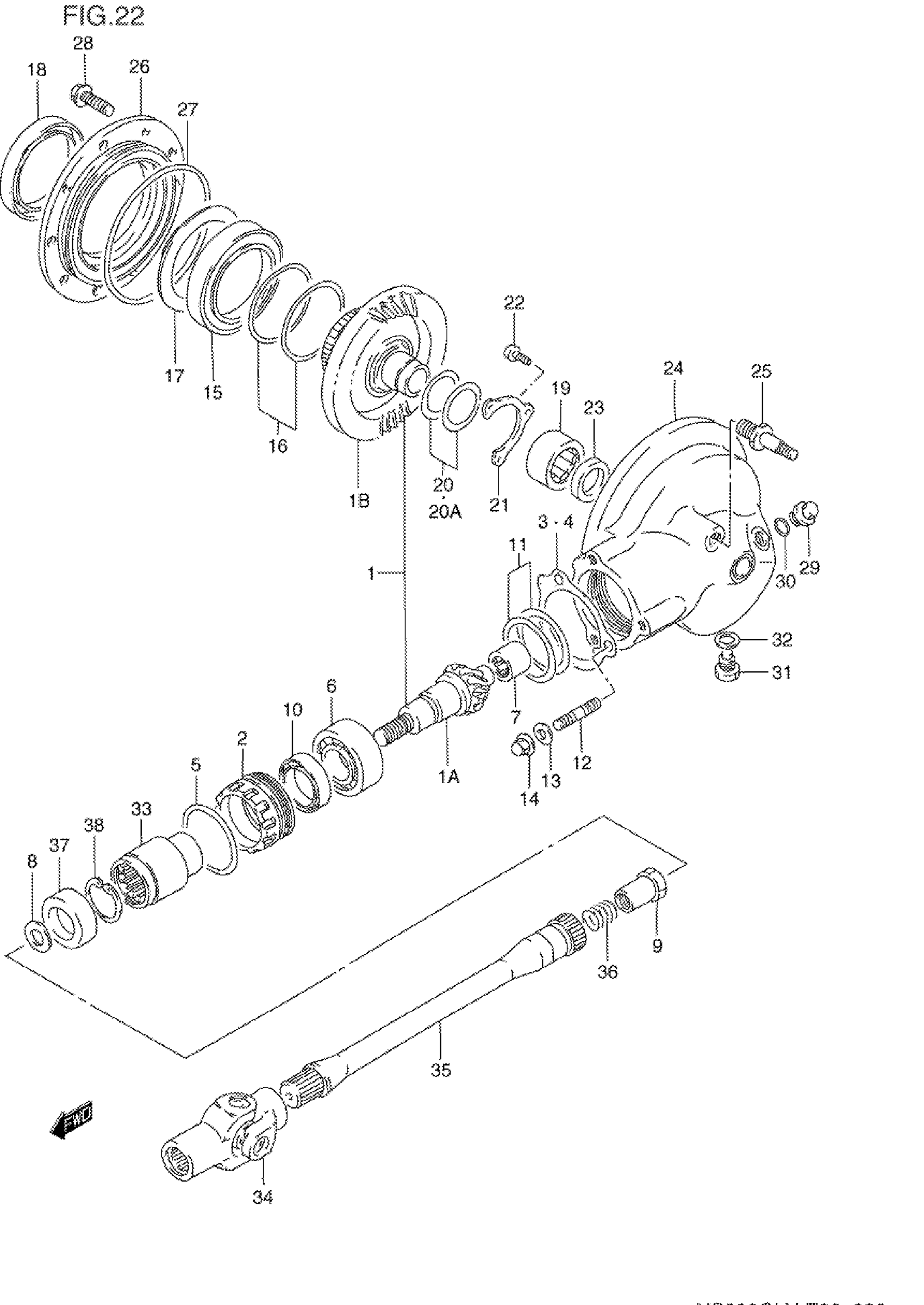

Suzuki VS800GLV (1997) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL BEVEL | Includes Item(s) 1 - 33 This part replaces 27300-38835.

27300-38836

Unavailable

1

GEAR, FINAL DRIVE BEVEL (NT:11) | ->27311-38A00 USED WITH27320-45C01 This part replaces 27300-45831.

27311-38A00

$331.60

1A

GEAR, DRIVE BEVEL (NT:11)

27311-38A00

$331.60

1B

GEAR, DRIVEN BEVEL (NT:34)

27320-45C01

$515.82

2

STOPPER, BEARING

27312-38A00

$82.08

3

PLATE

27313-38A00

$8.32

4

PLATE

27313-38A10

$8.32

5

O RING (D:1.9,ID:61.6)

09280-62002

$2.97

6

BEARING (30X62X23.8)

09267-30005

$129.92

7

BEARING (17X32X16)

09263-17028

$53.02

8

WASHER (16X29X4)

09160-16029

$6.90

9

NUT

09159-16010

$9.03

10

OIL SEAL (38X54X6)

09283-38009

$13.30

11

SHIM SET, FINAL | T:0.3/0.35/0.4/0.5/0.6

27445-38810

$31.82

12

STUD BOLT

09108-10095

$6.22

13

LOCK WASHER

09164-10008

$1.73

14

NUT

09159-10026

$5.67

15

BEARING, RH

09262-70001

$153.17

16

SHIM SET, DRIVE GEAR BEARING | T:0.35/0.4/0.5/0.6

27327-34810

$43.40

17

PLATE

27328-34200

$8.32

18

OIL SEAL, RH

09289-70001

$46.71

19

BEARING, LH

09263-32007

$88.12

20

SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/1.35

27326-34820

Unavailable

20A

SHIM SET, FINAL DRIVE GEAR | T:1.4/1.45/1.5

27326-34810

Unavailable

21

RETAINER, BEARING

27329-34200

Unavailable

22

SCREW | MODEL N/P This part replaces 02112-06128.

02112-06127

$1.83

22

SCREW | MODEL R/S/T/V This part replaces 02112-06123.

02112-0612A

$1.43

23

OIL SEAL (30X42X7)

09283-30028

$8.79

24

CASE, FINAL GEAR

27450-38A12

Unavailable

25

STUD BOLT

27481-38A01

$14.07

26

CASE, FINAL GEAR BEARING

27460-07A01

Unavailable

27

O RING (D:3.5,ID:131.6)

09280-00015

$11.82

28

BOLT | MODEL N/P This part replaces 01517-08258.

01550-08257

$2.80

28

BOLT | MODEL R/S/T/V This part replaces 01550-08253.

01550-0825A

$2.31

29

PLUG, OIL FILLER

09247-18001

$9.60

30

O RING (D:2.4,ID:17.8)

09280-18004

$4.66

31

PLUG, OIL DRAIN | MODEL N/P/R/S/T This part replaces 09247-14019.

09247-14036

$5.58

31

PLUG (MAGNETO) | MODEL V This part replaces 09247-14001.

09247-14002

$4.73

32

GASKET (14.1X18X1.5) | MODEL N/P/R

09168-14004

$1.69

32

GASKET (13.8X18.8X0.4) | MODEL S/T

09168-14002

$2.83

33

COUPLING, PROPELLER SHAFT

27172-38A00

$48.55

34

YOKE, UNIVERSAL JOINT This part replaces 27100-38A50.

27100-38A60

$387.42

35

SHAFT, PROPELLER

27151-38A01

Unavailable

36

SPRING

09440-18019

$2.80

37

OIL SEAL (28.4X48X15)

09283-30051

$9.46

38

CIRCLIP

09381-40003

$4.19
