1997 Suzuki VS800GLV OIL Pump - Fuel Pump Diagram

← All diagrams

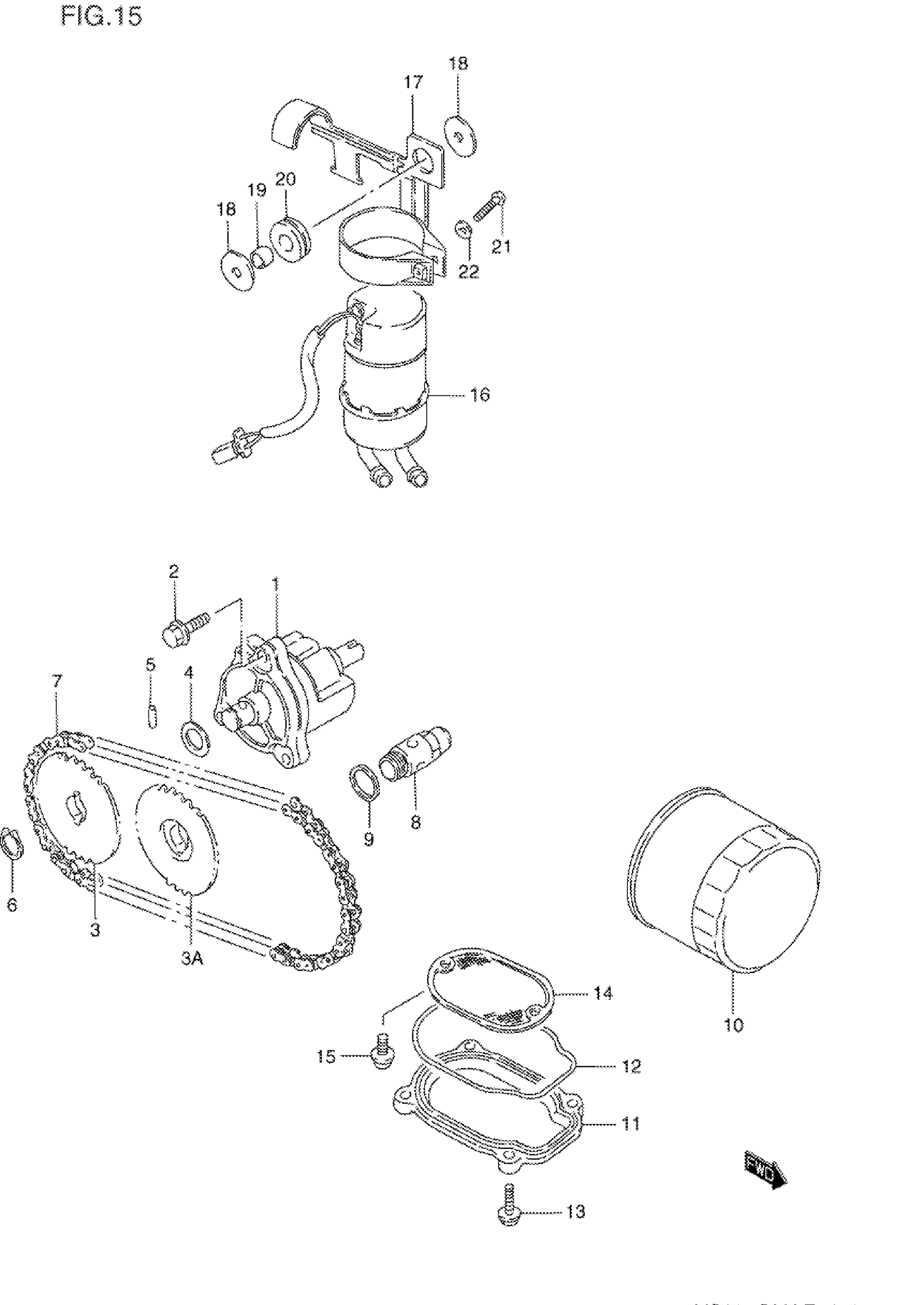

Find the part on the OIL Pump - Fuel Pump diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki VS800GLV OIL Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, OIL

16400-38A01

1

$250.27

In stock

2

BOLT | MODEL N/P This part replaces 01517-06257.

01550-06257

3
Out of stock

2

BOLT | MODEL R/S/T/V This part replaces 01550-06253.

01550-0625A

3
Out of stock

3

SPROCKET, OIL PUMP DRIVEN | MODEL N/P/R

16331-38A00

1
Out of stock

3A

SPROCKET, OIL PUMP DRIVEN | MODEL S/T/V

16331-38A10

1
Out of stock

4

WASHER

08221-12205

1

$2.50

In stock

5

PIN

09261-05006

1

$1.83

In stock

6

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

7

CHAIN, OIL PUMP DRIVE

16310-38A00

1

$38.30

In stock

8

VALVE ASSY, OIL RELIEF

16440-24A01

1
Out of stock

9

GASKET

09168-16002

1
Out of stock

10

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

1
Out of stock

11

CAP, OIL STRAINER

16523-38A00

1

$35.78

In stock

12

O RING

16528-38A00

1

$13.27

In stock

13

4

$2.43

In stock

13

BOLT | MODEL R/S/T/V This part replaces 01550-06203.

01550-0620A

4
Out of stock

14

STRAINER, OIL

16520-38A00

1

$9.17

In stock

15

SCREW | MODEL N/P This part replaces 02112-75126.

02112-7512A

2
Out of stock

15

SCREW | MODEL R/S/T/V This part replaces 02112-75123.

02112-7512A

2
Out of stock

16

PUMP ASSY,FUEL This part replaces 15100-38A10.

15100-38A11

1
Out of stock

17

BRACKET, FUEL PUMP

15110-38A10

1

$17.40

In stock

18

2

$2.05

In stock

19

SPACER

09180-06082

1

$2.65

In stock

20

CUSHION

09320-10014

1

$2.92

In stock

21

SCREW | MODEL N/P This part replaces 02112-04208.

02112-0420A

1
Out of stock

21

SCREW | MODEL R/S/T/V This part replaces 02142-04203.

02142-0420B

1
Out of stock

22

1

$2.03

In stock
