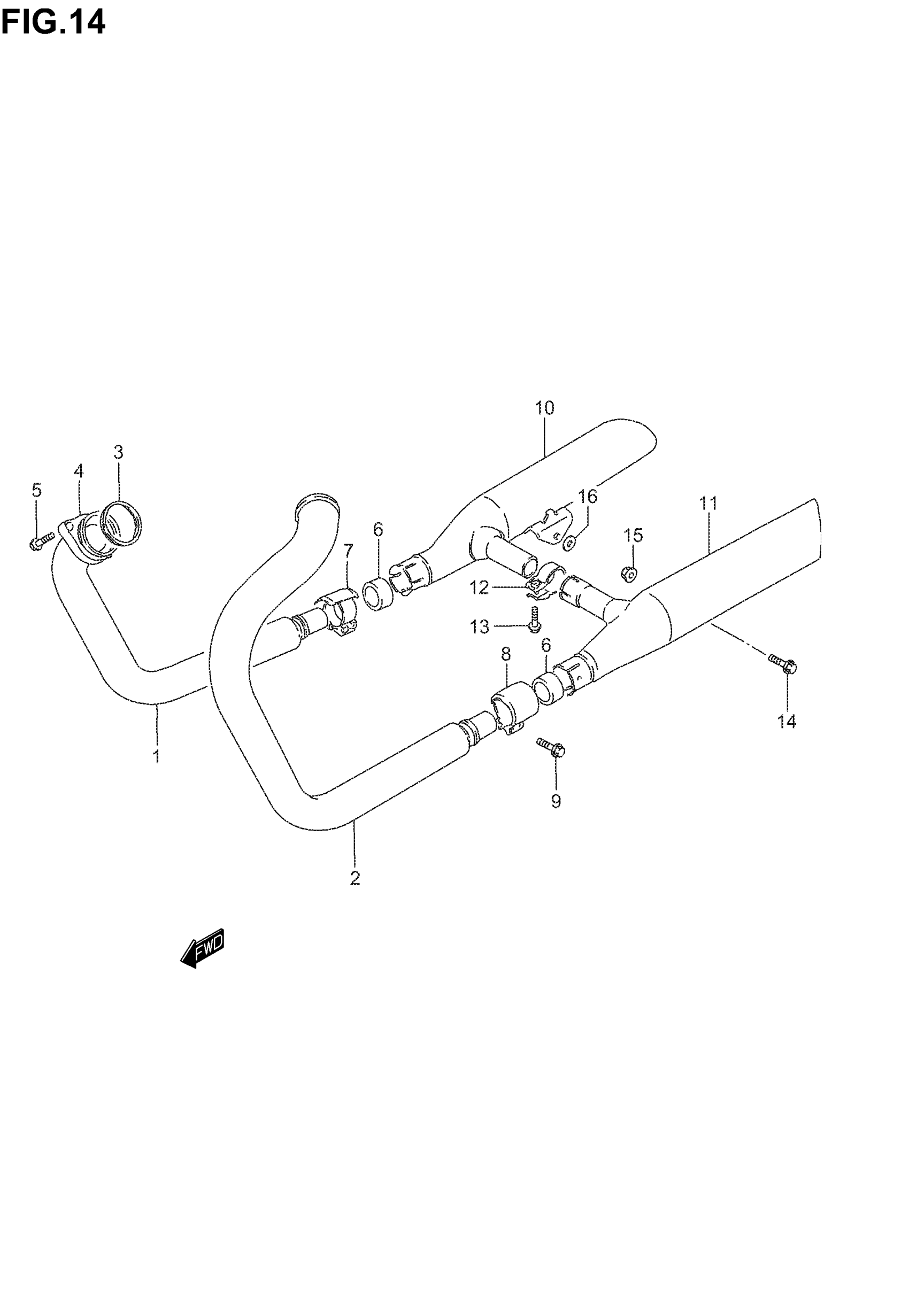

Suzuki VS800GL (2005) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-38A01

$341.80

2

PIPE, EXHAUST LH

14160-38A02

$354.71

3

GASKET, EXHAUST PIPE

14181-45C00

$6.75

4

CLAMP, EXHAUST PIPE

14182-38A02

$47.90

5

BOLT (8X35)

09104-08026

$3.44

6

CONNECTOR, MUFFLER

14771-30E00

$25.18

7

CLAMP, MUFFLER CONNECTOR RH

14459-38A00

$16.77

8

CLAMP, MUFFLER CONNECTOR LH

14469-38A00

$16.77

9

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

10

MUFFLER, RH | MODEL K1/K2/K3/K4

14310-38A72-H01

Unavailable

10

MUFFLER, RH | MODEL K5

14310-38A90-H01

Unavailable

11

MUFFLER, LH | MODEL K1/K2/K3/K4

14340-38A72-H01

Unavailable

11

MUFFLER, LH | MODEL K5

14340-38A90-H01

Unavailable

12

CLAMP, EXHAUST COUPLER

14772-38B00

$10.58

13

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

14

BOLT

01550-08307

$3.24

15

NUT This part replaces 08319-31083.

08319-3108A

$2.31

16

WASHER (8.5X18X3.2) | RH ONLY

09160-08122

$3.00
