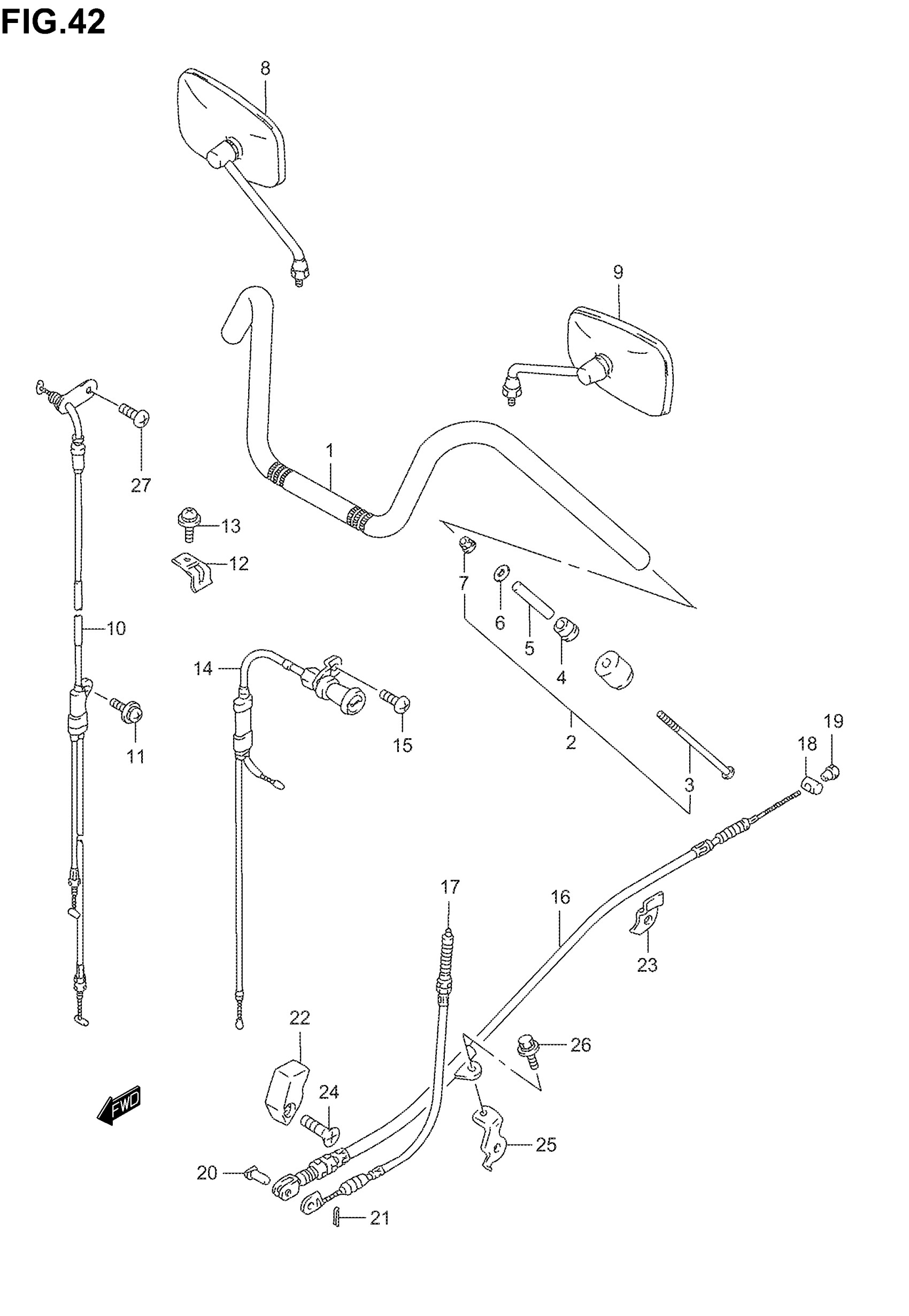

Suzuki VS800GL (2005) HANDLEBAR (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

HANDLEBAR

56111-38E00

Unavailable

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 7

56200-48831

$99.47

3

SCREW

09127-06019

$4.53

4

EXPANDER

56272-26D01

$9.62

5

SPACER

56276-17D00

$4.78

6

WASHER

09160-06121

$3.67

7

NUT

09159-06024

$2.12

8

MIRROR ASSY,REA This part replaces 56500-38A41.

56500-38A42

Unavailable

9

MIRROR ASSY REA This part replaces 56600-38A41.

56600-38A42

Unavailable

10

CABLE ASSY, THROTTLE

58300-39E00

$55.90

11

SCREW This part replaces 02112-75123.

02112-7512A

$2.43

12

CLAMP, THROTTLE CABLE

58621-38A00

$5.12

13

SCREW This part replaces 02112-75123.

02112-7512A

$2.43

14

CABLE ASSY, STARTER

58400-38A14

$62.08

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.38

16

CABLE, REAR BRAKE

58510-38A01

$161.17

17

CABLE, STOP LAMP SWITCH

58830-38A00

$39.95

18

PIN, REAR

09209-13018

$3.13

19

.NUT This part replaces 09150-06014.

09150-06010

$2.80

20

PIN, FRONT

09200-05001

$1.52

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

22

GUIDE, REAR BRAKE CABLE

58631-38A00

Unavailable

23

CLAMP, REAR BRAKE CABLE

58721-38A00

Unavailable

24

SCREW This part replaces 02122-06203.

02122-0620A

$1.45

25

BRACKET, REAR BRAKE CABLE

43275-38A00

Unavailable

26

BOLT This part replaces 01580-06163.

01580-0616A

$2.43

27

SCREW

02142-05087

$1.43
