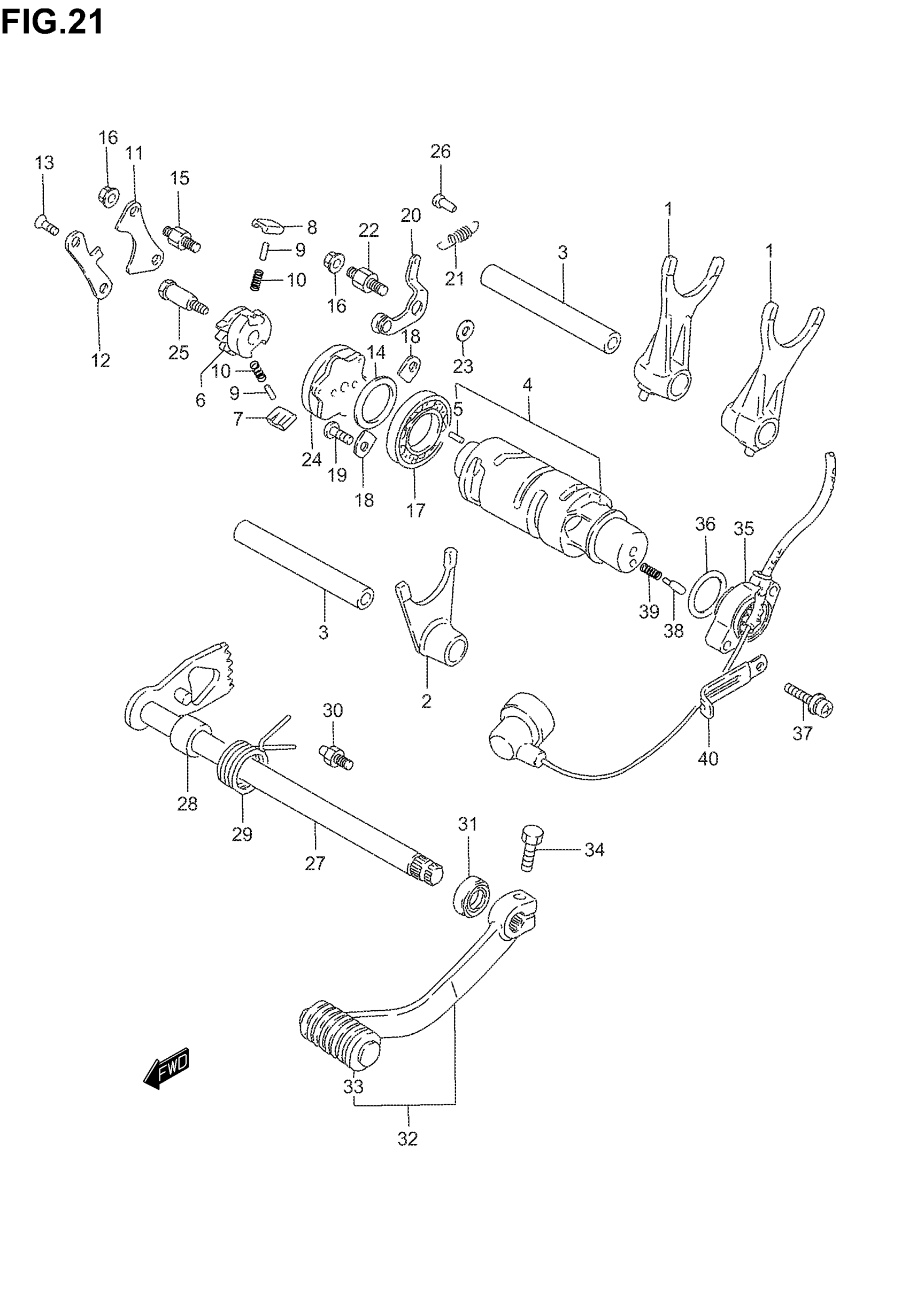

Suzuki VS800GL (2005) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38A02

$42.53

2

FORK, GEAR SHIFTING NO.2

25221-38A01

Unavailable

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

$33.02

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-38A03

Unavailable

5

PIN (4X13.8)

04221-04089

$1.15

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

7

PAWL, GEAR SHIFT NO.1

25323-34201

$6.91

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.11

9

PIN

09261-05003

$1.69

10

SPRING

09440-04003

$1.52

11

LIFTER, PAWL

25331-38A00

Unavailable

12

GUIDE, CAM

25341-38A00

Unavailable

13

SCREW (6X12)

09126-06011

$2.09

14

WASHER (25X32X3)

09160-25059

$7.20

15

BOSS | MODEL K1

25332-38A00

Unavailable

15

BOSS | MODEL K2/K3/K4/K5

25332-38A10

Unavailable

16

NUT This part replaces 08316-10063.

08316-1006B

$2.57

17

BEARING (25X47X8)

09262-25006

$23.85

18

RETAINER, BEARING

24741-21A00

$2.80

19

SCREW (6X12)

09125-06086

$3.00

20

STOPPER, CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$4.28

22

SUPPORT | MODEL K1

25355-38A00

Unavailable

22

SUPPORT | MODEL K2/K3/K4/K5

25355-38A10

Unavailable

23

WASHER

08211-06141

$1.66

24

PLATE, STOPPER

25380-38A02

Unavailable

25

PIN

25312-38A00

$6.01

26

HOOK

09223-04001

$1.83

27

SHAFT, GEAR SHIFTING

25510-38A00

$121.05

28

SPACER (12X20X15.3)

09180-12068

$2.63

29

SPRING

09444-26013

$2.94

30

STOPPER, ARM

25671-01011

$4.28

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.87

32

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 33

25600-38A00

$67.40

33

COVER

25652-20C00

$5.21

34

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.82

35

BODY, SWITCH

37720-38A40

$78.27

36

O RING (D:2.4,ID:25.7)

09280-26007

$6.15

37

SCREW This part replaces 02112-75203.

02112-7520A

$2.72

38

CONTACT, SWITCH

09209-05011

$2.02

39

SPRING

09440-04010

$1.52

40

CLAMP This part replaces 09404-06432.

09404-06039

$1.79
