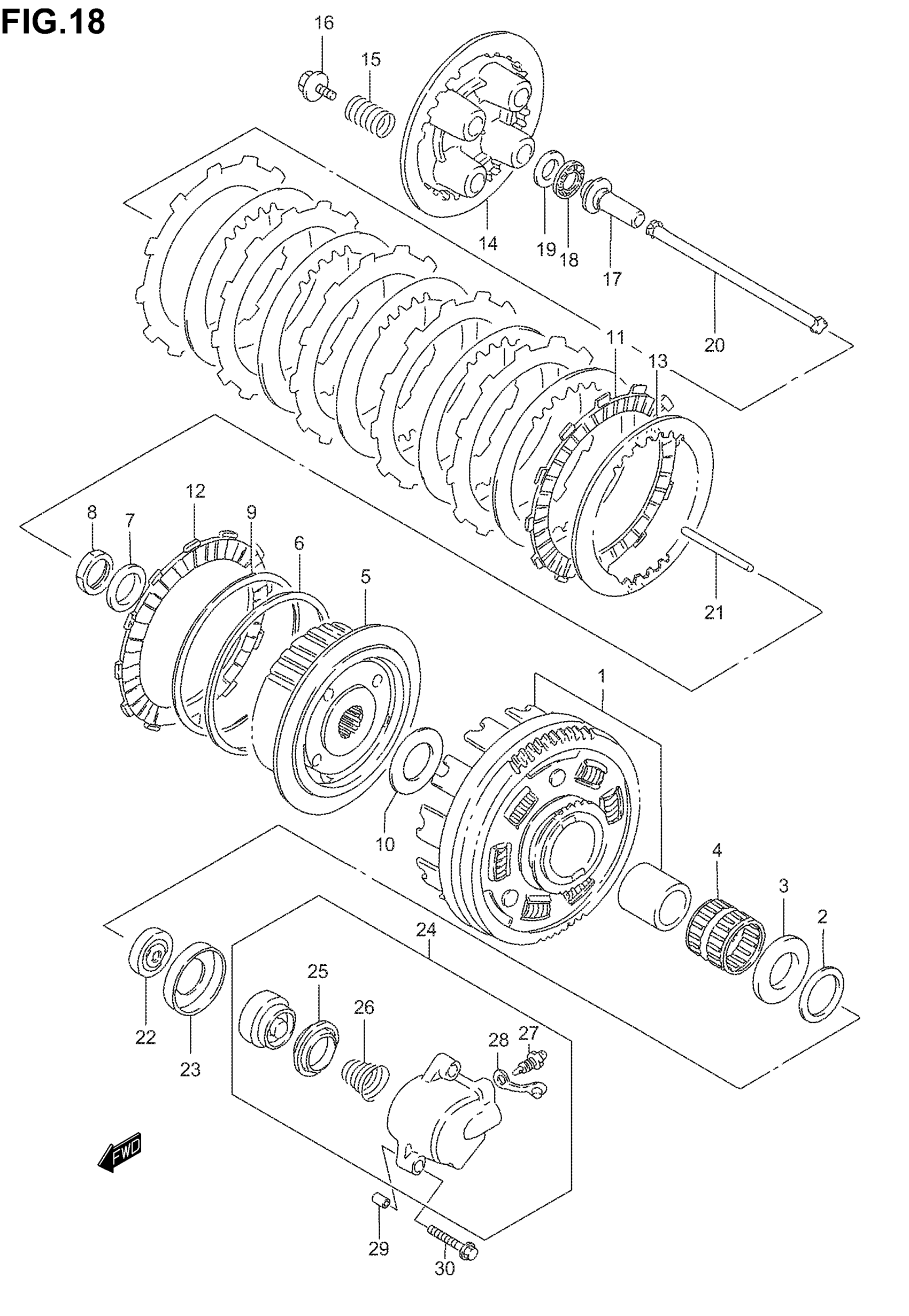

Suzuki VS800GL (2005) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38840

$515.82

2

SPACER, INNER (25X38X6.5)

09180-25077

$14.72

3

WASHER (25X50X2.5)

09160-25055

$9.37

4

BEARING (35X40X35.8)

09263-35017

$38.42

5

HUB, SLEEVE This part replaces 21410-38A00.

21410-41F00

$161.65

6

SEAT, WAVE WASHER

21471-37400

$9.36

7

WASHER, WAVE

09164-22007

$7.98

8

NUT

09140-22008

$7.98

9

WASHER

09164-00004

$10.70

10

WASHER

09160-25055

$9.37

11

PLATE, DRIVE NO.1

21441-37400

$17.34

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.86

13

PLATE, DRIVEN

21451-14A00

$9.11

14

DISC, PRESSURE

21462-27A00

$65.10

15

SPRING

09440-20013

$3.33

16

BOLT (6X16)

09116-06167

$2.25

17

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

$23.54

18

BEARING (15X28X2)

09263-15003

$7.70

19

WASHER (15.5X28X1)

09160-15045

$3.62

20

ROD, PUSH RH

23110-27A00

$20.75

21

ROD, PUSH LH

23111-38A00

$10.97

22

OIL SEAL (6X34X11)

09285-06017

$10.79

23

RETAINER

23117-38A00

$4.97

24

CYLINDER COMP,C | Includes Item(s) 25 - 28 This part replaces 23160-38A00.

23160-38A01

$93.99

25

CUP

23163-05A00

$7.42

26

SPRING

23164-05A00

$4.15

27

BLEEDER

59121-01A00

$8.35

28

CAP

59122-01A00

$4.15

29

PIN

04211-09129

$1.70

30

BOLT This part replaces 01550-06303.

01550-0630A

$2.38
