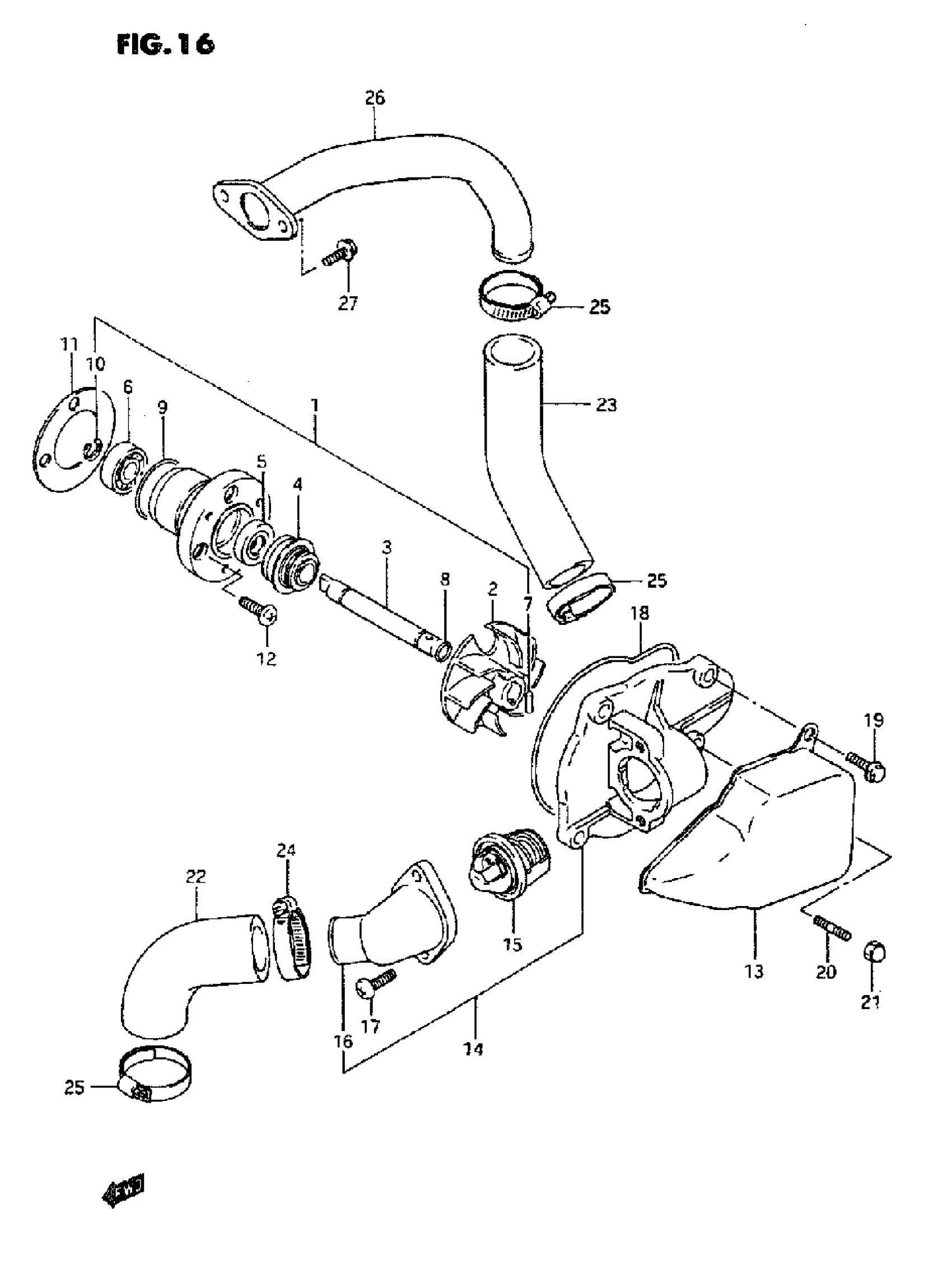

Suzuki VS800GL (1995) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-38A02.

17400-38A11

$150.14

2

IMPELLER

17491-38A00

$31.55

3

SHAFT

17511-38A00

Unavailable

4

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

$26.75

5

.SEAL OIL (10X21X5) | MODEL N/P/R/S This part replaces 17461-38A00.

09283-10004

$4.47

5

.SEAL OIL (10X21X5) | MODEL T

09283-10004

$4.47

6

BEARING (10X26X8) | MODEL N/P/R/S This part replaces 17451-38A00.

09262-10014

$14.44

6

BEARING | MODEL T

09262-10004

$35.53

7

PIN

17516-38A00

Unavailable

8

O RING

17515-38A00

$2.17

9

.O RING This part replaces 17417-38A00.

17417-38A01

$3.65

10

.E-RING This part replaces 08332-11086.

08332-1108A

$1.77

11

GASKET, WATER PUMP

17431-38A10

$5.63

12

SCREW | MODEL N/P/R This part replaces 02112-06126.

02112-0612A

$1.43

12

SCREW | MODEL S/T This part replaces 02112-06123.

02112-0612A

$1.43

13

COVER, WATER PUMP

17441-38A02

Unavailable

14

CASE ASSY,WATER This part replaces 17410-38A00.

17410-38A01

$149.37

15

THERMOSTAT,WATE This part replaces 17670-33410.

17670-33411

$33.70

16

CONNECTOR

17412-45C00

Unavailable

17

SCREW

02112-06167

$1.43

18

O RING

17435-38A00

$5.91

19

BOLT | MODEL N/P

01547-06207

$2.01

19

BOLT | MODEL R/S/T

01547-06207

$2.01

20

STUD BOLT (6X20) | MODEL N/P

09108-06046

Unavailable

21

NUT, LICENSE HOLDER | MODEL N/P This part replaces 08313-11067.

08313-10067

$1.83

22

HOSE, WATER PUMP IN

17857-38A02

$19.05

23

HOSE, WATER PUMP OUT This part replaces 17858-38A01.

17858-38820

$13.90

24

CLAMP This part replaces 09402-30501.

09402-32511

$9.95

25

CLAMP | MODEL N/P/R This part replaces 09402-30502.

09402-32511

$9.95

25

CLAMP | MODEL S/T

09402-32511

$9.95

26

PIPE, CYLINDER IN

17890-38A00

Unavailable

27

BOLT | MODEL N/P

01547-06167

$1.64

27

BOLT | MODEL R/S/T This part replaces 01547-06163.

01547-0616B

$2.43
