1993 Suzuki VS800GL Rear Wheel Diagram

← All diagrams

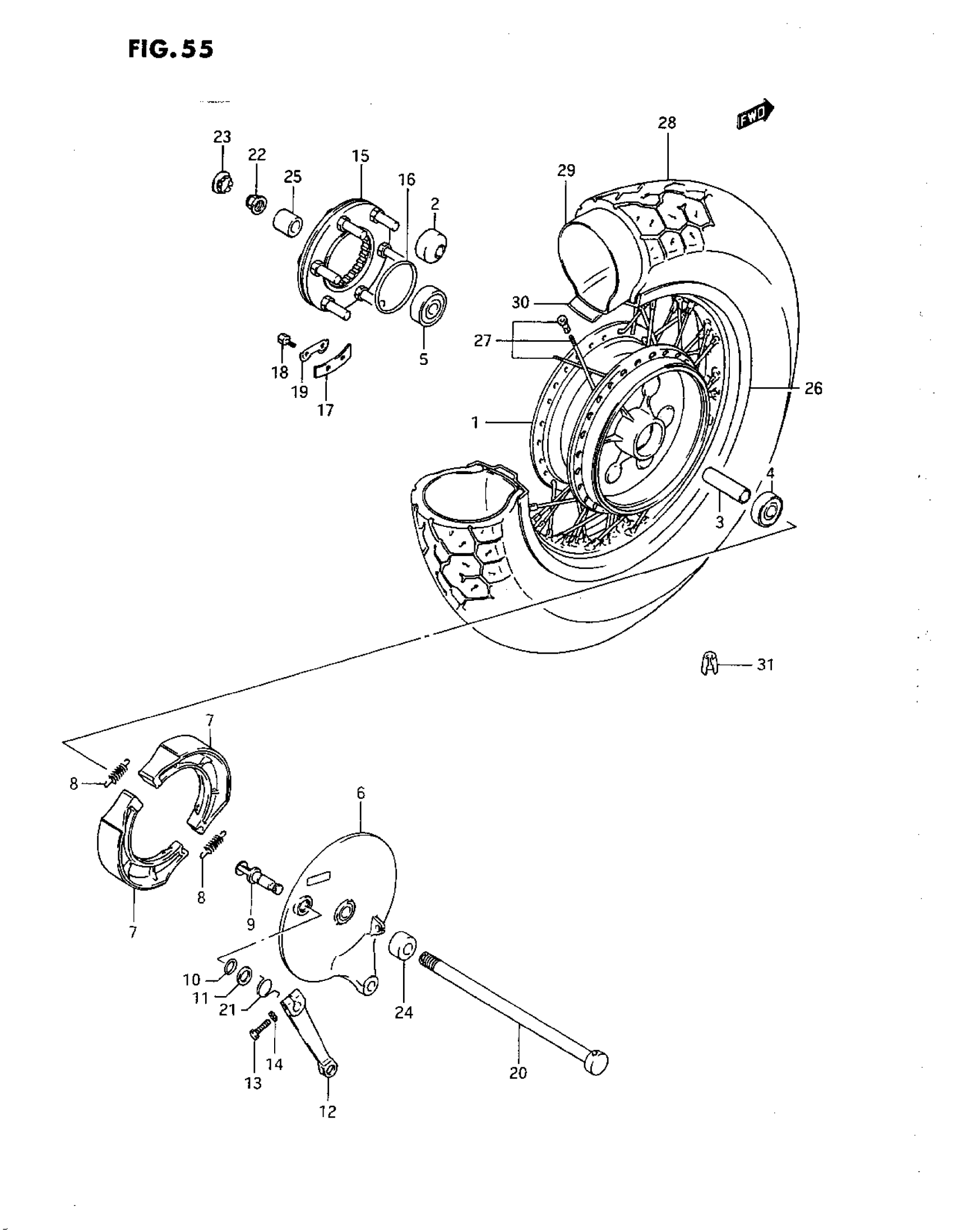

Find the part on the Rear Wheel diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VS800GL Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB SET, REAR WHEEL This part replaces 64100-07860.

64100-07861

1
Out of stock

2

BUSHING

09319-12019

6
Out of stock

3

SPACER, REAR HUB (L:80)

09180-17091

1
Out of stock

4

1

$17.05

In stock

5

BEARING, LH

08143-63037

1
Out of stock

6

PANEL, REAR BRAKE ANCHOR This part replaces 64210-38A20.

64210-38A21

1
Out of stock

7

SHOE SET, BRAKE This part replaces 64410-38A00.

64400-38810

2
Out of stock

8

SPRING

55420-30000

2
Out of stock

9

CAM, BRAKE

64440-38A00

1
Out of stock

10

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

11

WASHER This part replaces 09160-15001.

09160-15048

1
Out of stock

12

LEVER, BRAKE CAM

64451-38A01

1
Out of stock

13

BOLT | MODEL N This part replaces 01107-06257.

01500-06257

1
Out of stock

13

BOLT | MODEL P This part replaces 01137-06258.

01570-06257

1
Out of stock

13

BOLT | MODEL R

01570-06257

1
Out of stock

15

JOINT, HUB DRIVEN | MODEL N/P ->64680-45113 This part replaces 64680-07A01.

64680-45113

1
Out of stock

15

JOINT, HUB DRIVEN | MODEL R

64680-45113

1
Out of stock

16

O-RING

09280-65003

1
Out of stock

17

WASHER, THRUST

64677-45110

3
Out of stock

18

BOLT

09119-06049

6
Out of stock

19

WASHER

09169-06030

3
Out of stock

20

AXLE, REAR (L:302)

64711-38A11

1
Out of stock

21

SPRING, CAM

09448-33006

1
Out of stock

22

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

23

CAP, RH

64791-38B00

1
Out of stock

24

SPACER, RH This part replaces 64741-38A21.

64751-46D00

1
Out of stock

25

SPACER, LH

64772-34201

1
Out of stock

26

RIM, WHEEL (MT3.00X15 M/C) This part replaces 65311-38A01.

65311-38A02

1
Out of stock

27

SPOKE SET

65320-38A01

1
Out of stock

28

TIRE, REAR (140/90-15M/C70H) (BRIDGESTONE)

65100-38A41

1
Out of stock

29

TUBE, WHEEL INNER This part replaces 65200-38A00.

65200-38A70

1
Out of stock

30

PROTECTOR

65261-38A00

1
Out of stock

31

BALANCER, WHEEL (20G) | 0-3, U.R. This part replaces 55412-38A00.

55412-41F00

1
Out of stock

31

BALANCER WHEEL (30G) | 0-3, U.R. This part replaces 55413-38A00.

55413-41F00

1
Out of stock
