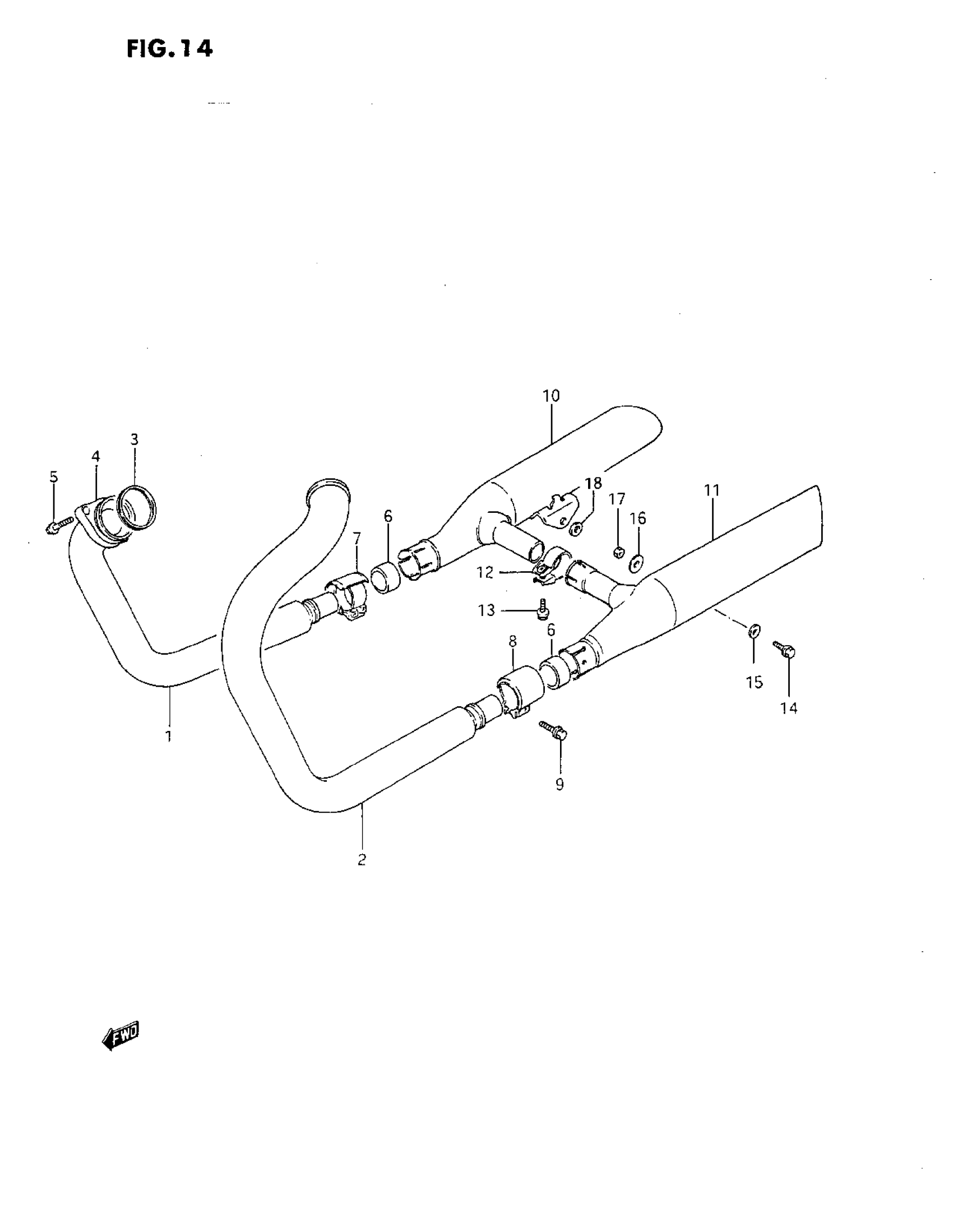

Suzuki VS800GL (1993) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH This part replaces 14150-38A00.

14150-38A01

$341.80

2

PIPE, EXHAUST LH This part replaces 14160-38A01.

14160-38A02

$354.71

3

GASKET, EXHAUST PIPE (NA)

14181-45C00

$6.75

4

CLAMP, EXHAUST PIPE This part replaces 14182-38A01.

14182-38A02

$47.90

5

BOLT

09104-08026

$3.44

6

CONNECTOR, MUFFLER | <-14771-05A01-HL7

14771-05A02

$31.12

7

CLAMP, MUFFLER CONNECTOR RH

14459-38A00

$16.77

8

CLAMP, MUFFLER CONNECTOR LH

14469-38A00

$16.77

9

BOLT

01547-06307

$2.06

10

MUFFLER, RH

14310-38A72-H01

Unavailable

11

MUFFLER, LH

14340-38A72-H01

Unavailable

12

CLAMP, EXHAUST COUPLER

14772-38B00

$10.58

13

BOLT | MODEL N/P This part replaces 01517-06257.

01550-06257

$2.31

13

BOLT | MODEL R

01550-06257

$2.31

14

BOLT | MODEL N/P This part replaces 01107-08307.

01500-08307

$2.80

14

BOLT | MODEL R

01560-08307

$4.70

15

WASHER | MODEL N/P This part replaces 08322-11088.

08322-01087

$1.86

16

WASHER (8.5X26X1.6) | MODEL N/P This part replaces 09160-08004.

09160-08134

$2.06

17

NUT | MODEL N/P This part replaces 08316-26088.

08316-20087

$3.00

17

NUT | MODEL R

08316-10087

$2.24

18

WASHER (8.5X18X3.2) | RH ONLY This part replaces 09160-08078.

09160-08122

$3.00
