1993 Suzuki VS800GL Front Caliper Diagram

← All diagrams

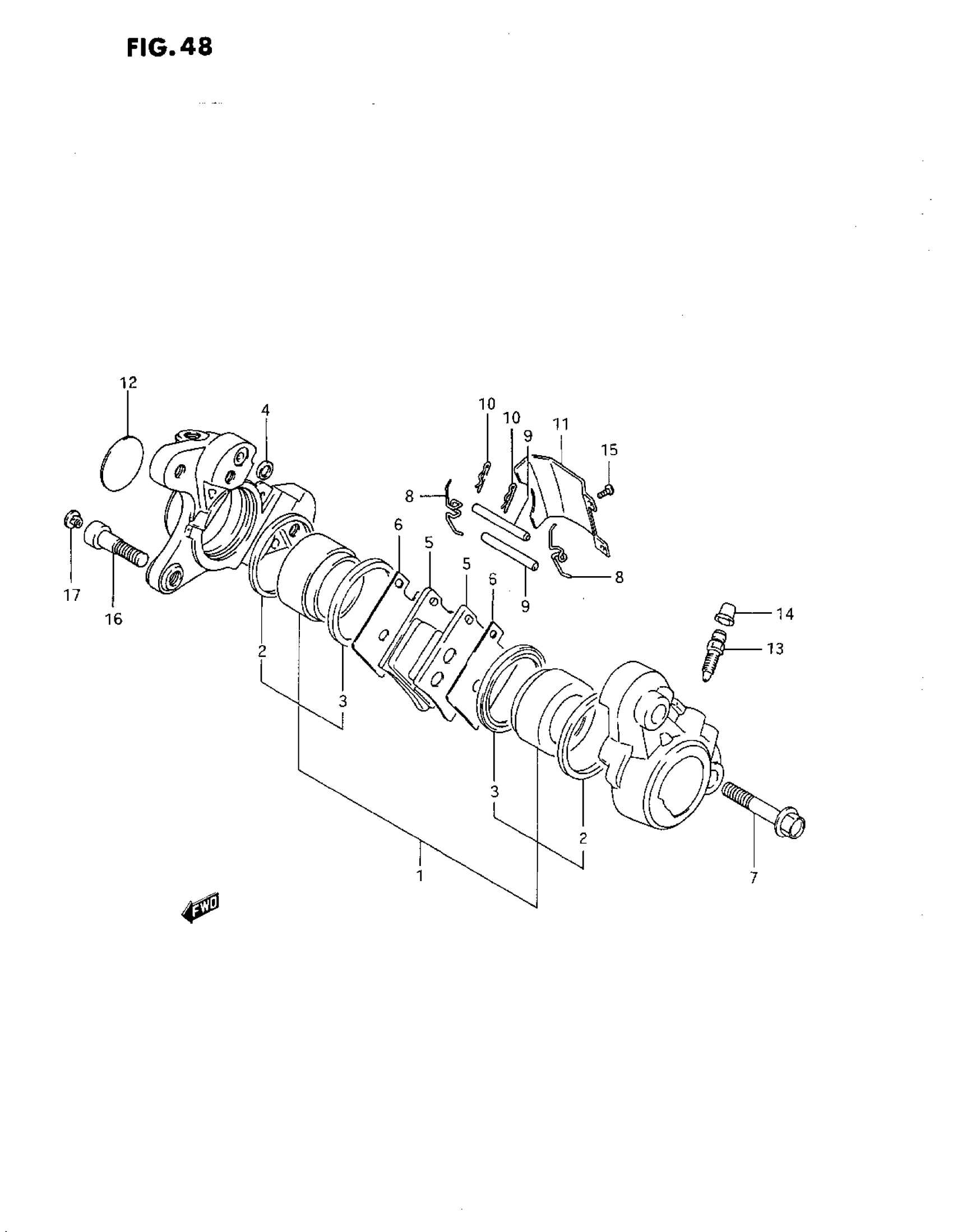

Find the part on the Front Caliper diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VS800GL Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT | ->59100-38A02 This part replaces 59100-38A01.

59100-38A02-999

1
Out of stock

1

PISTON SET

69100-24821

1
Out of stock

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

2
Out of stock

3

BOOT

69108-45000

2
Out of stock

4

SEAL

69107-34200

1
Out of stock

5

PAD SET This part replaces 59130-38B10.

59100-38820

2
Out of stock

6

SHIM

59371-33410

2
Out of stock

7

BOLT

59145-16700

2
Out of stock

8

SPRING

59143-16700

2
Out of stock

9

PIN

69141-45000

2
Out of stock

10

.CLIP, PAD PIN

69142-45000

2
Out of stock

11

COVER This part replaces 59151-38B00.

59151-38B01

1
Out of stock

12

CAP, CALIPER

59152-24A00

1
Out of stock

13

BLEEDER

59121-18410

1
Out of stock

14

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

15

SCREW (4X6) This part replaces 59153-38B00.

59153-38B10

2
Out of stock

16

BOLT

09106-10038

2
Out of stock

17

CAP

09250-08014

2
Out of stock
