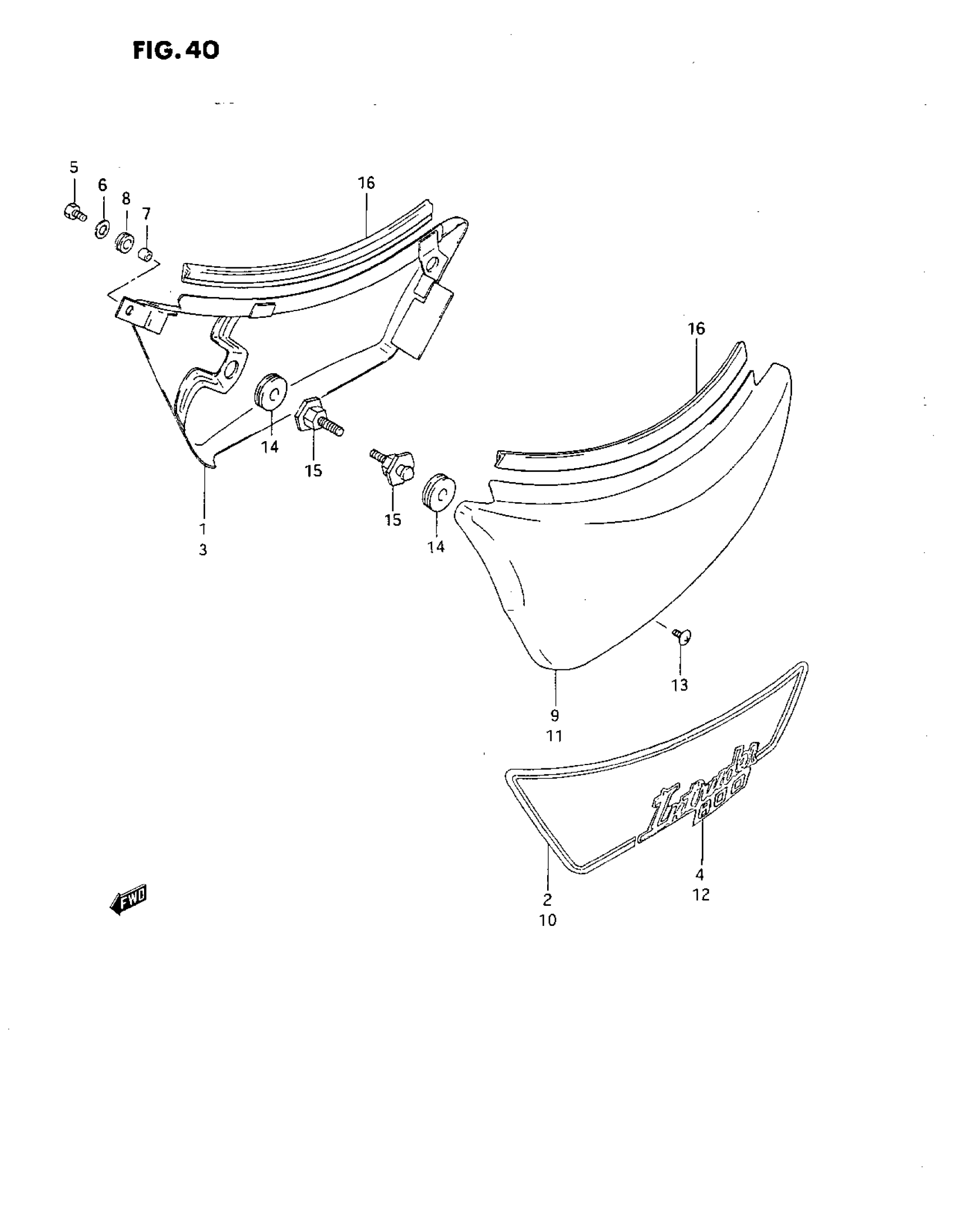

Suzuki VS800GL (1993) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | MODEL N

47100-39A00-03F

Unavailable

1

COVER, FRAME RH (RED) | MODEL N This part replaces 47100-39A00-10X.

47110-38A00-19A

Unavailable

2

TAPE, RH | MODEL N FOR 03F

68135-39A01-M54

Unavailable

2

TAPE, RH | MODEL N FOR 10X

68135-39A01-M55

Unavailable

3

COVER, FRAME RH (RED) | MODEL P/R

47100-39A10-19A

Unavailable

3

COVER, FRAME RH (BLUE) | MODEL P

47100-39A10-0CG

Unavailable

3

COVER ASSY,FRAM | MODEL R This part replaces 47100-39A10-33J.

47110-38A00-13L

$343.45

4

EMBLEM | MODEL P/R FOR 19A

68131-39A00-M55

Unavailable

4

EMBLEM | MODEL P FOR OCG

68131-39A00-A6S

Unavailable

4

EMBLEM | MODEL R FOR 33J

68131-39A00-C2P

Unavailable

5

BOLT, RH

01204-06167

$2.17

6

WASHER

09160-06084

$1.77

7

SPACER This part replaces 09180-06032.

09180-06246

$2.21

8

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.67

9

COVER ASSY,FRAM | MODEL N This part replaces 47200-39A00-03F.

47210-38A00-13L

Unavailable

9

COVER ASSY,FRAM | MODEL N This part replaces 47200-39A00-10X.

47210-38A00-13L

Unavailable

10

TAPE, LH | MODEL N FOR 03F

68145-39A01-M54

Unavailable

10

EMBLEM | MODEL N FOR 10X

68145-39A01-M55

Unavailable

11

COVER, FRAME LH (RED) | MODEL P/R

47200-39A10-19A

Unavailable

11

COVER, FRAME LH (BLUE) | MODEL P

47200-39A10-0CG

Unavailable

11

COVER, FRAME LH (BLACK) | MODEL R This part replaces 47200-39A10-33J.

47210-38A00-33J

Unavailable

12

EMBLEM | MODEL P/R FOR 19A

68131-39A00-M55

Unavailable

12

EMBLEM | MODEL P FOR OCG

68131-39A00-A6S

Unavailable

12

EMBLEM | MODEL R FOR 33J

68131-39A00-C2P

Unavailable

13

STOPPER, CL RLSE CAM SHAFT | MODEL N/P This part replaces 02142-06104.

02142-0610A

$1.38

13

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.38

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

15

BOSS, FRAME COVER

47250-38A01

$6.12

16

MOLDING, FRONT This part replaces 47218-38A00.

68241-04X50-300

$6.89
