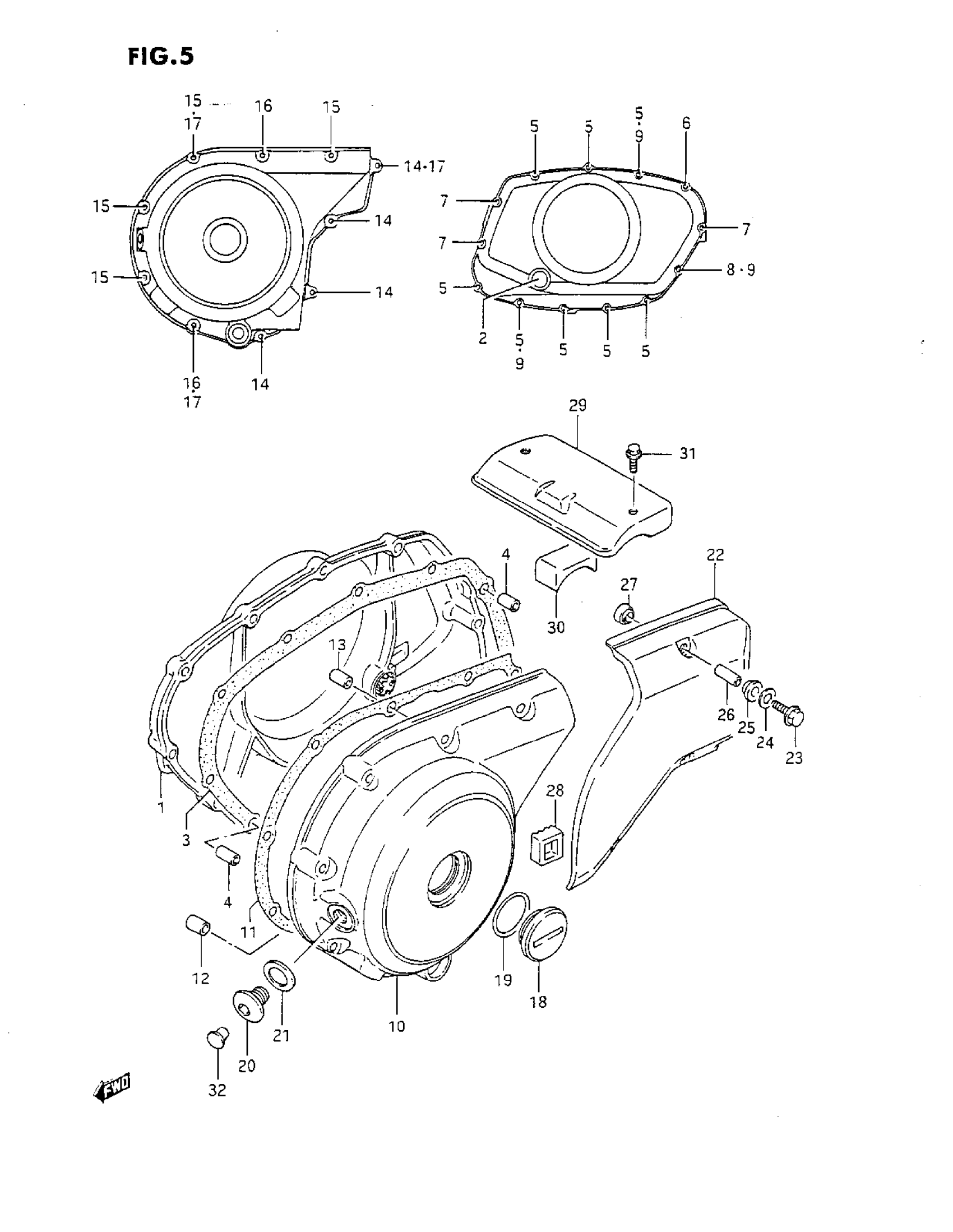

Suzuki VS800GL (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-38A00

$413.45

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER This part replaces 11482-38A00-H17.

11482-41F00

$15.68

4

PIN

04211-09189

$1.64

5

BOLT

01547-06307

$2.06

6

BOLT

01547-06357

$2.01

7

BOLT

01547-06457

$2.31

8

BOLT

01547-06607

$3.47

9

GASKET

09168-06023

$2.01

10

COVER, GENERATOR | MODEL N/P This part replaces 11351-38A01.

11351-38A02

Unavailable

10

COVER, GENERATOR | MODEL R

11351-38A02

Unavailable

11

GASKET, GENERATOR COVER This part replaces 11483-38A00-H17.

11483-41F00

$13.01

12

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

13

PIN

04211-09189

$1.64

14

BOLT

01547-06307

$2.06

15

BOLT

01547-06407

$2.34

16

BOLT

01547-06507

$2.42

17

GASKET

09168-06023

$2.01

18

PLUG, ACCESS

09259-36008

$7.37

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

21

GASKET

09168-14004

$1.69

22

COVER, SECONDARY DRIVE

11361-38A50

Unavailable

23

BOLT

01547-06457

$2.31

24

WASHER This part replaces 09160-06097.

09160-06125

$1.89

25

CUSHION, OUTER

09161-09006

$2.36

26

SPACER, LICENSE LAMP This part replaces 09180-06160.

09180-06278

$4.92

27

CUSHION, INNER

09161-09005

$2.33

28

DAMPER, SECONDARY COVER

11369-38A00

Unavailable

29

COVER, STARTER MOTOR This part replaces 31210-38A00.

31210-38A01

Unavailable

30

DAMPER

31212-38A00

Unavailable

31

BOLT

01547-05087

$1.87

32

CAP

09250-08014

$2.80
