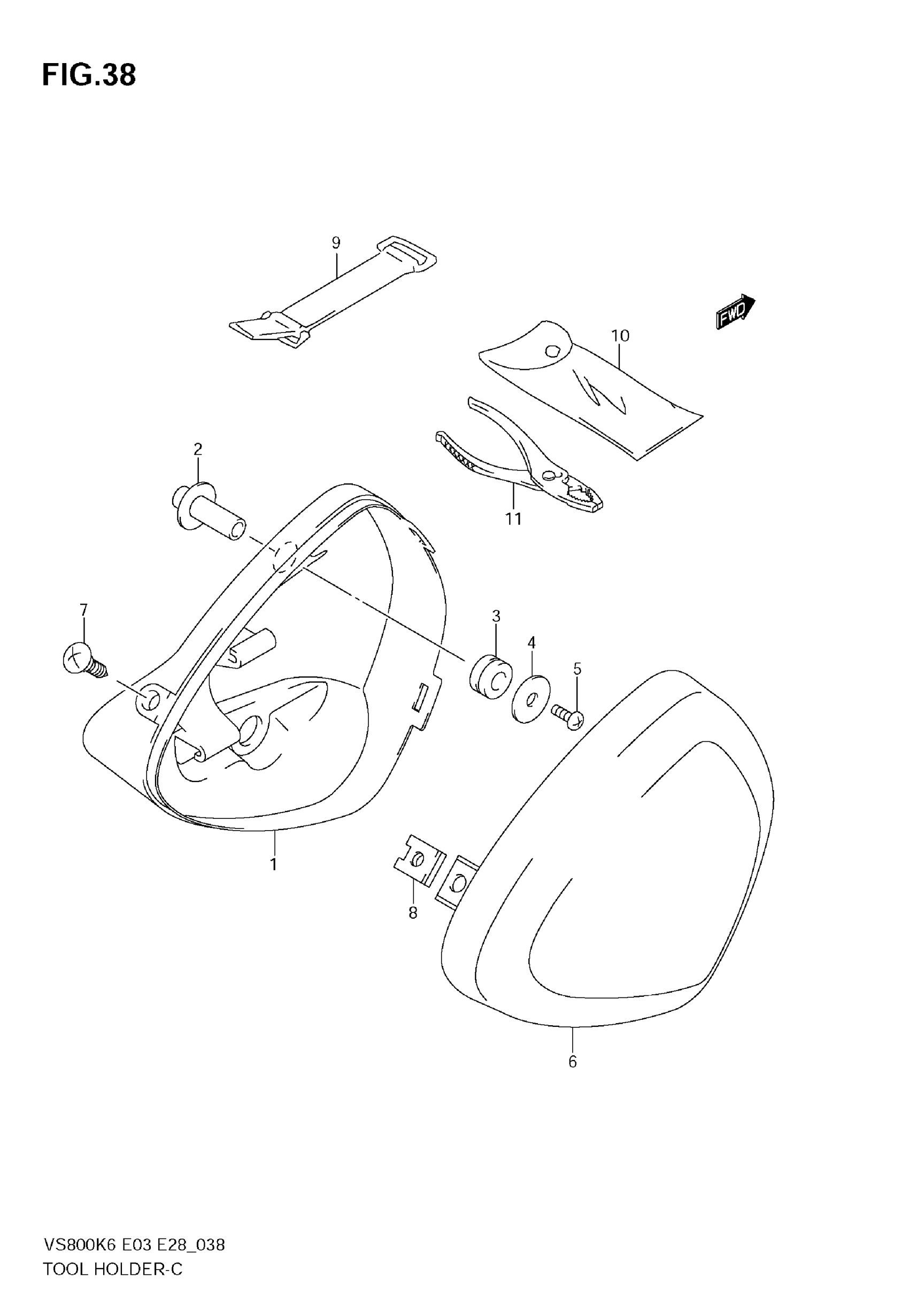

Suzuki VS800 (2009) TOOL HOLDER Diagram

#

Description
Price

1

BODY, TOOL HOLDER This part replaces 47431-39A00.

47431-39A10

$75.95

2

SPACER

47440-39A11

Unavailable

3

CUSHION This part replaces 09320-10052.

09320-10079

$3.32

4

WASHER | MODEL K6 This part replaces 09160-06503.

09160-06054

$1.62

4

WASHER | MODEL K7/K8/K9

09160-06158

$2.50

5

SCREW

02142-0635B

Unavailable

6

CAP, TOOL HOLDER

47432-39A00

$98.10

7

SCREW

09139-06044

$4.21

8

NUT

09148-06018

$2.90

9

BAND, TOOL | MODEL K6

09462-00008

$4.36

9

O RING(D:3.5,ID | MODEL K7/K8/K9 This part replaces 09280-61002.

09280-61004

$2.50

10

TOOL ASSY | MODEL K6

09800-21013

Unavailable

10

TOOL ASSY | MODEL K7/K8/K9 This part replaces 09800-21055.

09800-21102

$18.51

11

PLIER, 150 | MODEL K6

09812-00009

Unavailable
