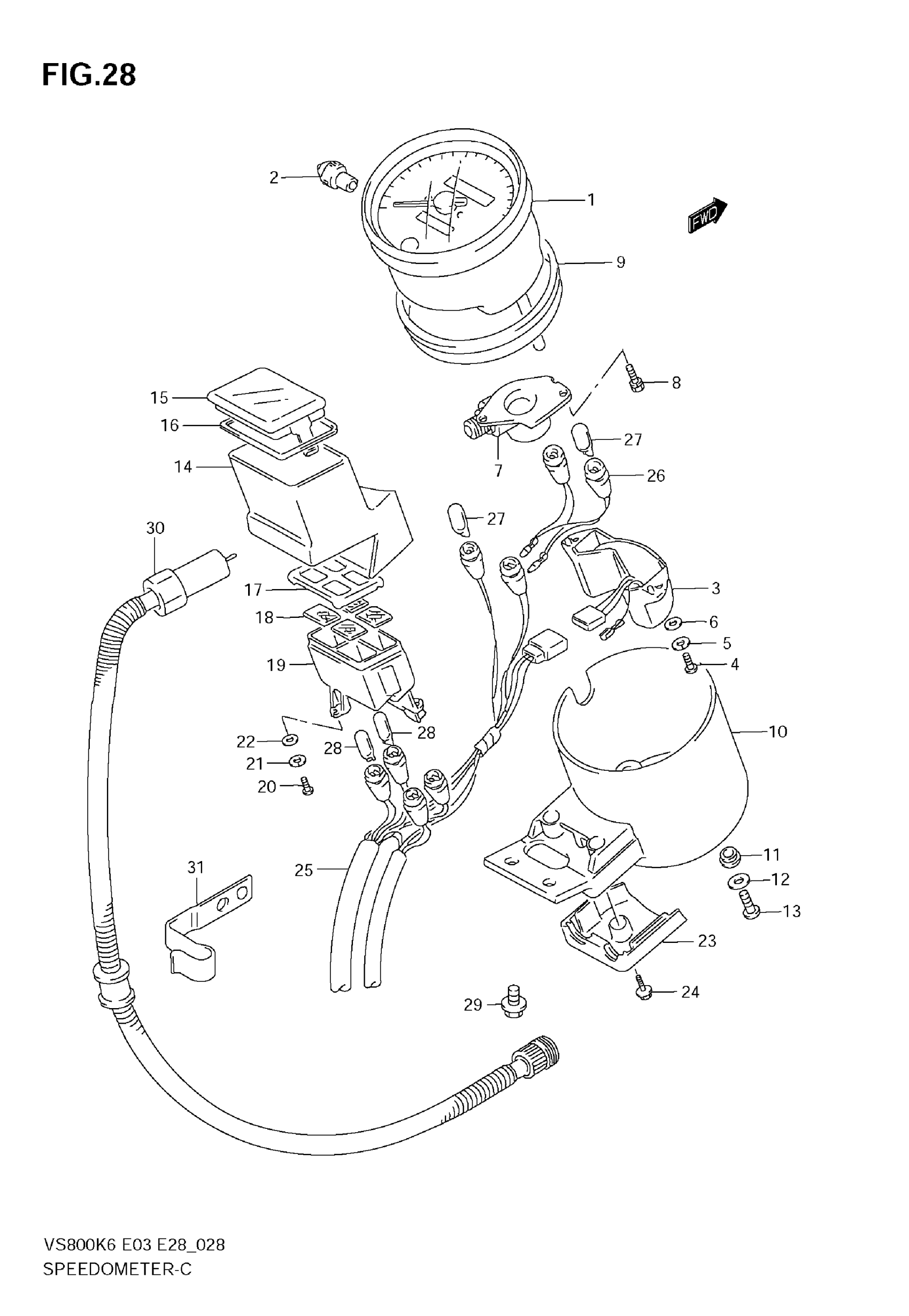

Suzuki VS800 (2009) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-39AP0

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-39AN0

Unavailable

2

KNOB, TRIP

34124-39A10

$17.96

3

UNIT, WATER TEMP WARNING

34490-39A10

$288.20

4

SCREW

02112-0308A

$1.81

5

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.78

6

WASHER This part replaces 08322-01033.

08322-0103B

$1.70

7

BOX, METER GEAR

34131-19B00

Unavailable

8

SCREW

02112-3410A

$2.04

9

CUSHION, METER

34288-39A00

$11.50

10

COVER, METER

34193-39A20

$212.72

11

CUSHION This part replaces 34189-05A30.

34189-05A31

$6.00

12

WASHER

34181-38A00

$3.72

13

SCREW

02112-04087

$1.10

14

BOX, PILOT LAMP

36381-39A20

$120.47

15

LENS, PILOT BOX

36393-39AJ0

$18.22

16

CUSHION

36395-38A00

$8.32

17

PLATE, PILOT LENS

36386-38A00

Unavailable

18

LENS SET, PILOT LAMP

36300-38850

Unavailable

19

CASE, PILOT LAMP

36382-38B30

$24.57

20

SCREW

02112-0308A

$1.81

21

LOCK WASHER

08321-2103B

$1.78

22

WASHER

08322-0103B

$1.70

23

COVER, PILOT BOX

34152-39A21

$83.62

24

SCREW

02112-3408A

$2.58

25

SOCKET, METER NO.1

34173-39AN0

Unavailable

26

SOCKET, METER NO.2

34174-39AJ0

Unavailable

27

BULB (12V,3W)

09471-12103

$3.46

28

.BULB (12V1.7W)

09471-12108

$3.08

29

SCREW

02162-0616B

$2.06

30

SABLE ASSY,SPEE This part replaces 34910-39A10.

34910-39A11

$127.80

31

GUIDE, METER CABLE

34938-38A02

$12.02
