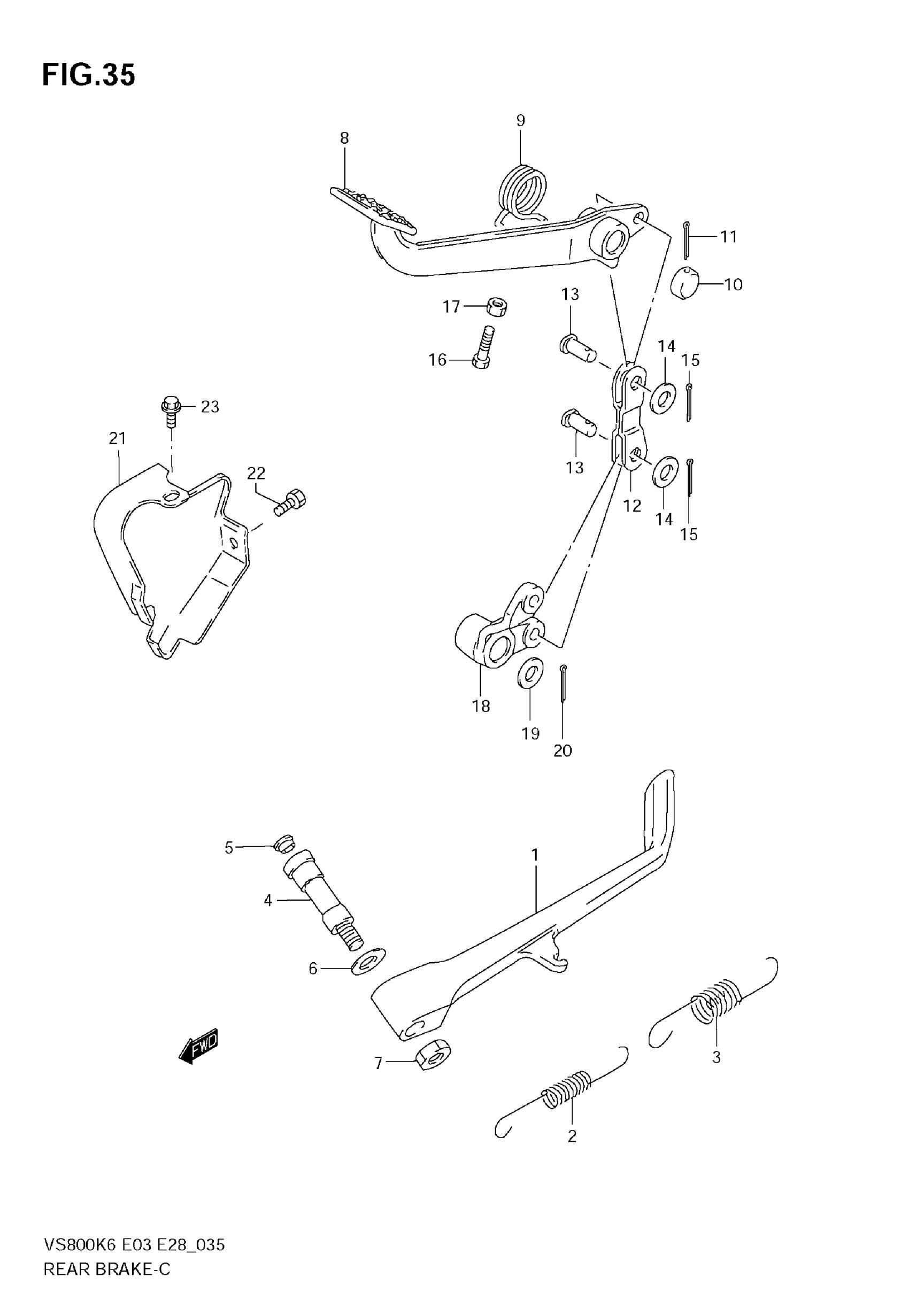

Suzuki VS800 (2009) REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42310-24B01

$117.90

2

SPRING, INNER

09443-13025

$7.38

3

SPRING, OUTER

09443-18021

$6.77

4

BOLT

42341-38B01

$15.43

5

CAP

43575-34500

$1.78

6

SHIM

09181-15158

$2.74

7

NUT

09140-10044

$3.30

8

PEDAL ASSY, BRAKE

43100-38A31

Unavailable

9

SPRING

09448-31034

$6.61

10

CAP

43135-07A02

Unavailable

11

COTTER PIN

04111-3025A

$1.38

12

LINK, BRAKE ROD

43230-38A02

Unavailable

13

PIN

09200-08055

$3.80

14

WASHER

08322-01087

$1.86

15

COTTER PIN

04111-2015A

$1.22

16

BOLT

01500-06207

$1.99

17

.NUT

08310-00067

$1.83

18

ARM, BRAKE PEDAL LH

43260-38A22

Unavailable

19

WASHER

09160-16043

$2.30

20

COTTER PIN

04111-3025A

$1.38

21

COVER, BRAKE

43295-38A31

Unavailable

22

BOLT

09128-06044

$1.38

23

BOLT

01547-06107

$1.67
