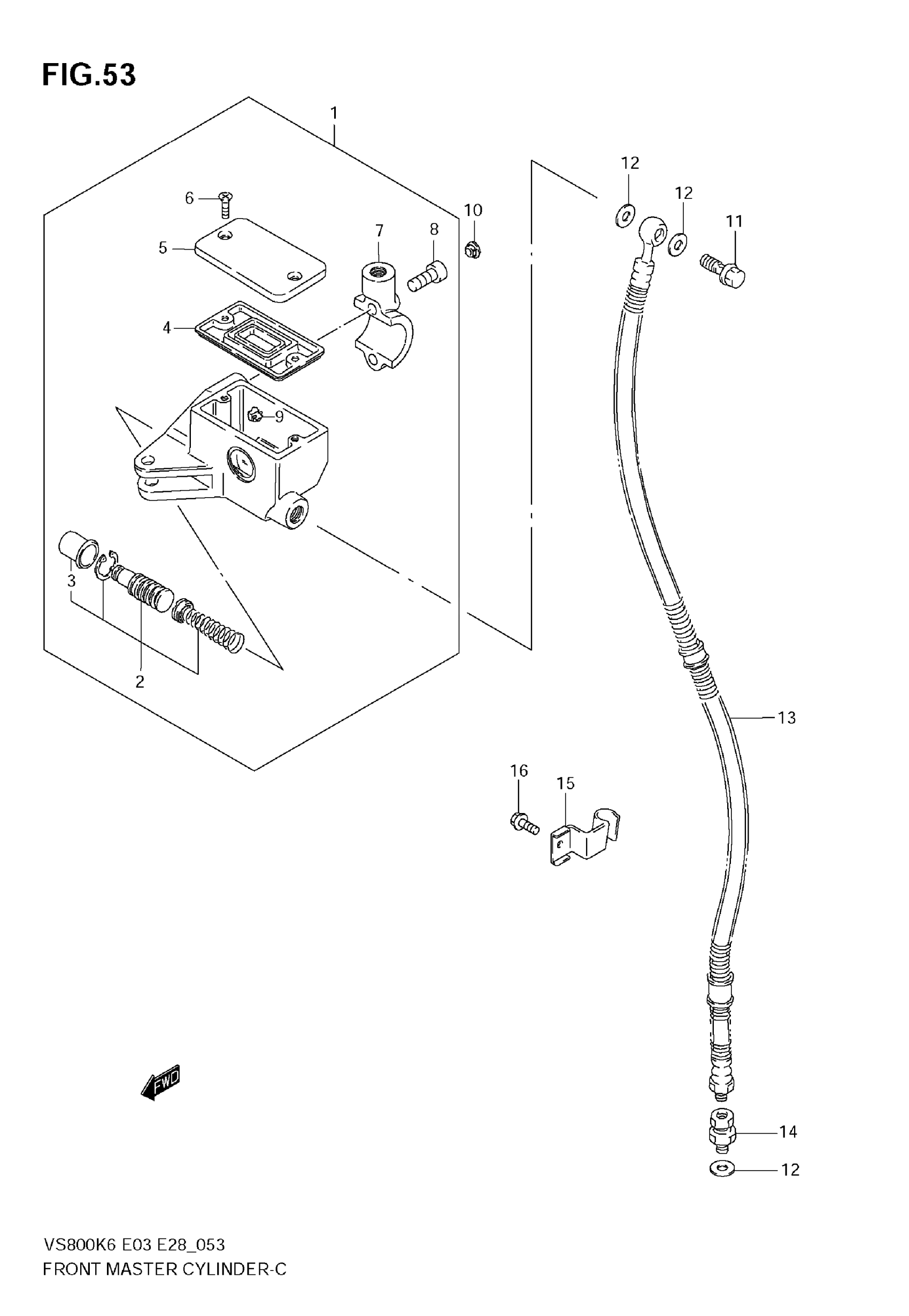

Suzuki VS800 (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-38AA0

Unavailable

2

PISTON & CUP SET

59600-04810

$43.23

3

BOOT

59666-44300

$5.54

4

DIAPHRAGM

59667-49460

$9.36

5

CAP

59669-10F00

$80.65

6

SCREW

02122-04127

$2.03

7

HOLDER

59671-38A00

$35.49

8

BOLT

07130-06207

$2.88

9

PROTECTOR

59664-48B00

$12.43

10

CAP

09250-05008

$3.55

11

BOLT (10X1.00X22)

09360-10061

$6.07

12

WASHER (10X15X1.5)

09161-10009

$1.89

13

HOSE, FRONT BRAKE

59480-38A70

Unavailable

14

ADAPTER, BRAKE HOSE

59290-43500

$40.83

15

GUIDE, BRAKE HOSE

59268-38A30

Unavailable

16

BOLT

01547-06107

$1.73
