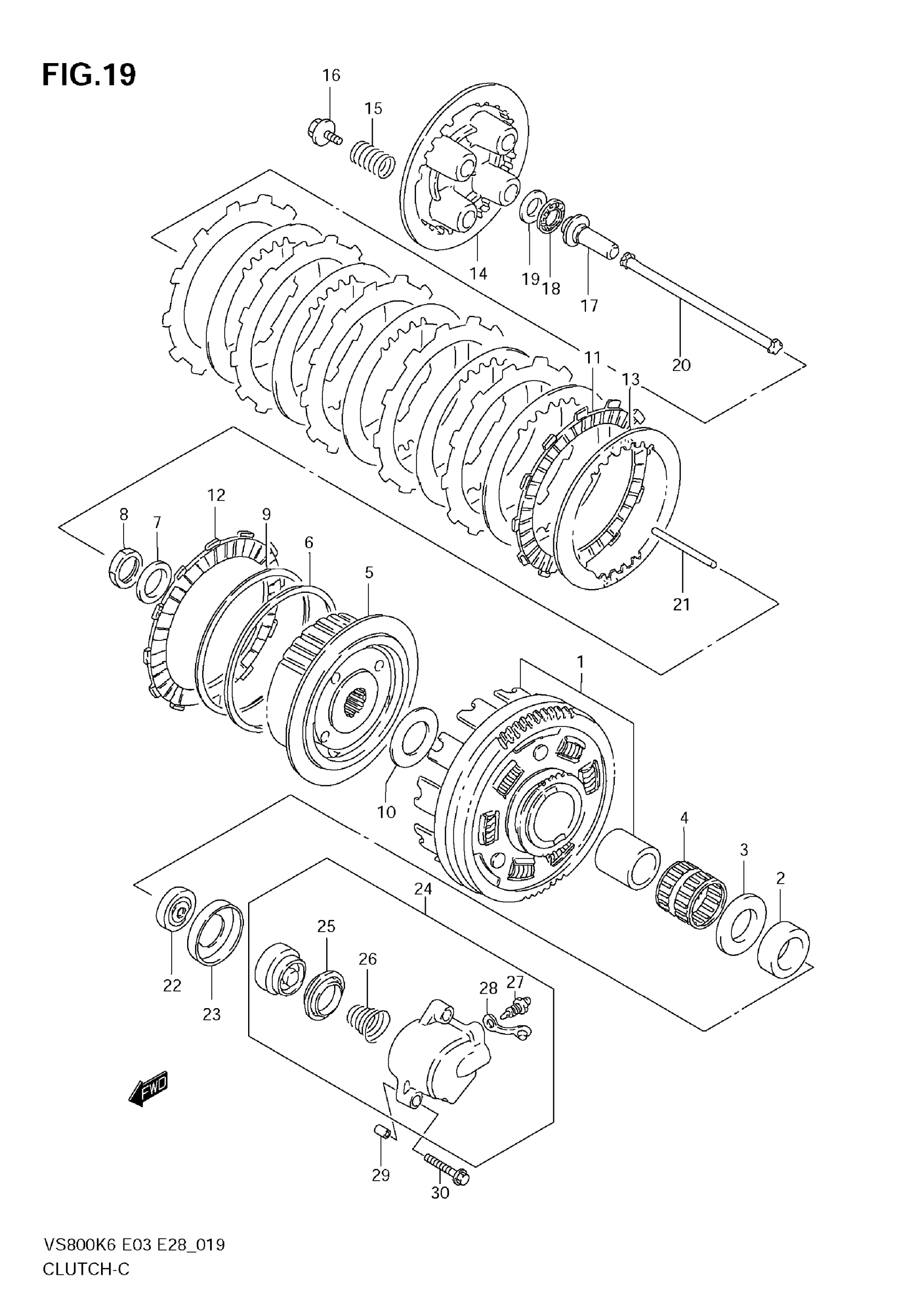

Suzuki VS800 (2009) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38840

$515.82

2

SPACER, INNER (25X38X6.5)

09180-25077

$14.72

3

WASHER (25X50X2.5)

09160-25055

$9.37

4

BEARING (35X40X35.8)

09263-35017

$37.12

5

HUB, SLEEVE

21410-41F00

$161.65

6

SEAT, WAVE WASHER

21471-37400

$8.95

7

WASHER, WAVE

09164-22007

$7.98

8

NUT

09140-22008

$7.98

9

WASHER

09164-00004

$10.39

10

WASHER

09160-25055

$9.37

11

PLATE, DRIVE NO.1

21441-37400

$16.59

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.09

13

PLATE, DRIVEN

21451-14A00

$8.71

14

DISC, PRESSURE

21462-27A00

$65.10

15

SPRING

09440-20013

$3.22

16

BOLT (6X30)

09116-06203

$2.88

17

PIECE, PUSH

23121-31E00

$22.52

18

BEARING (15X28X2)

09263-15003

$7.49

19

WASHER (15.5X28X1)

09160-15045

$3.52

20

ROD, PUSH RH

23110-27A00

$19.86

21

ROD, PUSH LH

23111-38A00

$10.97

22

OIL SEAL (6X34X11) | MODEL K6/K7

09285-06017

$10.48

22

OIL SEAL (6X34X10.5) | MODEL K8/K9

09283-06010

$15.16

23

RETAINER

23117-38A00

$4.75

24

CYLINDER COMP,C | Includes Item(s) 25 - 28 This part replaces 23160-38A00.

23160-38A01

$90.38

25

CUP

23163-05A00

$7.10

26

SPRING

23164-05A00

$3.97

27

BLEEDER

59121-01A00

$7.99

28

CAP

59122-01A00

$3.97

29

PIN

04211-09129

$1.64

30

BOLT

01550-0630A

$2.31
