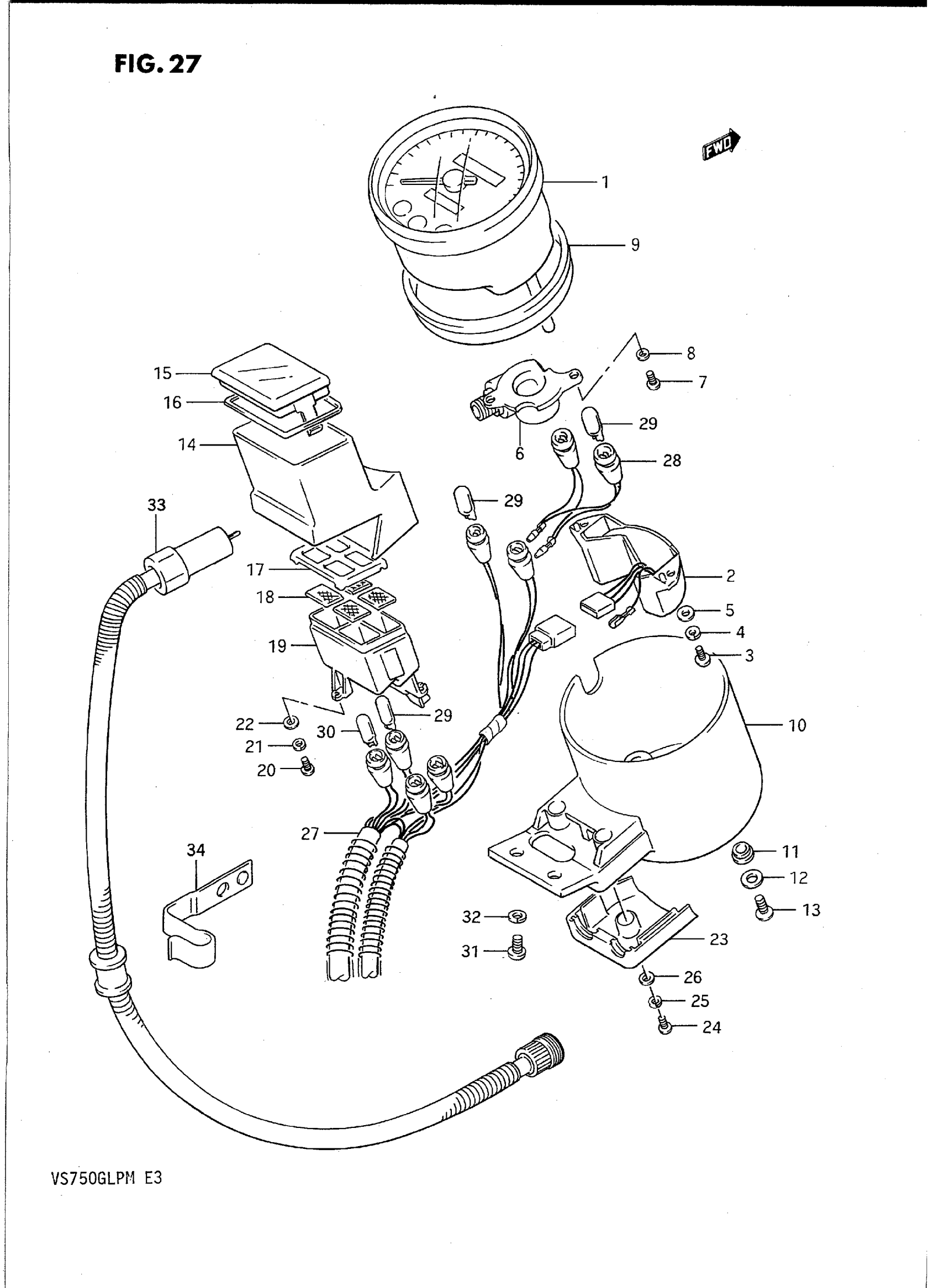

Suzuki VS750GLPM (1991) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-39A60

Unavailable

2

UNIT, WATER TEMP WARNING

34490-39A10

$288.20

3

SCREW This part replaces 02112-03086.

02112-0308A

$1.81

4

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.78

5

WASHER This part replaces 08322-21036.

08322-0103B

$1.70

6

BOX, METER GEAR This part replaces 34131-38B00.

34131-38A00

Unavailable

7

SCREW This part replaces 02112-04108.

02112-04107

$1.55

8

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.86

9

CUSHION, METER

34288-39A00

$11.50

10

COVER, METER

34193-39A20

$212.72

11

CUSHION This part replaces 34189-05A30.

34189-05A31

$6.00

12

WASHER

34181-38A00

$3.72

13

SCREW This part replaces 34164-38A00.

02112-04087

$1.10

14

BOX, PILOT LAMP

36381-39A20

$120.47

15

LENS, PILOT BOX

36393-38A00

Unavailable

16

CUSHION

36395-38A00

$8.32

17

PLATE, PILOT LENS

36386-38A00

Unavailable

18

LENS SET, PILOT LAMP

36300-38810

Unavailable

19

CASE, PILOT LAMP

36382-38B30

$24.57

20

SCREW This part replaces 02112-03086.

02112-0308A

$1.81

21

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.78

22

WASHER This part replaces 08322-21036.

08322-0103B

$1.70

23

COVER, PILOT BOX This part replaces 34152-39A20.

34152-39A21

$83.62

24

SCREW

02112-04087

$1.10

25

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.86

26

WASHER This part replaces 08322-21047.

08322-01047

$1.88

27

SOCKET, METER NO.1 This part replaces 34173-39A20.

34173-39A21

Unavailable

28

SOCKET, METER NO.2

34174-39A10

Unavailable

29

BULB (12V,3W)

09471-12103

$3.46

30

.BULB (12V1.7W)

09471-12108

$3.08

31

SCREW

02112-06167

$1.43

32

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

33

CABLE ASSY, SPEEDOMETER

34910-39A00

Unavailable

34

GUIDE, METER CABLE This part replaces 34938-38A20.

34938-38A02

$12.02
