1991 Suzuki VS750GLPM Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1991 Suzuki VS750GLPM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

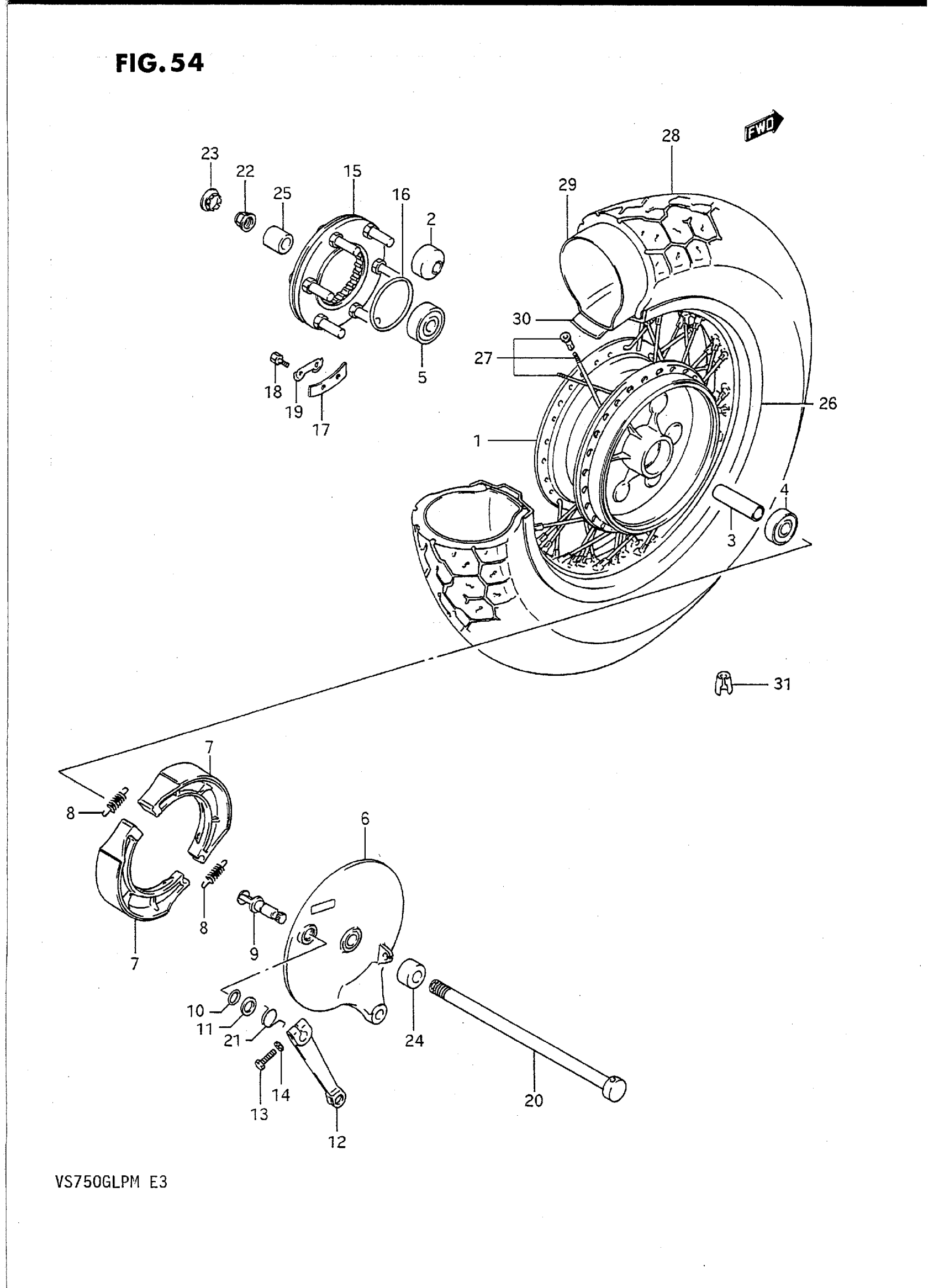

1991 Suzuki VS750GLPM Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB SET, REAR WHEEL | Includes Item(s) 2 This part replaces 64100-07860.

64100-07861

1
Out of stock

2

BUSHING

09319-12019

6
Out of stock

3

SPACER, REAR HUB (L:80)

09180-17091

1
Out of stock

4

1

$17.05

In stock

5

BEARING, LH

08143-63037

1

$21.98

In stock

7

2

$60.67

In stock

8

SPRING

55420-30000

2
Out of stock

9

CAM, BRAKE

64440-38A00

1
Out of stock

11

1

$2.78

In stock

12

LEVER, BRAKE CAM

64451-38A01

1

$64.65

In stock

13

1

$2.10

In stock

14

1

$2.28

In stock

15

JOINT, HUB DRIVEN This part replaces 64680-07A01.

64680-45113

1
Out of stock

16

O RING

09280-65003

1
Out of stock

17

WASHER, THRUST

64677-45110

3
Out of stock

18

BOLT

09119-06049

6
Out of stock

19

WASHER

09169-06030

3
Out of stock

20

AXLE, REAR (L:302) This part replaces 64711-38A10.

64711-38A11

1
Out of stock

21

SPRING, CAM

09448-33006

1
Out of stock

22

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

23

CAP, RH

64791-38B00

1

$24.98

In stock

24

1

$26.50

In stock

25

SPACER, LH

64772-34201

1
Out of stock

26

RIM, WHEEL (MT3.00X15 M/C) | MODEL J This part replaces 65311-38A00.

65311-38A02

1
Out of stock

26

RIM, WHEEL (MT3.00X15 M/C) | MODEL K/L/M This part replaces 65311-38A01.

65311-38A02

1
Out of stock

27

SPOKE SET

65320-38A01

1
Out of stock

28

TIRE, REAR (140/90-15 M/C 70H) (BRIDGESTONE) | MODEL J This part replaces 65100-38A40.

65100-38A41

1
Out of stock

28

TIRE, REAR (140/90-15 M/C 70H | MODEL K/L/M

65100-38A41

1
Out of stock

29

1

$68.65

In stock

30

PROTECTOR

65261-38A00

1
Out of stock

31

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

1
Out of stock

31

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

1
Out of stock
