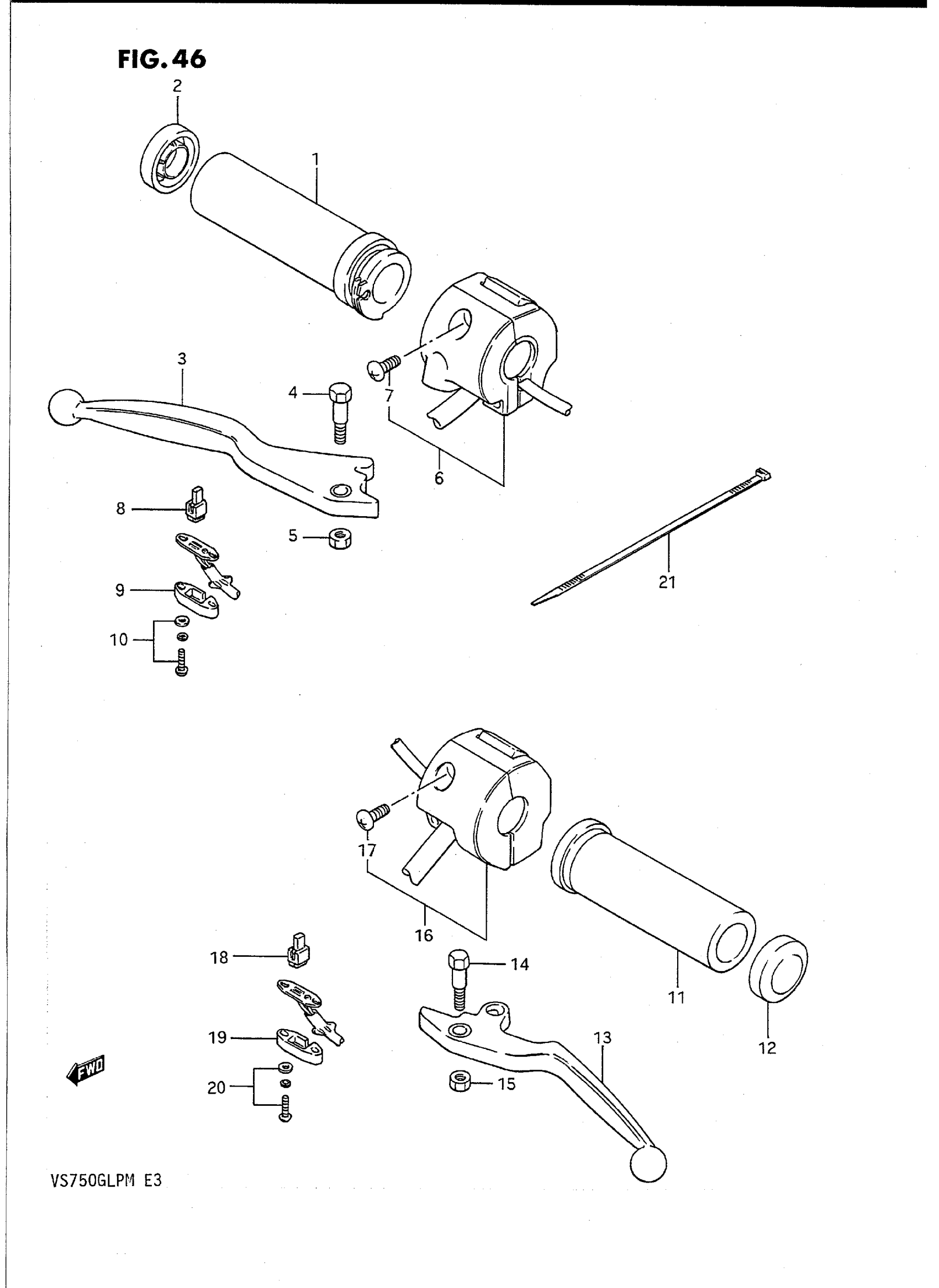

Suzuki VS750GLPM (1991) HANDLE SWITCH (MODEL J) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-38A02

Unavailable

2

CAP

57216-38A00

$6.61

3

LEVER, BRAKE This part replaces 57420-38A00.

57420-38B00

Unavailable

4

BOLT This part replaces 57431-38A00.

57431-38A10

$10.42

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

6

SWITCH ASSY, HANDLE RH | Includes Item(s) 7 - 10

37200-39A20

Unavailable

7

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

8

HOLDER

57465-18601

$3.97

9

COVER

57481-38A00

Unavailable

10

SCREW

57484-38A00

Unavailable

11

GRIP, LH

57210-38A02

Unavailable

12

CAP

57216-38A00

$6.61

13

LEVER, CLUTCH This part replaces 57620-38A00.

57621-38A02

$18.76

14

BOLT This part replaces 57431-38A00.

57431-38A10

$10.42

15

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

16

SWITCH ASSY, HANDLE LH | Includes Item(s) 17 - 20 This part replaces 37400-39A20.

37400-39A80

Unavailable

17

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

18

HOLDER

57465-18601

$3.97

19

COVER

57481-38A10

Unavailable

20

SCREW

57484-38A00

Unavailable
