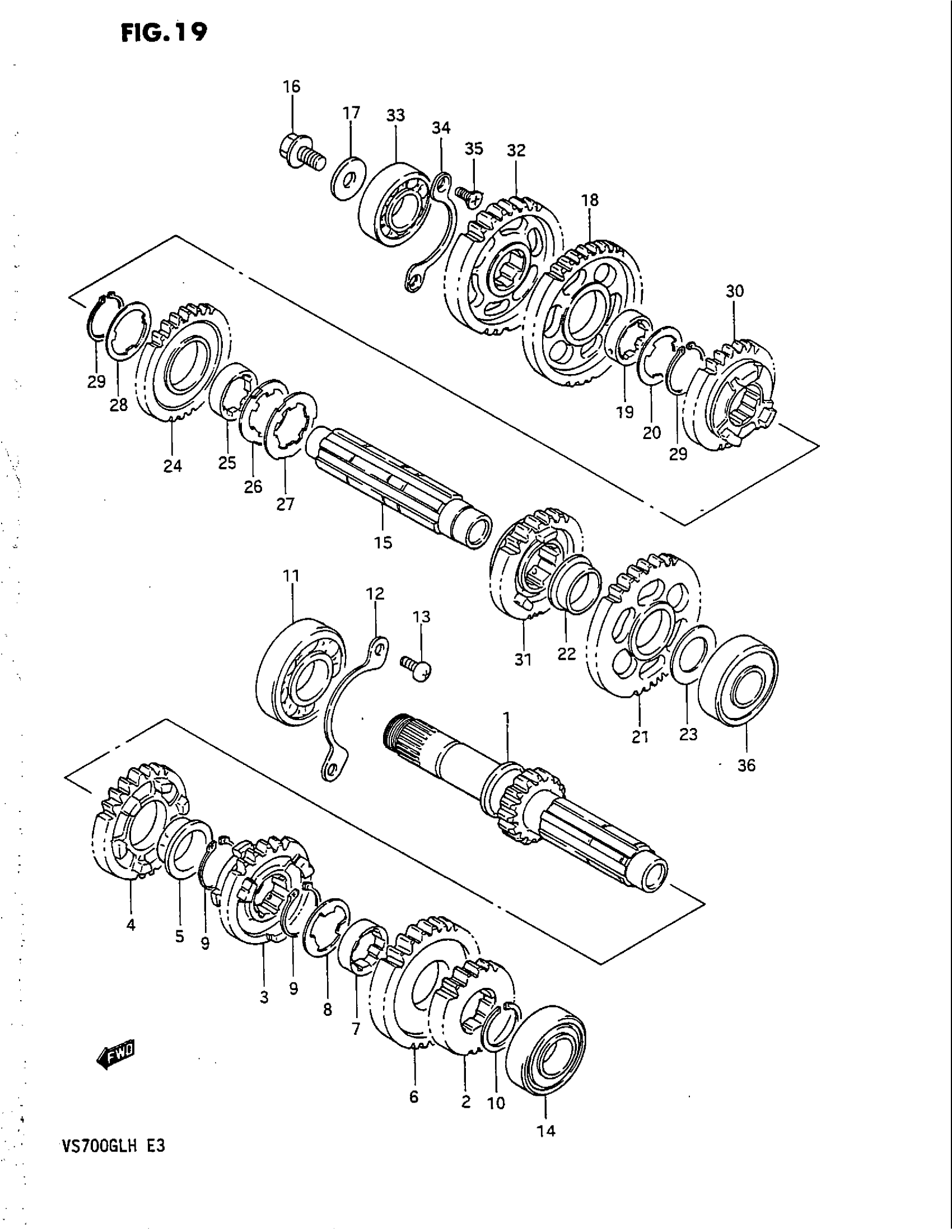

Suzuki VS700GLEF (1987) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14) This part replaces 24100-38812.

24100-38813

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-38A01

Unavailable

3

GEAR, 3RD DRIVE (NT:22) This part replaces 24231-38A01.

24231-45C00

Unavailable

4

GEAR, 4TH DRIVE (NT:25)

24241-38A00

Unavailable

5

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$26.85

6

GEAR, 5TH DRIVE (NT:27) This part replaces 24251-38A00.

24251-38A01

Unavailable

7

BUSH,6TH DRIVE GEAR This part replaces 24252-38A00.

24252-38A10

Unavailable

8

WASHER

09167-25016

$4.03

9

SNAP RING

09380-25003

$2.80

10

CIRCLIP

09380-25010

$2.80

11

BEARING, RH

09262-25080

$42.13

12

RETAINER

24741-38A00

Unavailable

13

SCREW This part replaces 02112-06126.

02112-0612A

$1.43

14

BEARING, DRIVE SHAFT, LH This part replaces 09262-20081.

09262-20139

$48.87

15

DRIVE SHAFT This part replaces 24131-38A02.

24131-38A03

Unavailable

16

NOZZLE,DRIVE SHAFT

24135-38A02

$10.35

17

WASHER

08211-10305

$4.62

18

GEAR, 1ST DRIVEN (NT:32)

24311-38A01

Unavailable

19

BUSH

24332-07A00

Unavailable

20

WASHER, LH

09167-28001

$5.00

21

GEAR, 2ND DRIVEN (NT:31)

24321-38A00

Unavailable

22

BUSH

09301-22002

Unavailable

23

WASHER

08211-20341

$3.05

24

GEAR, 3RD DRIVEN (NT:27) | MODEL G This part replaces 24331-38A01.

24331-38A02

Unavailable

24

GEAR, 3RD DRIVEN (NT:27) | MODEL H

24331-38A02

Unavailable

25

BUSH

24332-07A00

Unavailable

26

LOCK WASHER, RH

09169-28001

$4.18

27

LOCK WASHER, LH

09167-28002

$5.17

28

WASHER

09167-28001

$5.00

29

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.28

30

GEAR, 4TH DRIVEN (NT:25) This part replaces 24341-38A01.

24341-45C00

Unavailable

31

GEAR, 5TH DRIVEN (NT:23) This part replaces 24351-38A01.

24351-38A03

Unavailable

32

GEAR, REDUCTION DRIVE (NT:30)

24621-38A00

Unavailable

33

BEARING, RH

09262-20073

$21.00

34

RETAINER

24751-38A00

Unavailable

35

SCREW This part replaces 02122-06128.

02122-06127

$1.83

36

BEARING, LH

09262-20080

$42.13
