1987 Suzuki VS700GLEF Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

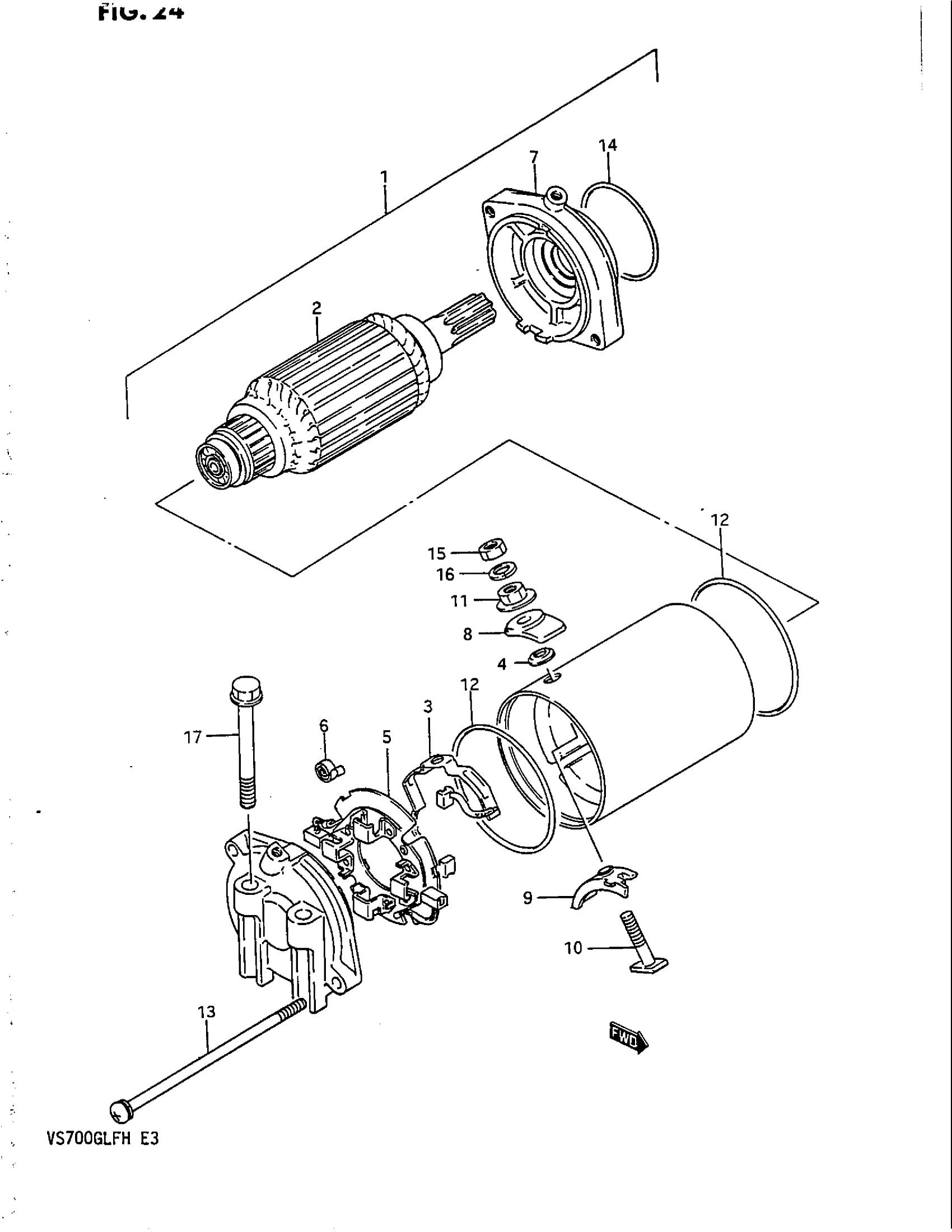

1987 Suzuki VS700GLEF Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING | MODEL G This part replaces 31100-38A00.

31100-45C02

1
Out of stock

1

MOTOR ASSY,STARTING | MODEL H; Includes Item(s) 2 - 14 This part replaces 31100-38A10.

31100-45C02

1
Out of stock

2

ARMATURE This part replaces 31310-38A00.

31310-24B01-H17

1
Out of stock

3

BRUSH TERMINAL SET (+) | MODEL G This part replaces 31131-38A00.

31131-48B00

1
Out of stock

3

BRUSH TERMINAL SET (+) | MODEL H

31131-48B00

1
Out of stock

4

O RING | MODEL G

31143-38300

1
Out of stock

4

GASKET | MODEL H

31143-48B00

1
Out of stock

5

BRUSH HOLDER SET (-) This part replaces 31132-38A00.

31132-48B00

1
Out of stock

6

SPRING, BRUSH

31135-65010

4
Out of stock

7

BRACKET SET

31150-38A00

1
Out of stock

8

BUSHING | MODEL G

31172-38A10

1
Out of stock

8

BUSHING | MODEL H

31172-48B10

1
Out of stock

9

BUSHING | MODEL G

31172-38A20

1
Out of stock

9

BUSHING | MODEL H

31172-48B20

1
Out of stock

10

BOLT | MODEL G This part replaces 31130-38A00.

31281-31D00

1
Out of stock

10

BOLT | MODEL H

31130-48B00

1
Out of stock

11

.NUT | MODEL G This part replaces 08310-22067.

08310-00067

1
Out of stock

11

NUT | MODEL H

31145-48B00

1
Out of stock

12

O RING

31264-44110

2
Out of stock

13

BOLT This part replaces 31281-38A00.

31281-31D00

2
Out of stock

14

O RING

31156-38A00

1
Out of stock

15

NUT This part replaces 08310-11066.

08310-0006A

1
Out of stock

16

1

$1.97

In stock

17

BOLT

01547-06607

2
Out of stock
